LYS-LS3-12XS

This is a Layer 3 switch with 12 × SFP+ (10 Gigabit) ports. It’s designed to serve as an aggregation switch and supply data to other switches. It doesn’t have built-in PoE, but it does support advanced features such as OSPF (Open Shortest Path First) and VCS (Virtual Chassis Stacking).

Product Overview

The Lysora LS3-12XS is multi-gigabit Layer 3 switch that is designed for extremely large networks, such as university campuses or multi-tenant commercial buildings. It has 12 × 10G SFP+ ports and a switching capacity of 240 Gbps.

This switch is meant to serve as the backbone of your network – feeding into more basic switches that will ultimately connect to client devices. It does NOT include PoE, since it’s not designed to connect directly to clients.

As with all of Lysora’s equipment, you can manage it remotely through the Lysora Cloud Portal.

This is a layer 3 switch with a large packet buffer, improved switching capacity, and better forwarding rate compared with other Lysora switches. It also supports OSPF (Open Shortest Path First) and VCS (Virtual Chassis Stacking) – which are advanced features for enterprise level networks. You can see a summary below of all features supported on this model.

This switch also supports the following features:

  • DHCP Snooping – Set certain ports as trusted, which means only devices on those ports can assign DHCP addresses to the rest of your network (improves security).
  • Loop Prevention – Block the signal from any ports that are looped, preventing the network from crashing.
  • STP (spanning tree protocol) – Supports STP, RSTP, and MSTP for automatic failover, improving network redundancy.
  • Packet Capture & Detailed Syslog – Run packet captures directly on the switch, giving you flexibility for troubleshooting network issues.
  • Static Routing – Add static routes so that devices from separate VLANs can communicate with each other without needing to travel through the router.
  • DHCP Server – This switch can act as a DHCP server and hand out IP addresses to devices that are connected to it.
  • OSPF – The OSPF (Open Shortest Path First) protocol allows the switch to discover the shortest path for routes by itself, and automatically re-route if a link goes down.
  • VCS – As its name implies, Virtual Chassis Stacking lets you join multiple switches together and manage them as if they were a single switch.

Features – Layer 3 Managed PoE Switch with 12 x SFP+ (10 G) Ports

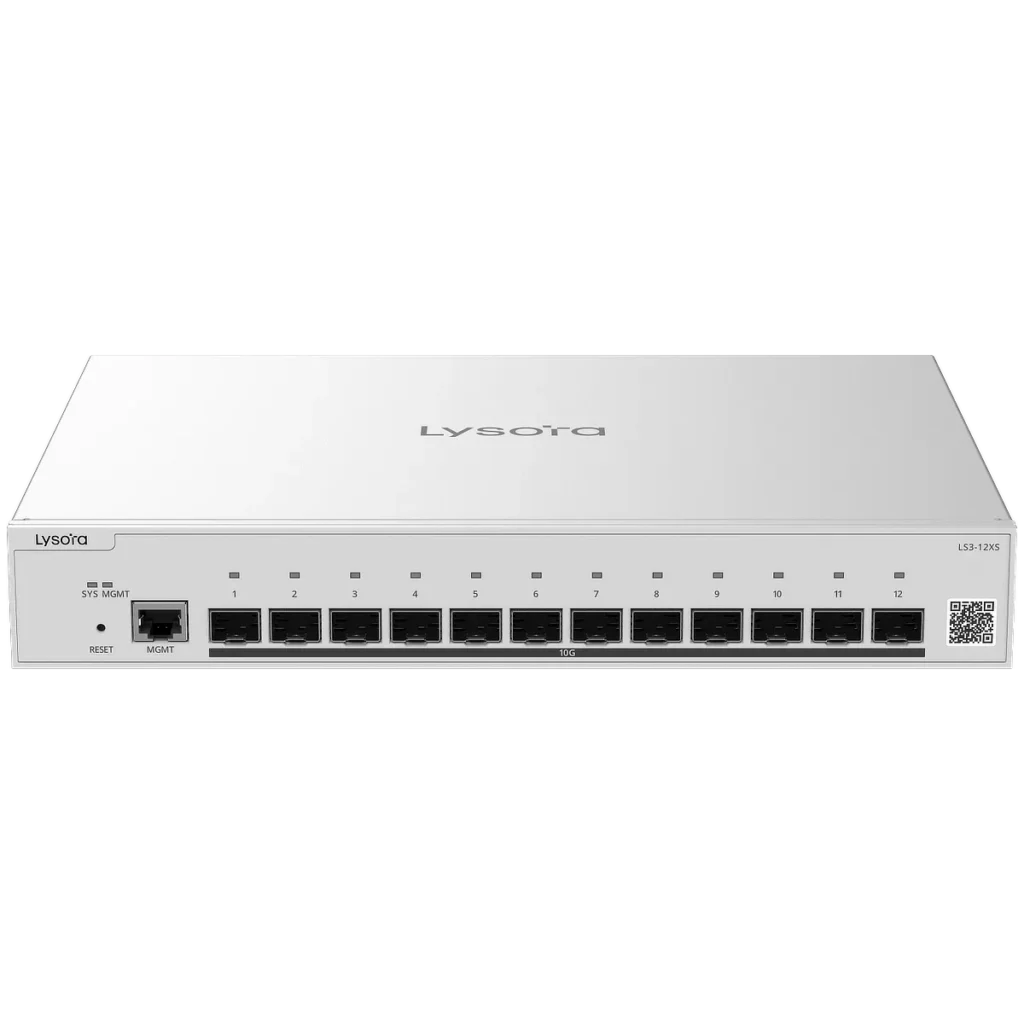

  • 12 x 10G SFP+ Ports
  • 1 x 10/100BASE-T RJ45 MGMT Port
  • Fixed Power Supply (100-240 V AC)
  • Maximum Power Consumption < 44W

Specification

General Specifications
Product Model LS3-12XS
Device Description 12*SFP+ L3 Managed Switch
Dimensions 300 mm x 232 mm x 44 mm (11.81 in. x 9.13 in. x 1.73 in.)
Weight 3.04 kg (6.7 lbs)(with packaging materials), 2.26 kg (4.98 lbs) (without packaging materials)
Enclosure Material Metal
Mounting Rack/Desk
Warranty 3 years
Hardware & Performance
Switching Layer Layer 3 (OSPFv2/OSPFv3, IPv4 and IPv6 static routing, 500 IPv4 / 500 IPv6 static routes)
1GbE SFP Ports N/A (all-10G model)
1GbE RJ45 Ports N/A (all-10G model)
10G SFP+ Ports 12
PoE/PoE+ Out Ports N/A (non-PoE model)
Switching Capacity 240 Gbps
Forwarding Rate 178.56 Mpps
MAC Address Table 32,000 entries
Jumbo Frame (MTU) 9216 bytes
MTBF 400,000 hours
Power & Environment
PoE Budget N/A (non-PoE model)
Max. Power Consumption 44 W
Operating Temperature 0°C to 50°C (32°F to 122°F)
Cooling 2 × Fixed fans, air cooling, left-to-right airflow
Management & Compliance
Management Options Cloud, App and Web GUI management
Key Features OSPFv2/OSPFv3 dynamic routing; DHCP server and DHCP relay; 12,000-entry IPv4 routing table; 2000 ARP entries; full IGMPv3 snooping
NDAA Compliant Yes
Certifications FCC, ISED, cTUVus, TEC
