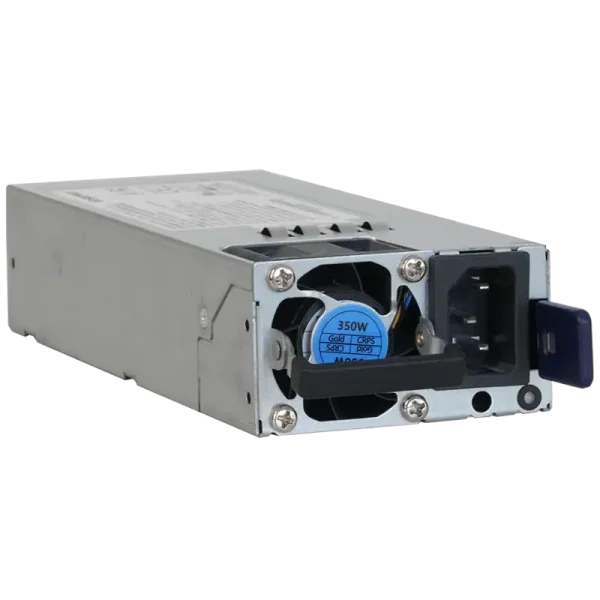

PWR-DC12-350A-IN
This is a power supply for Uniview 64ch and 128ch NVRs. It can be used as a redundant power supply, ensuring that your system is operational in the event that the original power supply stops working.
Description
350W Power Accessories Module for NVR508 & NVR516
- Works with NVR508-32E-R, NVR508‑64E‑R‑IQ, and NVR516-128E-R.
- 89% gold power efficiency
- Built-in fan for heat dissipation
- Supports input voltages between 90～264V AC
Specification
| Model | PWR-DC12-350A-IN |
| AC Input | |
| Voltage | 90～264V AC |
| Frequency | 47～63Hz |
| Power Factor | ≥0.95 |
| Input Current | ≤6.3A@100-240VAC |
| Input Protection | Input undervoltage, Input overvoltage |
| DC Output | |
| Voltage/Current | +12VDC/29A, +12VStandby/2.1A |
| Output Power | 350W |
| Output Efficiency | ≥89%, 220V AC/29A |
| Line Regulation | ±5% |
| Load Regulation | ±5% |
| Regulated Voltage Accuracy | ±5% |
| Dynamic Response Overshoot | ±5% |
| Current Sharing Rate | ±5% |
| Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection |
| Other | |
| Indicator light | Normal: green on, Abnormal: Yellow on |
| Working Temperature | 0~50℃ |
| Storage Temperature | -40~70℃ |
| Working Humidity | 10%~90% |
| Heat dissipation | Ventilating fan design, heat emission at back |
| Dimension (D × H × W) | 185mm×40mm×73.5mm |
| Certification | |
| EMC standards | EN55032, EN 61000-3-2, EN55035 |
| NEBS standards | SR-332 ISSUE 2 |
| Approved standards | CB, FCC, UL |
