Product Overview
The TR-JB07-D-IN is a square metal junction box that works two ways. Uniview bullet cameras (the IPC23xx series, among others) mount straight onto it. For dome and turret cameras, it goes behind a wall bracket: the camera sits on a TR-WM03-D-IN or TR-WM03-B-IN, which bolts to the TR-JB07-D-IN on the wall. Uniview sells that pairing as a kit (TR-JB07/WM03); we carry the two parts separately.
Either way, the box gives you room for the RJ45 connection and spare cable, and two ¾-inch NPT holes in the bottom for conduit. It also works with the TR-UP06-C-IN pole mount and the TR-UC08-C corner bracket.
Specifications

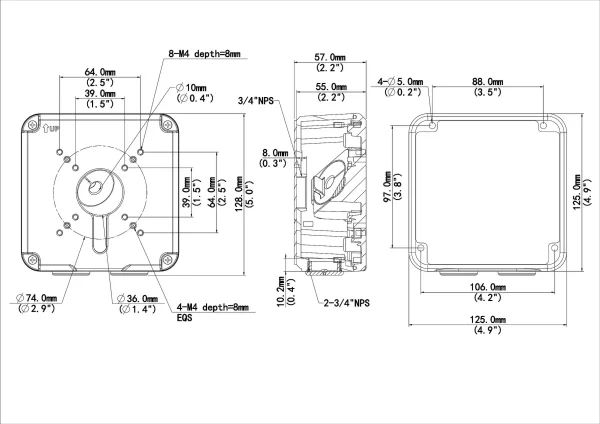

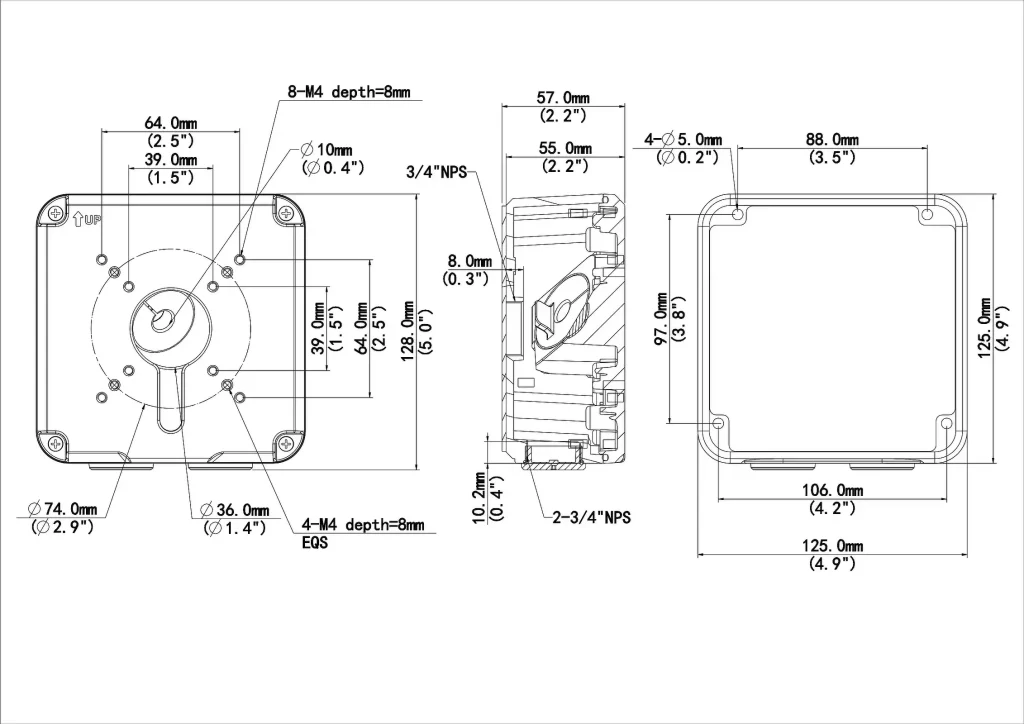

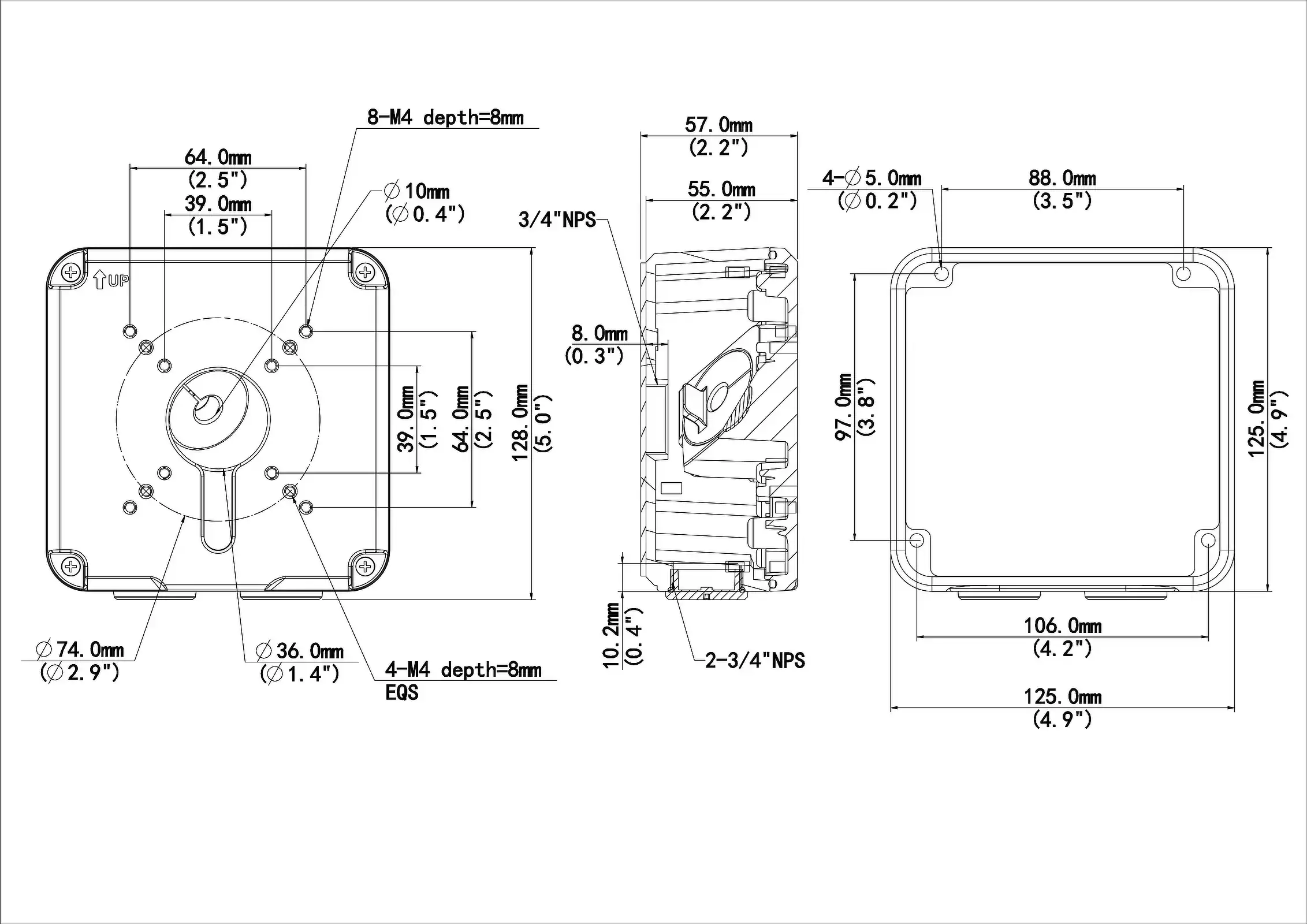

- Dimensions: 125 × 125 × 55 mm (4.92 × 4.92 × 2.17 in)
- Weight: 0.75 kg (1.65 lb)
- Material: Aluminum alloy
The Compatible Cameras tab lists the cameras that work with this part.

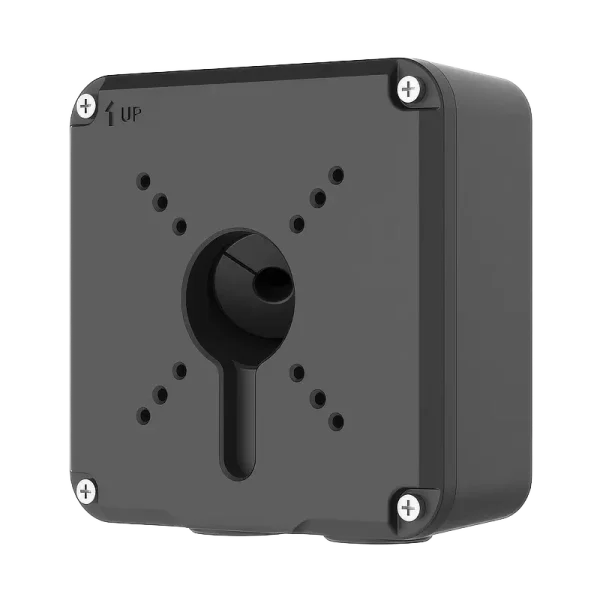

This is the black version of the TR-JB07-D-IN, for black cameras. The fit and specifications are the same.
Not sure which bracket you need? Our Uniview accessories guide explains how the different bracket types fit together, and Uniview’s Bracket Quick Selection Table matches each camera to its brackets.
