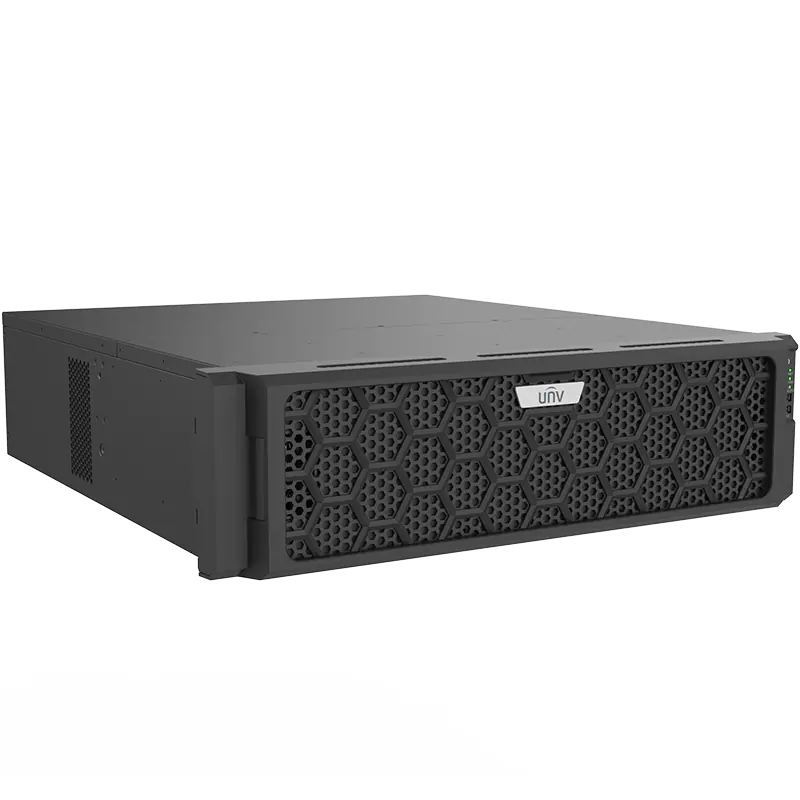

NVR516-128E-R

This 128ch NVR from Uniview supports up to 16 hard drives with optional RAID configuration. It supports up to 32-megapixel cameras and HDMI 1 and 2 can be independently configured for displaying a different layout on two monitors.

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5
Categories: Uniview NVR

Product Overview

This massive 128-ch NVR from Uniview is designed for apartment buildings, warehouses – basically any large project where you’ll have dozens of security cameras monitoring the property. It’s quite large and takes up 3U in a network rack.

You can add a secondary power supply for redundancy to ensure continuous operation. If one of the power supplies fails, the second one will keep the unit powered up.

The HDD slots are also hot-swappable. If a drive fails, you can remove it while the NVR is running and swap in a new one.

Features – 16 HDDs 128-ch 3U Network Video Recorder

  • 128-channel IP video input, up to 32MP recording resolution
  • Ultra 265, H.265 and H.264 video formats
  • 2 HDMI and 2 VGA outputs: HDMI1 up to 8K (7680 × 4320), HDMI2 up to 4K, with two independent display groups
  • 16 SATA bays, up to 16 TB per drive, hot-swappable
  • RAID 0, 1, 5, 6, 10, 50 and 60, with N+1 hot spare
  • 2 Gigabit network ports, 640 Mbps incoming bandwidth and up to 128 remote users
  • 16 alarm inputs, 10 alarm outputs and 12 V power output
  • Optional redundant power supply
  • Optional HDMI decoding cards for 4 or 7 extra HDMI outputs
  • ANR technology to protect recordings when the network is disconnected
  • ONVIF compatible and NDAA compliant

NVR516-128E-R vs. NVR824-256R – Which Enterprise NVR Do You Need?

The NVR516-128E-R and the NVR824-256R both have hot-swappable drives, RAID 0 to 60, N+1 hot spare and an optional redundant power supply. The main differences are capacity and resolution:

  • Camera channels: 128 (NVR516) vs. 256 (NVR824)
  • Max recording resolution: 32MP (NVR516) vs. 12MP (NVR824)
  • Hard drive bays: 16, up to 256 TB total (NVR516) vs. 24, up to 384 TB total, plus 2 miniSAS ports for expansion enclosures (NVR824)
  • Network ports: 2 Gigabit (NVR516) vs. 4 Gigabit (NVR824)
  • Incoming bandwidth: 640 Mbps (NVR516) vs. 768 Mbps (NVR824)
  • HDMI outputs: 2, with HDMI1 up to 8K (NVR516) vs. 2, up to 4K (NVR824)
  • Size: 482 × 533 × 131 mm, 3U (NVR516) vs. 484.6 × 533 × 175.5 mm, 4U (NVR824)

Choose the NVR516-128E-R for up to 128 cameras, including 16MP and 32MP models. Choose the NVR824-256R for the largest projects, with up to 256 cameras and room to add disk enclosures. For up to 64 cameras, see the NVR508-64E-R-IQ.

Specification

Model NVR516-64E-R NVR516-128E-R
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64 x 720P@30 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72 x 720P@30, 128 x D1
Decoding Capability Description The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth 640Mbps
Outgoing Bandwidth 640Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 64-ch 128-ch
RCA Audio Input 1-ch
Video/Audio Output
HDMI Output HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 2-ch
Liveview Display 1/4/6/8/9/16/25/36/64
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local 16-ch
Smart
VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Smart by IPC All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 16 SATA Interfaces
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap Support
External Interface
Network Interface 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485 1
RS232 1
Alarm In 16-ch
Alarm Out 10-ch
eSATA 1
Power Output 12 V
Power Supply AC 100 to 240 V
Power Switch Support
Redundant Power Supply Support
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 50W
Dimensions
Weight (without HDD) ≤ 6.5Kg (14.3lb)
Height 3U
Dimensions 482mm × 533mm × 131mm (19.0″×21.0″×5.1″)
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
