Product Overview

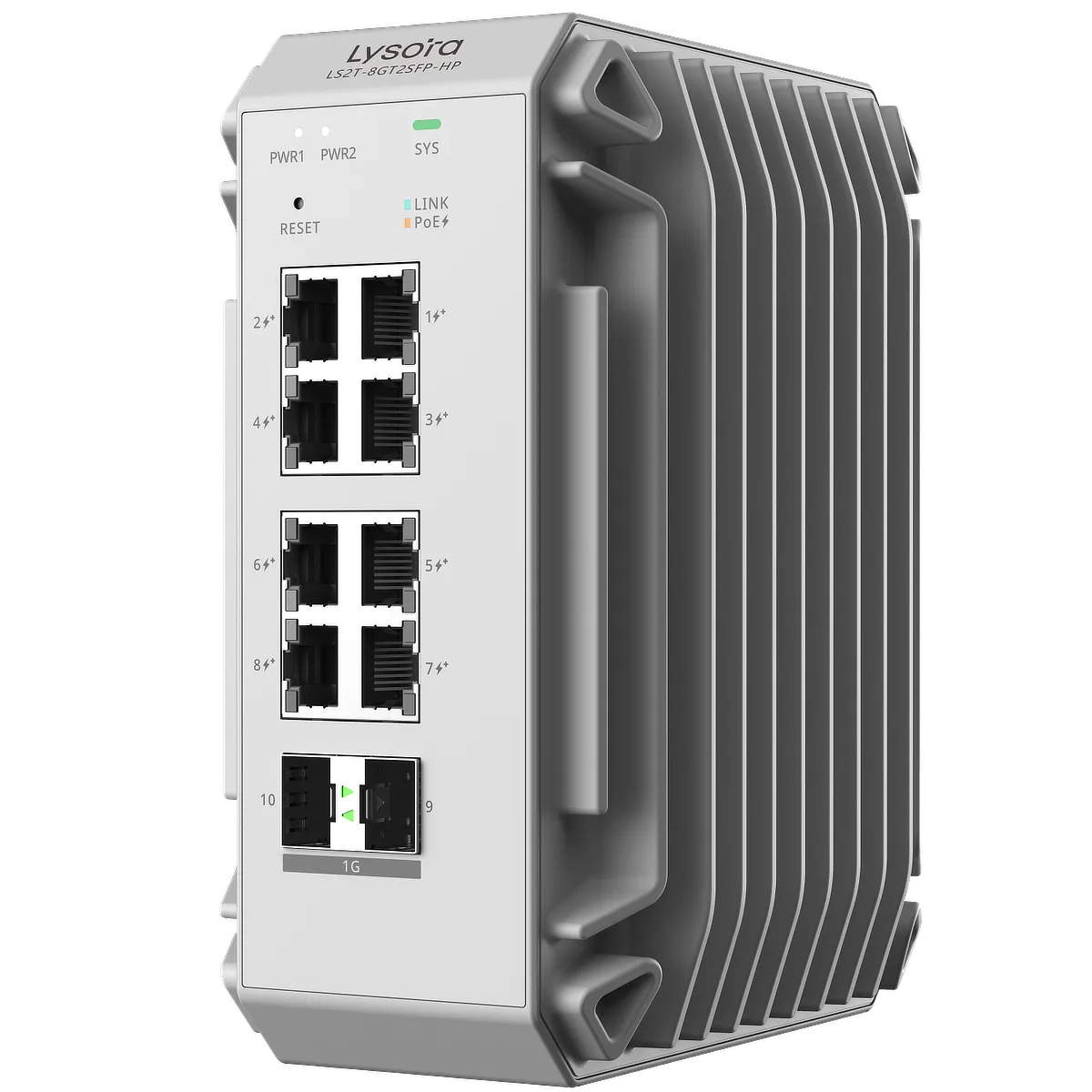

The Lysora LS2T-8GT2SFP-HP is an 8-port managed industrial PoE switch with a 240 W PoE budget. All eight of the PoE ports support PoE+ (30W). You can manage it remotely through the Lysora Cloud Portal, letting you reboot individual ports and monitor the PoE usage of each port.
This is a hardened version of the LS2 series switches, rated for -40°C all the way up to +80°C (with 400 LFM ventilation) – along with an IP40 weather rating for work in harsh environments. It also has a heavy surge protection rating of 6 kV – which can help protect connected equipment from lightning and electrical surges. This makes it suitable for outdoor enclosures, parking lots, warehouses, and construction sites.
Note: This switch does not include a power adapter. We recommend the NDR-240-48 DIN-rail power supply.
This switch also supports the following features:
- DHCP Snooping – Set certain ports as trusted, which means only devices on those ports can assign DHCP addresses to the rest of your network (improves security).
- Loop Prevention – Block the signal from any ports that are looped, preventing the network from crashing.
- Long-distance PoE – Allows you to connect a device up to 250 m (820 ft), but lowers the speed of the port to 10 Mbps.
- PoE Watchdog – Will automatically reboot the PoE port if no traffic is detected after 90 – 1800 seconds (adjustable).
- STP (spanning tree protocol) – Supports STP, RSTP, and MSTP for automatic failover, improving network redundancy.
- Packet Capture & Detailed Syslog – Run packet captures directly on the switch, giving you flexibility for troubleshooting network issues.
Features – 8-Port Industrial Layer 2 Managed PoE Switch with 2 x SFP Ports
- L2 Industrial Managed Switch
- IP40, rated for -40° to +80°C operating temperatures
- 8-Port RJ45 Gigabit PoE/PoE+
- 2-Port SFP
- 240W PoE Power budget
