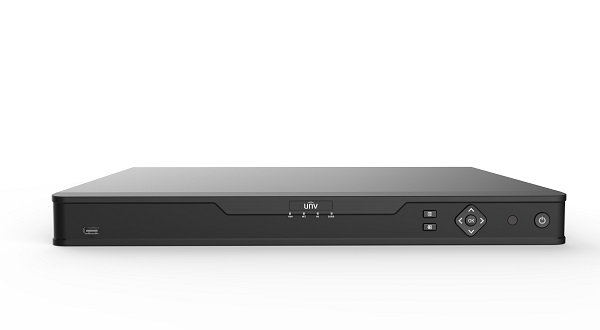

NVR304-32E-B
32 CH | No PoE | 4xSATA | H.265/H.264 | P2P | 2xHDMI/VGA w/Independent Layouts | 16/4 Alarm In/Out | Dual NIC | Up to 12MP
Description
Features – 16/32 Channel 4 HDDs 4K NVR
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840×2160) resolution
- HDMI1/VGA and HDMI2 independent outputs provided
- Up to 12 Megapixels resolution recording
- 4 SATA HDDs, Up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk)
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support Live view, playback, PTZ Control, Camera setting via local network
- Support Real-time Smart Function
- Support Day and Night time Smart Function
Specification
| Model | NVR304-16E-B | NVR304-32E-B |
| Video/Audio Input | ||
| IP Video Input | 16-ch | 32-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 320Mbps | |
| Outgoing Bandwidth | 320Mbps | |
| Remote Users | 128 | |
| Protocols | IPv4, IPv6, HTTP, SMTP, SNMP, RTSP, P2P, UPnP, NTP, DHCP, PPPoE | |
| General Function | IP Address Filtering, ARP Protection, Cyber Security Data Protection | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI2: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25 |
| Hard Disk | ||
| SATA | 4 SATA interfaces | |
| Capacity | up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk) | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Object removal, Object abandon, Audio detection, Defocus detection, Scene change detection, Auto tracking |
|
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |
| External Interface | ||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 x RS485 | |
| USB Interface | Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
| Alarm In | 16-ch | |
| Alarm Out | 4-ch | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 12W (without HDD) |
|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 440mm × 344mm× 50mm (17.3″ × 13.5″×2.0″) | |
| Weight (without HDD) | ≤ 3.14Kg (6.92lb) | |
