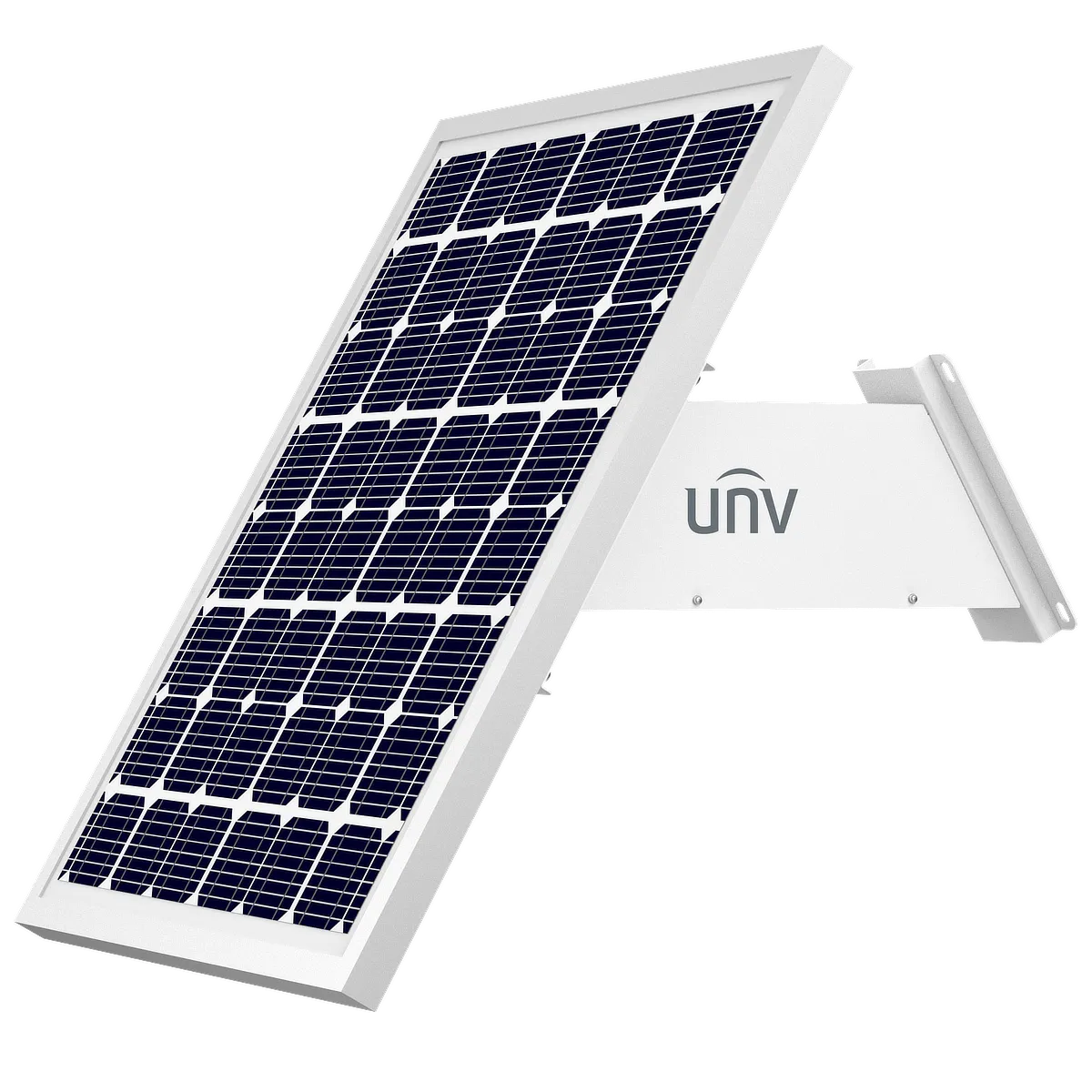

The SLR-B320P60 is a 60W solar panel and a 320Wh battery – combined into a simple metal housing that’s easy to install using the included loop ring clamps. It comes with an O&M module, which gather voltage information from the battery and displays it on the camera’s OSD during live view.
There’s also a built-in heating module for the battery, helping to protect the battery life and ensure stable charging.
However, it’s important to be aware that during conditions of consistently cloudy weather, the solar panel will not be able to charge the battery. Once the battery becomes empty, the camera will be offline until the sun comes back.

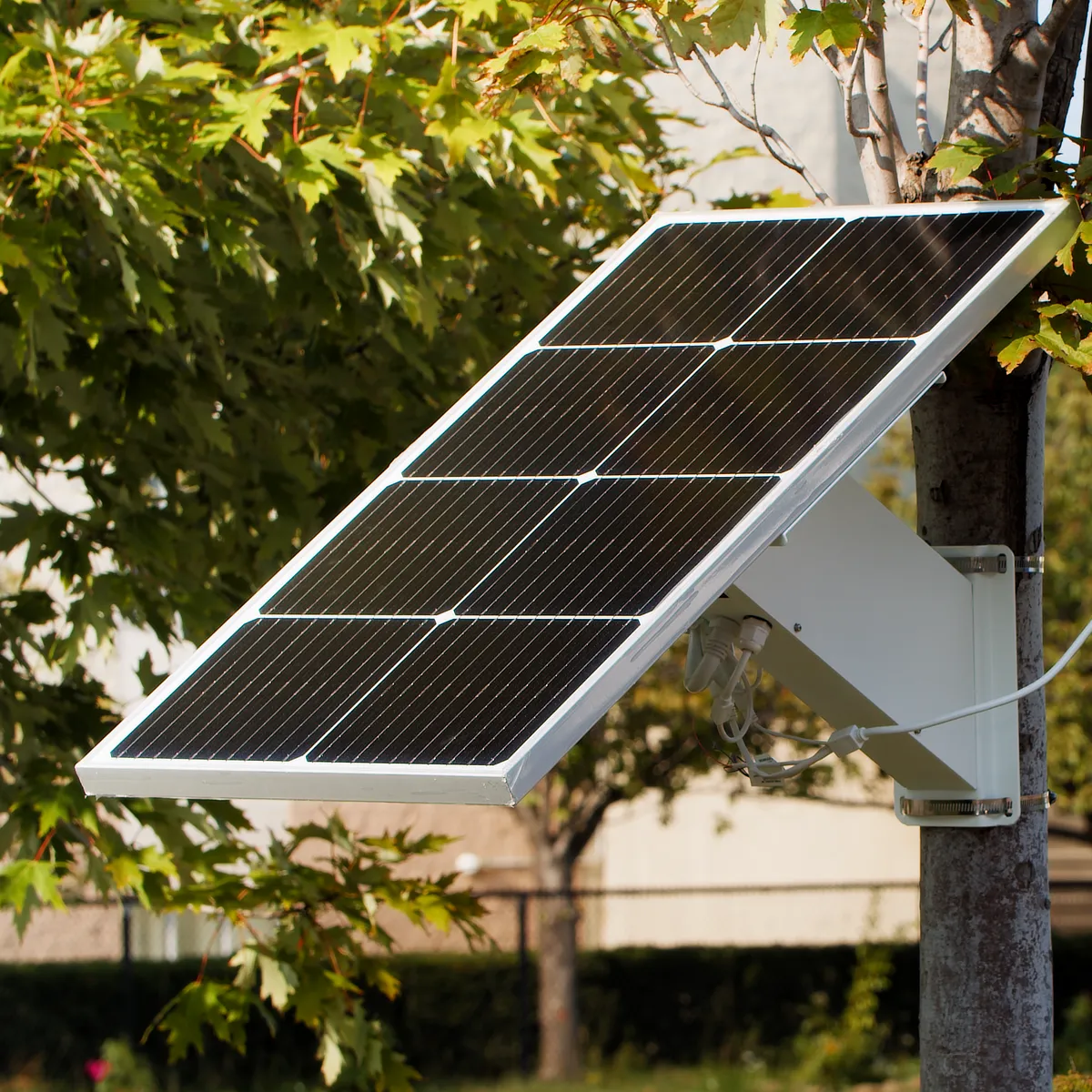

Important: For optimal solar panel, you should face the panel south at an angle of about 60°. This is because the sun can reach a low angle of 23° above the horizon (in Toronto), so you should angle the panel further outwards to catch the most sunlight during the cold winter months. The steep angle also helps to prevent snow from accumulating on the panel.
Features – 320Wh/60W Solar Power System (built-in heating module)
- Modular design for easy battery assembly, hanging design for easy solar panel installation.
- Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
- Built in self developed high efficiency solar controller realizes faster charging.
- Visual status indicator allows for easy understanding of the product’s operating status.
- Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
- Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
- Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
- Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
- High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
- High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
- Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
- Allows to overlay the battery percentage OSD on the camera’s live video.
- Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.
