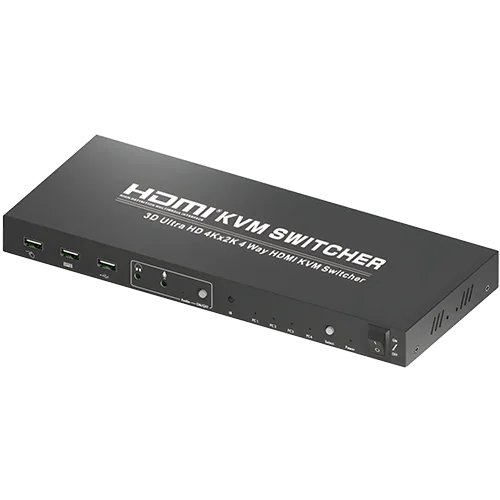

XLR-ACC-KVM-4HDMI-USB

This KVM switch is for connecting multiple devices to single monitor. Supports HDMI inputs up to 4k, with a push button to toggle input between four devices. Includes a 5V DC power adapter.

Description

Designed for CCTV applications, this KVM switch allows for easy switching between your PC and video surveillance system using a simple push-button switch. By connecting your monitor to the main HDMI output, and connect your PC and NVR to HDMI inputs 1 – 4, you will able to quickly switch between your desktop and camera system using a single button.

The KVM switch also allows you to connect a USB mouse & keyboard, allowing for smooth operation of your devices while keeping a clean workspace.

Features

  1. One USB or PS/2 console controls 4 HDMI-interface computers.
  2. Switch between devices via front panel push buttons, remote control and hot keys.
  3. HDMI digital monitor support-fully compliant with HDMI 1.4 and also HDCP compliant.
  4. Supports 480i,480p,720p,1080p,3840×2160@30Hz video output.
  5. Supports widescreen resolutions
  6. OS support for Windows, Linux, and MacOS
  7. Auto Scan Mode for monitoring all computer and HDMI devices.

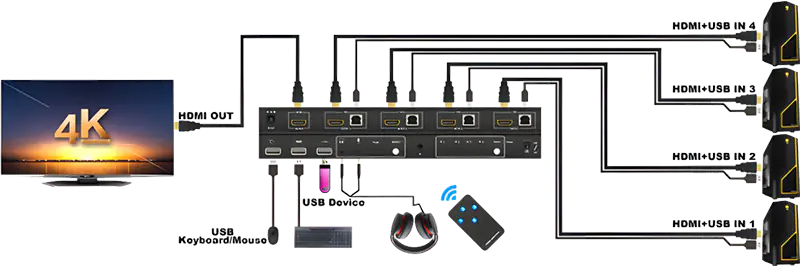

Connection diagram for 4-port USB HDMI KVM switch

Packaging Accessories

  1. HDMI KVM Switch———-1 PC
  2. Remote Control—————1 PC
  3. 5V DC Power Adaptor——1 PC
  4. User Manual——————-1 PC
  5. USB AM/BM Cable———-4 PC

Specifications

Front Panel

Front panel of 4-port HDMI USB KVM switch

  • USB1-3—————-USB hub port
  • Microphone——-Microphone port
  • Stereo———————Stereo port
  • ON/OFF——–Audio switch button
  • PC1-4———–Input 1-4 indicator
  • Select————Input switch button
  • Power—————-Power indicator
  • ON/OFF—————-Power switch

Rear Panel

Rear panel of 4-port HDMI USB KVM switch

  • DC-5V———————Power input port
  • HDMI Out—————HDMI output port
  • HDMI/USB IN 4———–PC4 Input port
  • HDMI/USB IN 3———–PC3 Input port
  • HDMI/USB IN 2———–PC2 Input port
  • HDMI/USB IN 1———–PC1 Input port

Technical Parameters:

Computer Connections

4

Port Selection

Panel Push buttons;Hotkeys

Connectors

Console Ports

Keyboard

1 X USB Type A Female

Video

1 x HDMI Type A Female

Mouse

1 x USB Type A Female

USB device

1 x USB Type A Female

KVM Ports

Keyboard / Mouse/USB

2 USB Type B Female

Video

4 HDMI Type A Female

Power

1 xDC Jack

Stereo/microphone

3.5mm Jack

Switches

Selected

2 Push button

Emulation

Keyboard/Mouse

USBx2

Video

3840×2160,4096×2160

Scan Interval

10 seconds

Power Consumption

DC 5V

Environment

Operating Temp

0-50

Storage Temp

-20-60

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.8kg

Dimensions (L x W x H)

276x110x25mm
