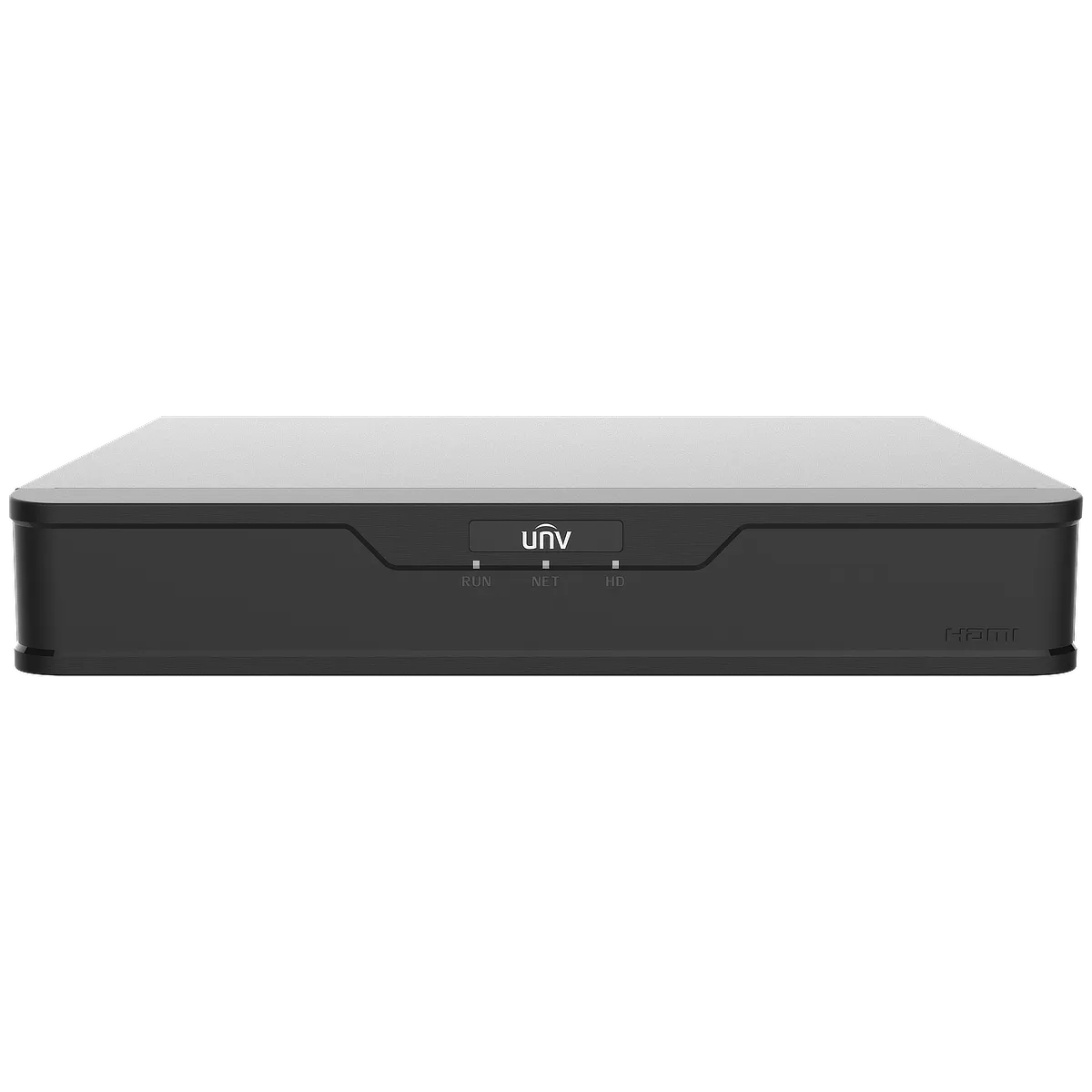

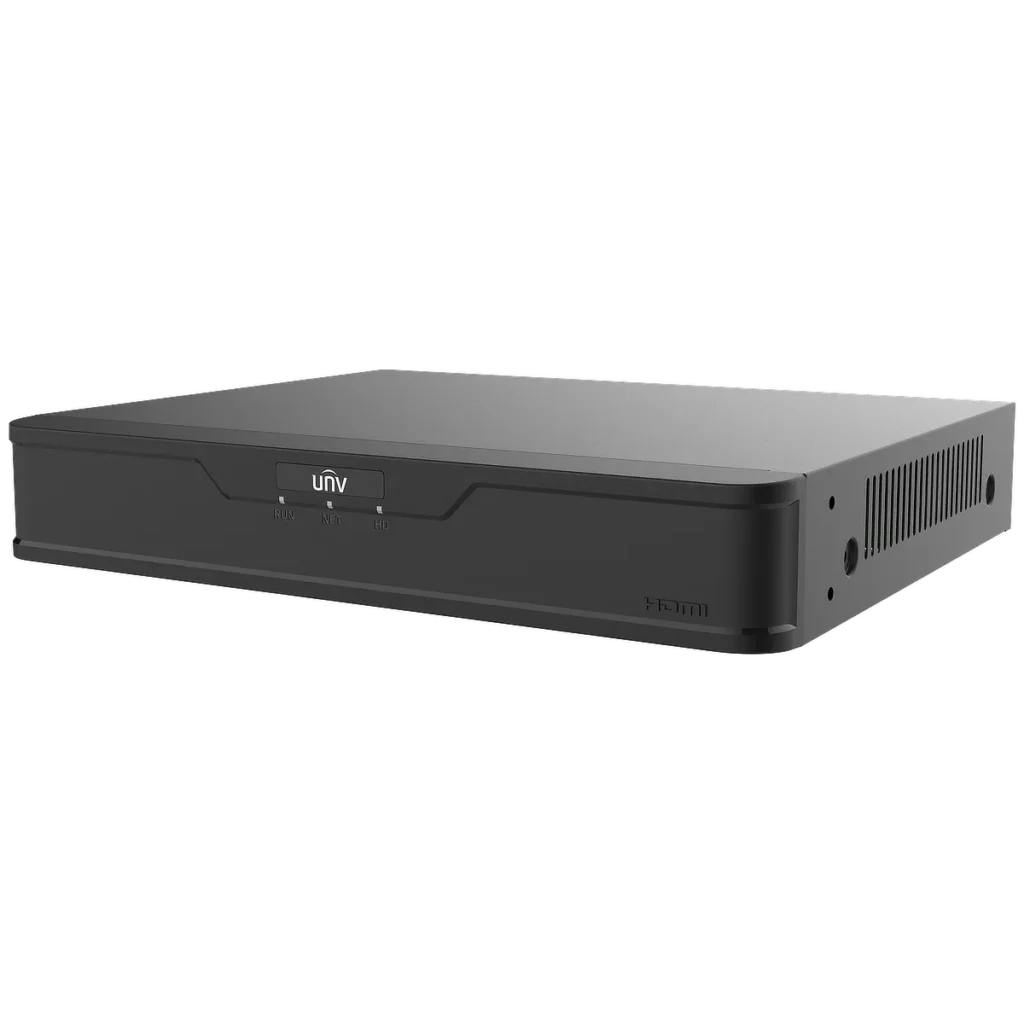

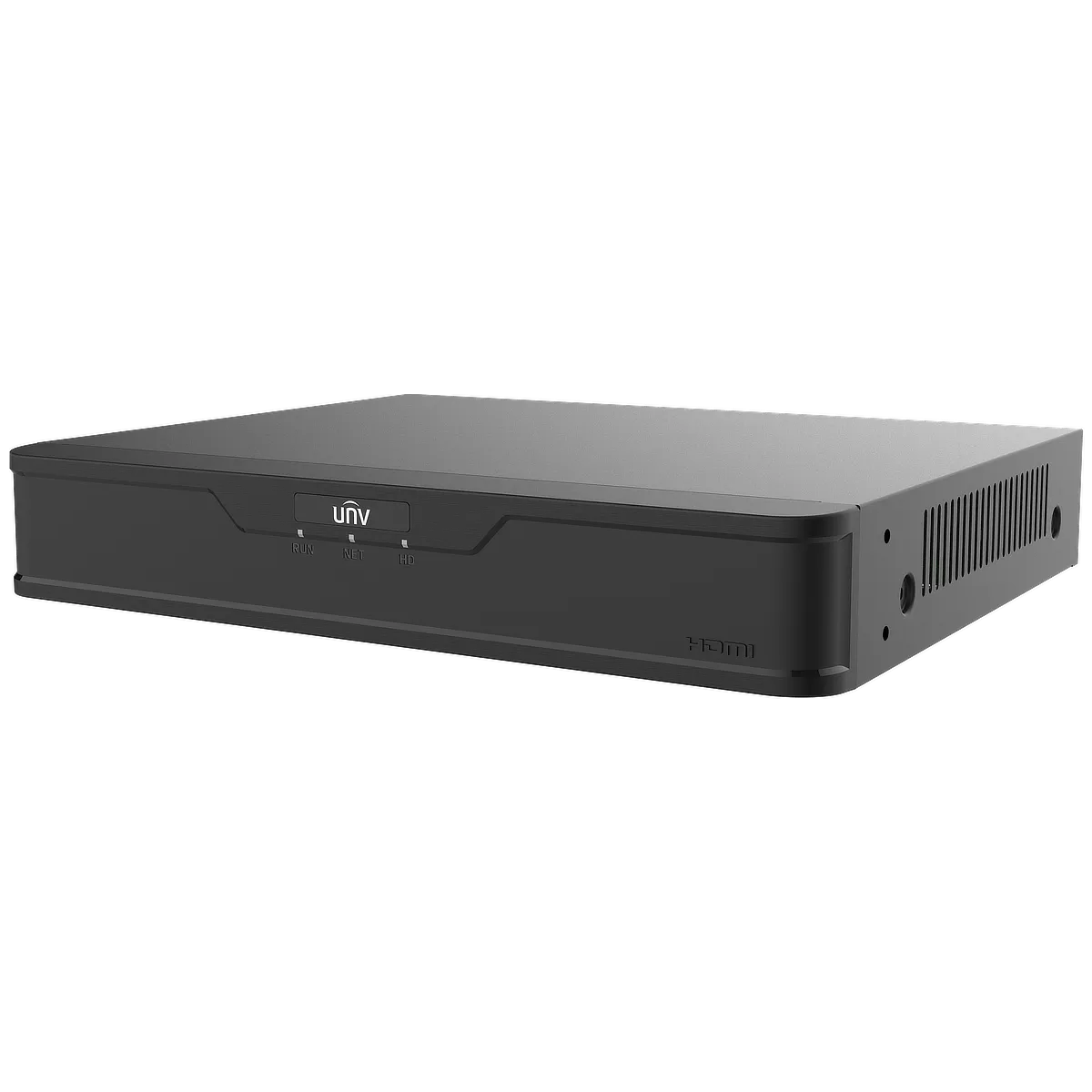

XVR301-08Q4

This is an 8ch hybrid video recorder. It supports up to 8 analog cameras and 4 IP cameras. This is a cost-effective option for updating an older analog system with a new platform. It supports EZCloud for the mobile app, allowing you to view the cameras remotely without port forwarding.

Categories: Uniview NVRTags: 8CH, Hybrid DVR

Product Overview

The XVR series from Uniview is a hybrid recorder that supports both analog and IP cameras. This model XVR301-08Q4 supports up to 8 analog cameras via the BNC inputs on the back of the recorder. It can also record an additional 4 IP cameras that are on the same network.

Features – 1 HDD 8-Ch 1U Digital Video Recorder

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8/16-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Supports two-way audio when paired with specific front-end analog cameras.（UAC-B142-ACF28LM-DL, UAC-B142-ACF40LM-DL, UAC-T142-ACF28LM-DL, UAC-T142-ACF40LM-DL）

Specification

Model XVR301-08Q4
Video/Audio Input
IP Video Input 4-ch
Analog Video Input 8-ch, BNC
Max IP Video Input 12-ch
Supported Analog Camera Types Support AHD input:
8MP@15fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support TVI input:
8MP@15fps
8MP@12fps
3K@20fps
5MP@20fps
5MP@12fps
4MP@30fps
4MP@25fps
4MP@15fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVI input:
8MP@15fps
8MP@12fps
5MP@25fps
5MP@20fps
4MP@30fps
4MP@25fps
1080P@30fps
1080P@25fps
720P@30fps
720P@25fps
Support CVBS input
BNC Audio Input 8-ch, channel audio
RCA Audio Input 1-ch
3.5mm Audio Input N/A
Video/Audio Output
Video Output Support 1-ch CVBS output, 1-ch HDMI, 1-ch VGA, VGA and HDMI simultaneous output
HDMI Output HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI Standard HDMI 1.4
BNC Video Output 1-ch
BNC Audio Output 8-ch, channel audio
RCA Audio Output 1-ch
3.5mm Audio Output N/A
Live View Display HDMI/VGA: 1/4/6/8/9/16
Default Num of Live Screen VGA: 8; HDMI: 8
Playback Screen 1/4/9/16
Encoding/Decoding
Recording Resolution 8MP Lite/3K Lite@12/5MP Lite/4MP Lite/1080P/720P/D1
Recording Frame Rate Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Third Stream: CIF@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 5MP@6fps
Sub stream: D1@6fps
Third Stream: CIF@6fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Third Stream: CIF@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 1080P@15fps Sub stream: D1@15fps
Third Stream: CIF@15fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Third Stream: CIF@30fps
Audio Sample Rate 8 kHz, 16 bit per channel
Audio Bit Rate 64 Kbps per channel
Decoding Capability Analog: 8 x 8MP Lite@8, 8 x 3K Lite@12, 8 x 5MP@6, 8 x 5MP Lite@12, 8 x 4MP@15, 8 x 1080P@15, 8 x 720P@30
IP: 1 x 8MP@30, 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30, 8 x 720P@30
Num of Concurrent Playback 16-ch
Num of Concurrent Playback in Local 8-ch
Coaxial Cable
Analog camera Upgrade over Coaxial Cable Support
Audio over Coaxial Cable(Form) 8-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)
Two-way Audio
Two-way Audio 1-ch (with IP Camera or specific Analog Camera )
Analog Snapshot
FTP/Schedule/Event Snapshot Schedule/FTP/Event snapshot:12-ch snapshot, up to 3840*2160 resolution
Network
Incoming Bandwidth 40Mbps (Up to 56Mbps after all analog channel conversion)
Outgoing Bandwidth 64Mbps
Max users can be added 32
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP, HTTPS
Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Browser(Plugin-Free) Chrome 57+, Edge 16+, Firefox 58+, Safari 11+
Smart
Analog Smart by XVR Ultra Motion Detection (UMD) , Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
IP Smart by IPC Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting
VCA Search Face Search, Behavior Search, People Counting Report
Smart Functions by XVR 1-ch (Face Detection), 4-ch (SIP), 8-ch (UMD)
Alarm
General Alarm Motion
Alert Alarm IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 1 SATA interface
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
External Interface
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Network Working Mode Single port, not involved
USB Rear panel: 2 × USB2.0
RS485 1
RS232 N/A
Alarm In 4-ch
Alarm Out 1-ch
Power Supply DC 12 V/2 A
Power Switch N/A
Redundant Power Supply N/A
Buzzer Support
Working Environment
Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 8W
Heat Radiation Radiator
Dimensions
Weight (without HDD) ≤0.9Kg（1.98lb）
Height 1U
Dimensions 260mm × 226mm × 46.6mm
(10.2″ x 8.9″ x 1.8″)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
Compliance
NDAA Compliant Support
Feature supported
Cruise lines num of each camera 4
Preset num 32
N+1 Hot Spare N/A
Fisheye Dewarping by IPC N/A
Fisheye Dewarping by NVR (Local) N/A
ANR Support
Downlink ONVIF Support (Profile S)
Uplink ONVIF N/A
UCS(Web socket) N/A
NAS Support
Ucode Basic Mode(Analog) Support
Ucode Basic Mode(IPC) Support
Ucode Advanced Mode(Analog) Support
Ucode Advanced Mode(IPC) Support
POS N/A
Control the Dual-light of UNV Analog Cameras under TVI Support
Output Mode Support
