Base5i

This is a full Gigabit wireless bridge with a horizontal beamwidth of 120° and a range of up to 5 KM. It’s designed to serve as the base station for up to 16 transmitters in the field.

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

The Lysora Base5i is a wireless bridge with a 120° beamwidth antenna for covering a large area. It’s designed to serve as the base station for a 1:16 point to multi-point wireless bridge network. With a maximum range of up to 5 KM, the Base5i is able to connect to both CPE3-P and CPE5 bridges.

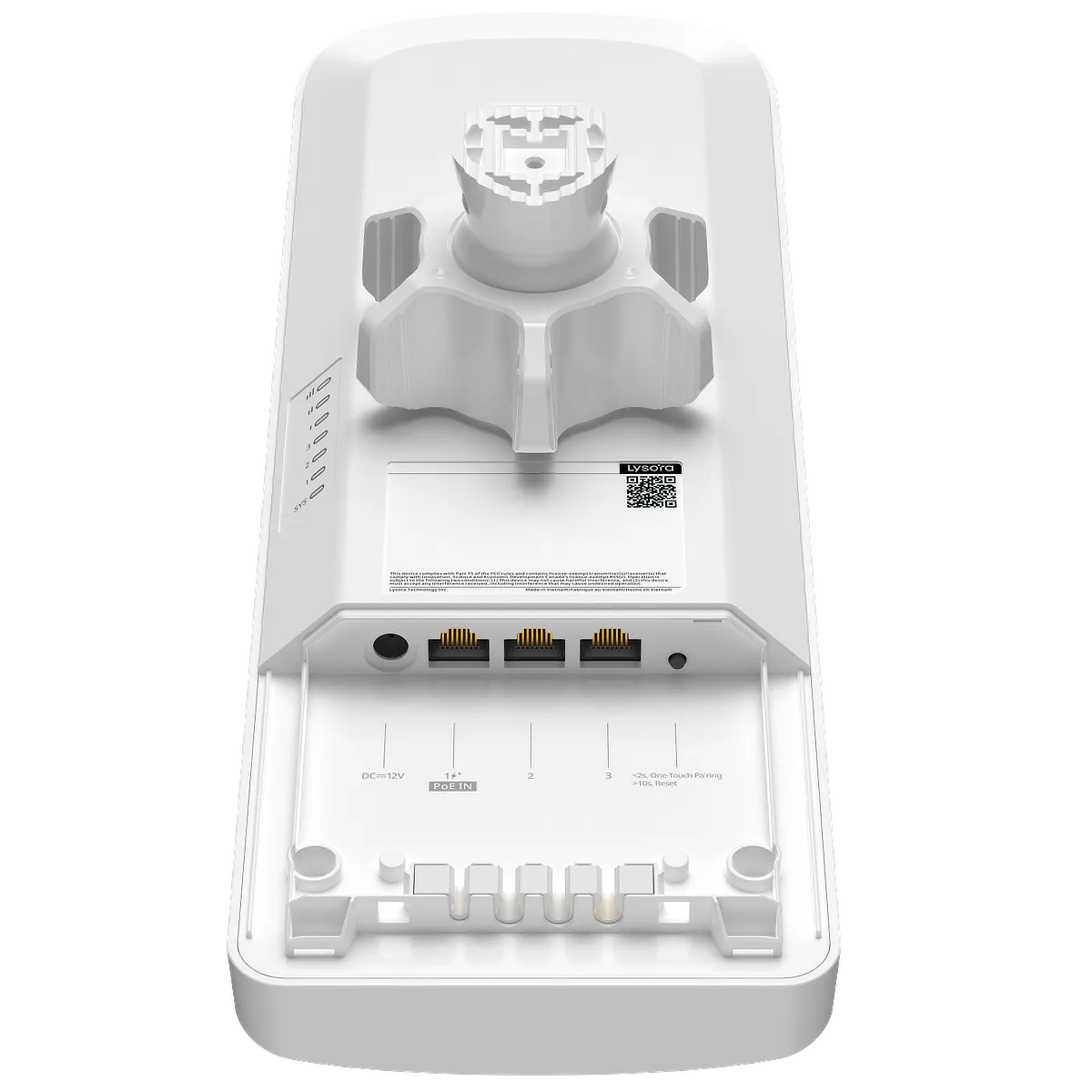

The factory reset button also doubles as a one-touch pairing button. Simply tap the button at the bottom to pair all nearby wireless bridges to the network. Within a minute or two, they’ll become paired. If you hold the reset button down for 10 seconds, the bridge will return to its factory default settings.

Lysora’s Cloud Portal makes it easy to manage Base5i remotely. From the cloud portal, you can adjust the wireless frequencies of your bridges, perform a spectrum scan to find a channel with less interference, and upgrade the firmware of your devices.

Features – 5 GHz BaseStation with 15 dBi Built-in Antenna

  • 5GHz Wireless Bridge Base Station
  • Max 867Mbps wireless rate
  • 15dBi high gain directional built-in 120° antenna
  • Support 5KM long distance data transmission with 3GE ports

Specification

Overview
Dimensions 355 mm x 124 mm x 148 mm (excluding mounting bracket)
Weight 0.83 kg (1.83 lbs) (without packaging); 1.61 kg (3.55 lbs) (with packaging)
Coverage Area 5 km (3.11 miles)

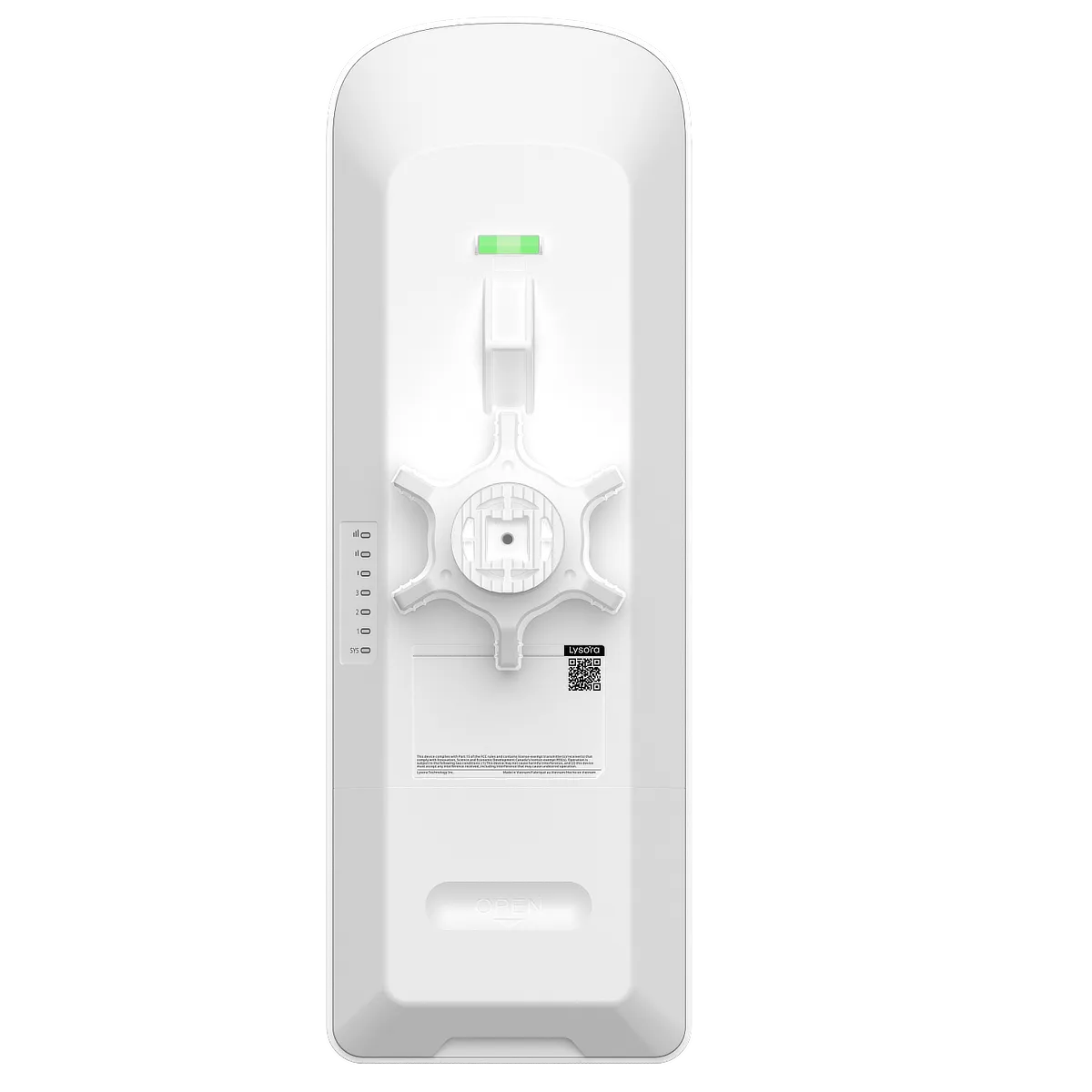

Mounting Type Wall or Pole (mounting bracket included)
Hardware & Networking
CPU Dual-core processor, 880 MHz clock frequency per core
Flash Memory & RAM 16 MB Flash Memory, 128 MB RAM
Networking Interface 3 x 10/100/1000BASE-T ports
Wi-Fi Standards Wi-Fi 5 (IEEE 802.11ac), compatible with IEEE 802.11a/b/g/n
Spatial Streams 3
MIMO 2.4 GHz: 1 x 1 SISO
5 GHz: 2 x 2 MIMO
Antenna Gain 2.4 GHz: 1.22 dBi
5 GHz: 13.54 dBi (antenna 1), 14.11 dBi (antenna 2)
Antenna Orientation Horizontal: 120°, Vertical: 13°
Max. Transmit Power 2.4 GHz: 18.77 dBm
5 GHz: 15.37 dBm
(conducted output power, US and Canada)
LED 1 x system status LED, 3 x Ethernet port LEDs, 3 x signal status LEDs
Button 1 x Reset button
Power Specifications
Power Consumption ≤ 12 W
Power Method 24 V, 0.6 A DC power adapter (included)
24 V passive PoE injector (included)
12 V, 1 A DC power adapter
PoE/PoE+
PoE Budget –
Performance & Bridging
Max Wireless Data Rate 2.4 GHz: 150 Mbps
5 GHz: 867 Mbps
Channel Bandwidth 2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz
Max Bridge Distance 5 km (3.11 miles)
Min Bridge Distance 2 m (6.56 ft.)
Max Connections (Root Bridge) 16
Bridge Throughput (HT40) 1 km: 200 Mbps
3 km: 130 Mbps
5 km: 80 Mbps
RSSI 1 km: -59 dBm
3 km: -67 dBm
5 km: -73 dBm
Recommended Cameras (4-5 Mbps) 1 km: 25 cameras
3 km: 18 cameras
5 km: 10 cameras
Recommended Cameras (7-8 Mbps) 1 km: 13 cameras
3 km: 8 cameras
5 km: 5 cameras
One-Touch Pairing Range 20 m
Software & Management
Working Modes Base Station, CPE
WLAN Features TDMA, Bridge SSID hiding, Antenna alignment, Spectrum scan, VLAN
Management Self-organizing network (up to 200 devices), SNMP, SSH
Configuration Web management (via local IP address) and Cloud management (via Lysora Cloud Portal)
Environmental & Certifications
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Humidity 5% to 95% RH (non-condensing)
Weather Resistance IP55 rating
Surge Protection Service port: ±4 kV common mode
Power connector: ±4 kV common mode, ±2 kV differential mode
Certifications FCC, ISED, cTUVus
Compliance NDAA Compliant
