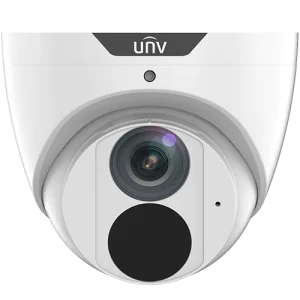

IPC3618SR3-ADF28KM-G

8MP Turret IP Camera, IR up to 30m, IP67, MicroSD Slot, Built-in Mic, Fixed 2.8mm lens (No AI Detection)

Description

The Uniview 8MP turret is incredibly popular for a few reason. It’s cost-effective, reliable, and performs well in many conditions. It also looks sleek and modern, which makes it suitable for both residential and commercial applications. It has a built-in microphone and IR up to 30m (98ft).

This camera also features human body detection, allowing you to filter events to humans only. This will avoid false alarms caused by rain, leaves, and animals. By avoiding false alarms, you can leave push notifications enabled and search through footage more easily.

This version has a 2.8mm lens which covers a horizontal angle of 112°. This allows you to cover a wider area than a standard 3.6 or 4.0mm lens.

Features – 4K HD IR Fixed Eyeball Network Camera

  • High quality image with 8MP, 1/2.7″CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Specification

IPC3618SR3-ADF28KM-G IPC3618SR3-ADF40KM-G
Camera
Sensor 1/2.7″, 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount M12
Angle of view (H) 112.9° 91.2°
Angle of View (V) 59.1° 47.9°
Angle of View (O) 121.2° 95.9°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8mm 84 33.6 16.8 8.4
4.0mm 120 48 24 12
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Basic Detection Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
EMC FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ118 x 95mm (Φ4.6” x 3.8”)
Weight 0.36kg (0.79lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Ingress Protection Ingression protection: IP67
