UNV-KIT/201S/372S/NSW2020
A Uniview Intercom Kit that includes an intercom, an indoor 7-inch touchscreen, and a 4-port PoE switch. The intercom has a built-in 2MP camera, a speaker, and a microphone. It’s also IP65 weather resistant and can be used to call the indoor station and the UNV-Link app.
Description

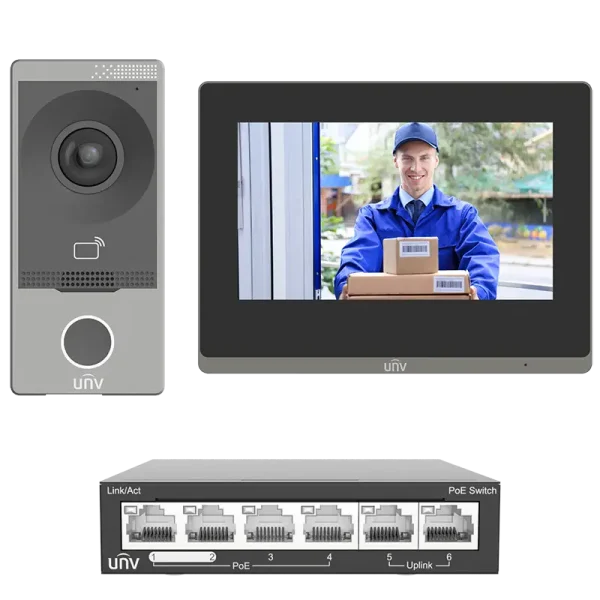

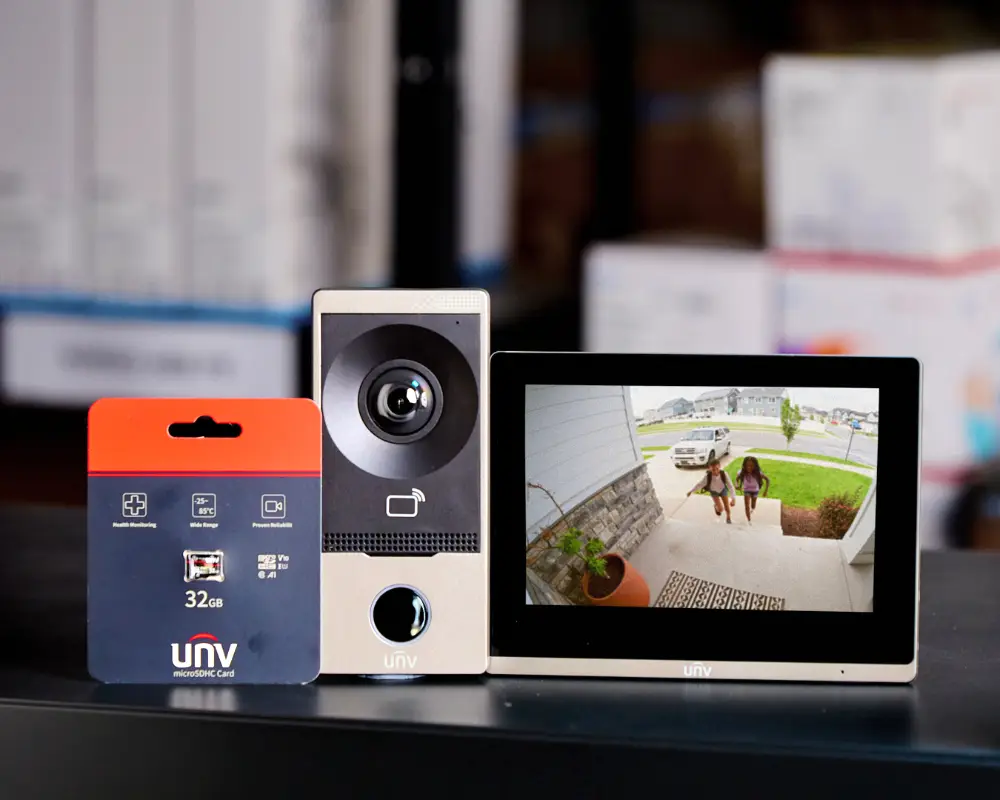

You’ve been asking for a long time – and Uniview has finally delivered an intercom system that works seamlessly with their network video recorders and the UNV-Link app! This kit comes with the following items:
- OEU-201S-HMK-W (Outdoor Station – 2MP camera w/two-way audio)
- OEI-372S-H-W (Indoor Station – 7-inch LCD touchscreen with glass panel)
- NSW2020-6T-POE-IN (4-port PoE switch w/two uplink ports)
- TF-32G-MT (32GB MicroSD card for outdoor station)
The intercom can be wired to an electric door strike, allowing you to setup a simple access control system. There’s even a built-in card reader that supports MIFARE access cards; by tapping your card on the reader, you can quickly unlock the door.
OEU-201S-HMK-W
- Metal casing
- Supports call and intercom with the connected indoor station and app
- Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
- Supports Wi-Fi
- Built-in IC card reader
OEI-372S-H-W
- ABS casing and glass panel, solid and durable
- Supports Wi-Fi
- Supports touchscreen operation
- 1024 x 600 HD screen
- Supports remote door opening by sending signal to the door station
- Allows to view live video of connected door stations and network cameras
NSW2020-6T-POE-IN
- Allows to switch operating modes, including Default, VLAN, and Extend
- Supports VLAN isolation. All PoE ports are isolated from each other and only able to communicate with uplink ports
- Supports network extension. With a high-quality network cable and IPC, the network transmission distance can reach up to 250 meters by lowering the network port rate to 10Mbps
- Supports port priority. Packets from high-priority ports will be forwarded first
- Supports flow control. When there is data congestion in the uplink ports, the switch will actively send flow control frames to PoE ports
- Plug-and-play, simple and convenient
- All metal casing, secure and reliable
Specification
| Model | OEU-201S-HMK-W |
| Hardware Specification | |
| Power Supply | DC 12V±25% input;IEEE802.3af, Standard PoE |
| Operation System | Linux |
| Supplement Light | IR light(Adaptive infrared compensation) |
| FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° |
| Power Consumption | ＜10W |
| Volume Adjustment | Adjustable |
| Audio Quality | Noise suppression, echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Standard | PCM, G711, MP3 |
| Audio Compression Bitrate | 128Kbps |
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08 |
| Weight | 0.267Kg |
| Dimensions (L x W x H) | 79mm×171mm×34mm |
| Mount Method | Wall mounted, flush installation |
| Interface | Power *1, network port *1, RS485, door lock interface *2, IO input *4 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply，WIFI |
| Operating Environment | ﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor |
| Resolution | 2MP |
| Basic Business | |
| WDR | Support DWDR |
| Protocol | UNV private protocol |
| Button | 1 physical button |
| Specification Index | |
| Card Capacity | 10000 |
| Linked Indoor Station Capacity | 20 |
| Model | OEI-372S-H-W |
| Hardware Specification | |
| Power Supply | DC12V±25%,IEEE802.3af, Standard PoE |
| Power Consumption | ＜10W |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Screen Resolution | Screen resolution 1024×600 |
| Operation System | Linux |
| Audio Quality | Noise suppression, echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Standard | MP3 G711 |
| Audio Compression Bitrate | 128Kbps |
| Interface | Power*1, network*1, WiFi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ |
| Weight | 360g |
| Dimensions (L x W x H) | 193mm×143mm×25mm |
| Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor |
| Basic Business | |
| Protocol | UNV private protocol |
| Model | NSW2020-6T-POE-IN |
| Hardware Specification | |
| Ports | 6 ports |
| Ports Type | 6×100Mbps network ports (RJ45), including 4 PoE ports |
| Ports Rate | 100Mbps |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching capacity | 1.2Gbps |
| Packet Buffer | 448K bit |
| Forwarding performance | 0.90Mpps |
| MAC | 1K |
| Prior Ports | 1~2 |
| Power Supply | DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz) |
| PoE | support POE |
| Max. PoE Power | Max capacity: 60W, Max capacity for single port: 30W |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating humidity | 10%～90% (noncondensing) |
| Cooling Fans | 0 |
| Weight | 0.19KG |
| Dimensions (W×D×H) | 107*101*25mm |
| Storage humidity | 5%～90% (noncondensing) |
| Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data |
| Working Mode | Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
| Max.Power | 65W |
