TR-UP06-B-IN

Uniview pole mount bracket for IPC232x, IPC2B1x, and IPC212x series bullet cameras. Also compatible with IPC675 mini-PTZ.

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

The TR-UP06-B-IN is a small pole mount for Uniview’s mini bullet cameras, the IPC212x series. The bullet bolts to the plate, and the plate clamps to a pole or rail with the two included metal hoops (up to 5 inches across).

It’s a different part from the TR-UP06-C-IN: the C version holds a junction box, while this one takes a mini bullet directly.

Specifications

  • Dimensions: 99 × 90 × 38 mm (3.9 × 3.5 × 1.5 in)
  • Weight: 0.2 kg (0.44 lb)
  • Material: Aluminum and stainless steel

Not sure which bracket you need? Our Uniview accessories guide explains how the different bracket types fit together, and Uniview’s Bracket Quick Selection Table matches each camera to its brackets.

Specification

Model TR-UP06-B-IN
Bracket
Application Outdoor, pole or rail installation for bullet camera of IPC22X and IPC24X series

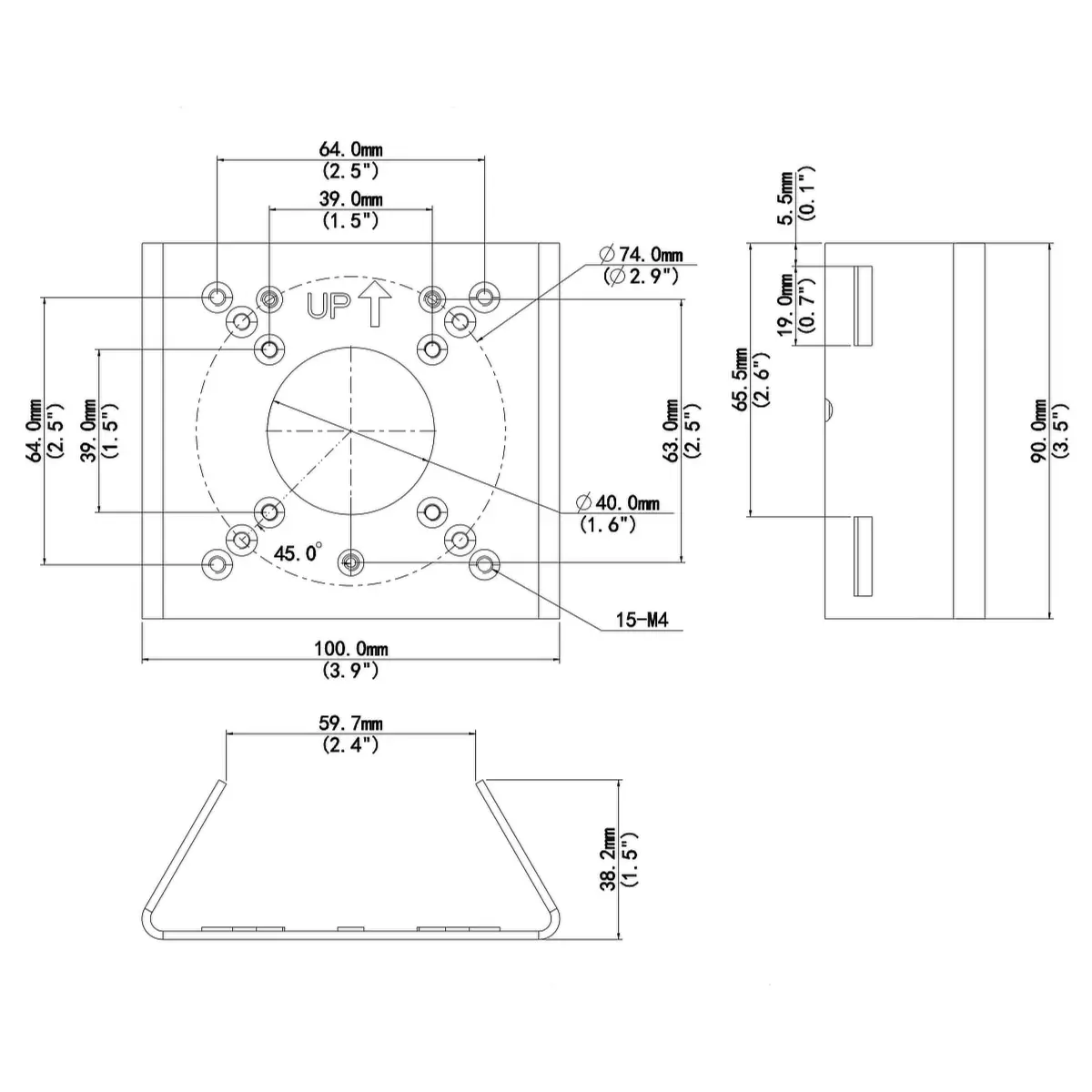

Bracket Dimensions 100.0 mm × 90.0 mm × 38.2 mm (3.9” × 3.5” × 1.5”)
Bracket Weight 0.2 kg (0.44 lb)
Bracket Material Aluminum, Stainless steel
