TR-UP06-C-IN

Uniview pole mount bracket for TR-JB07-D-IN or TR-WM-03/04 with TR-JB07-IN.

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

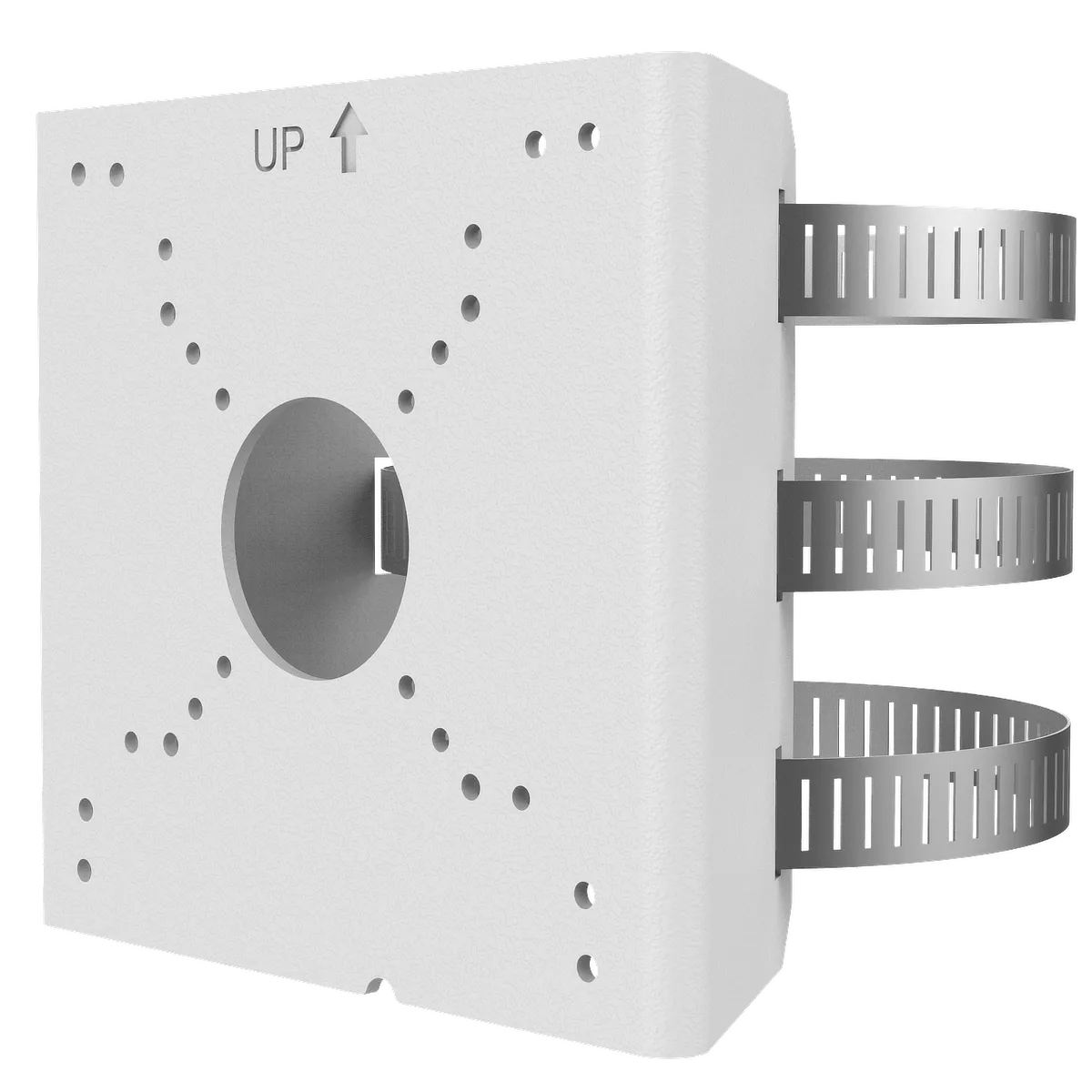

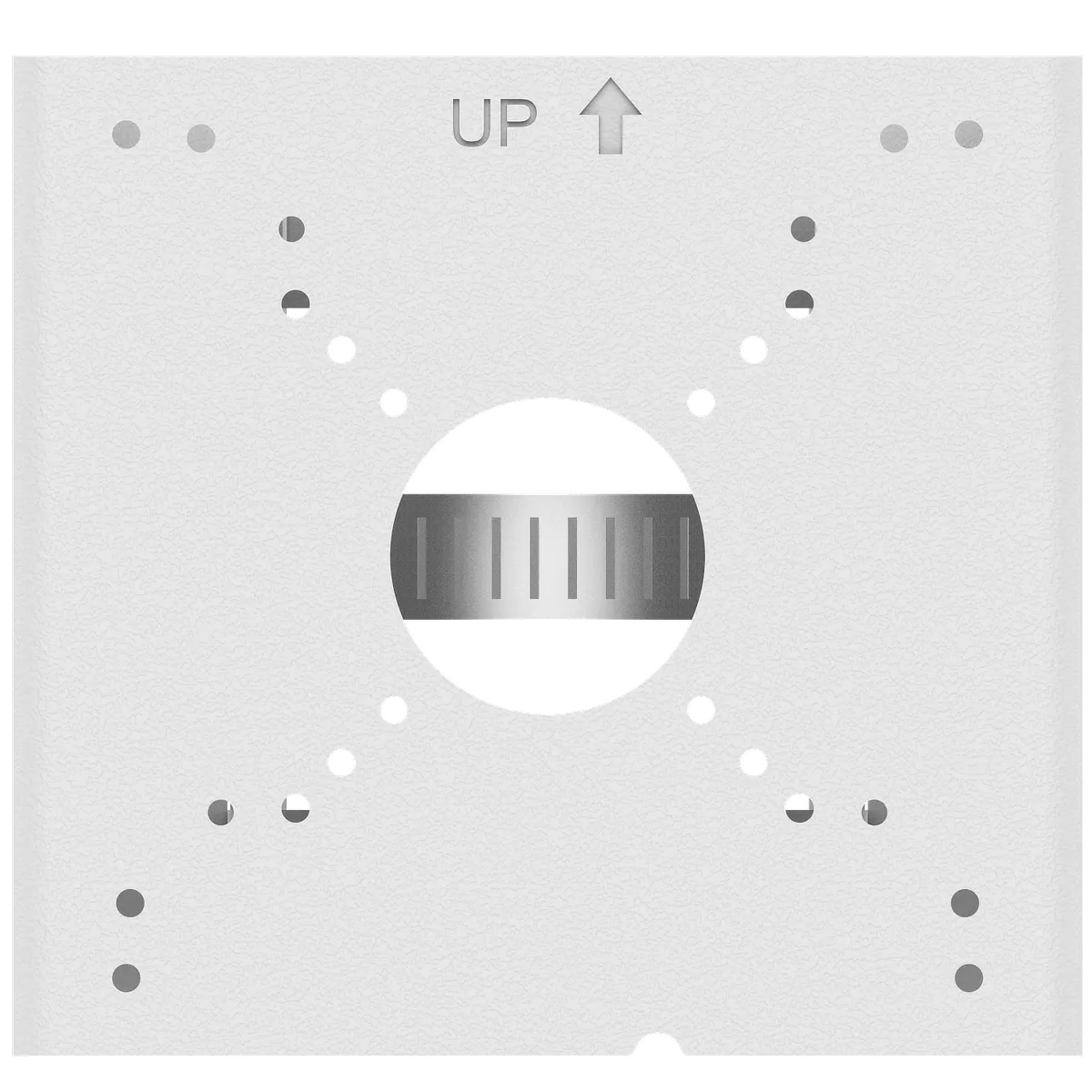

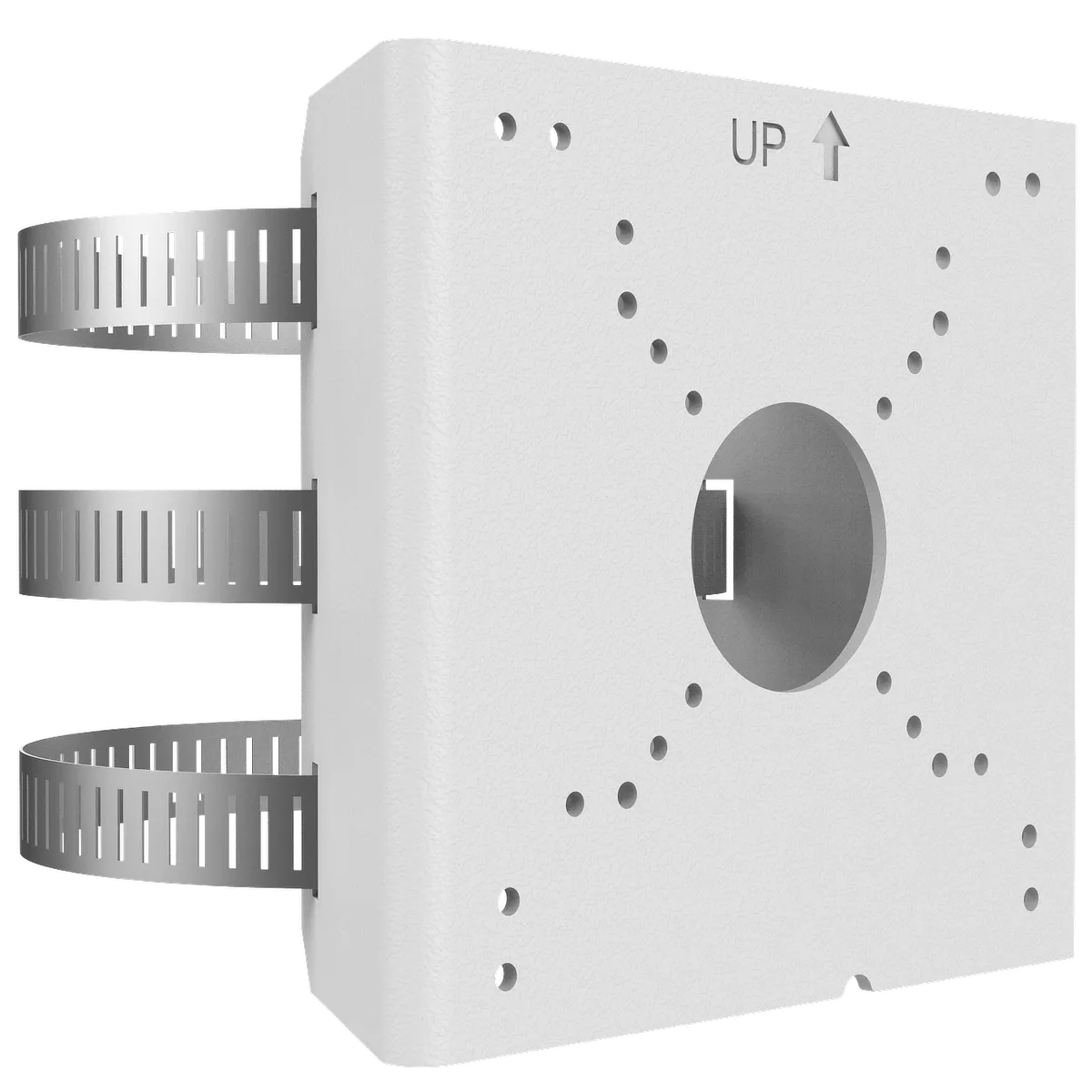

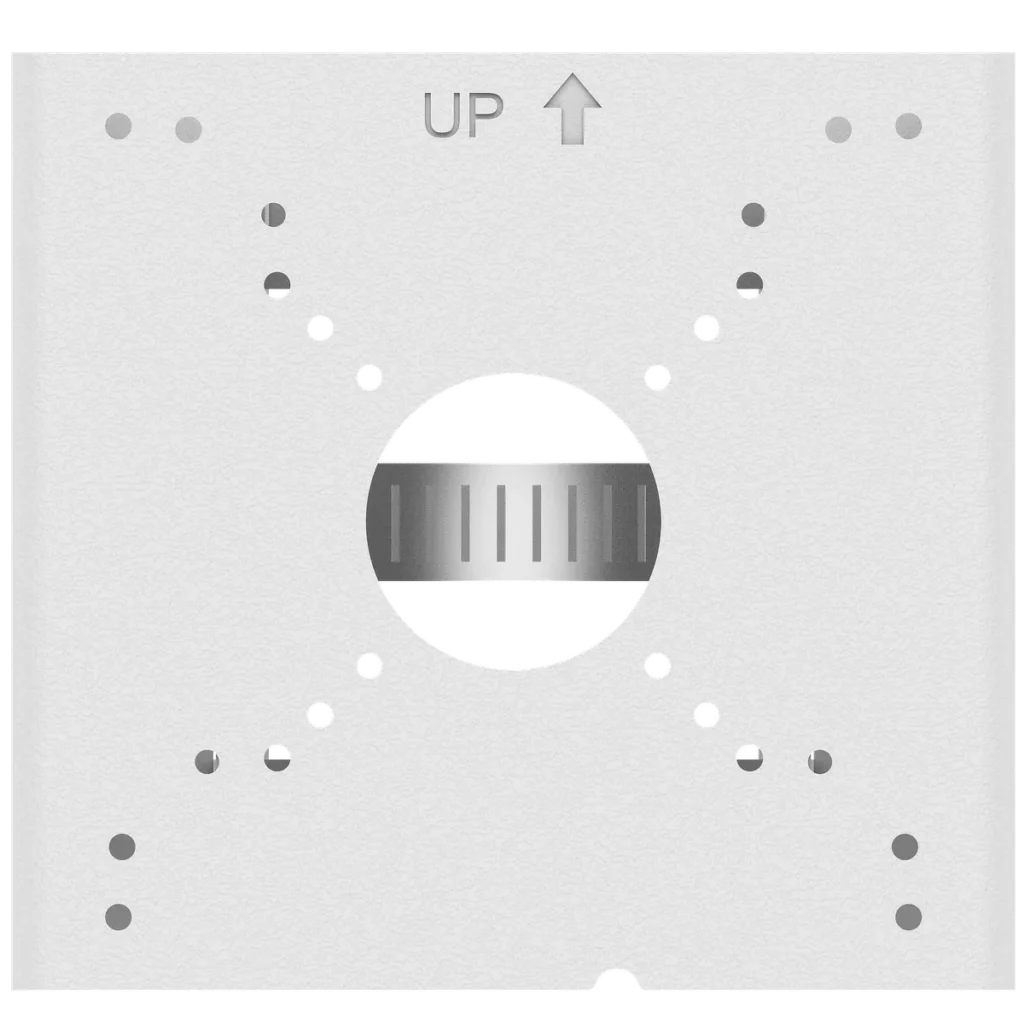

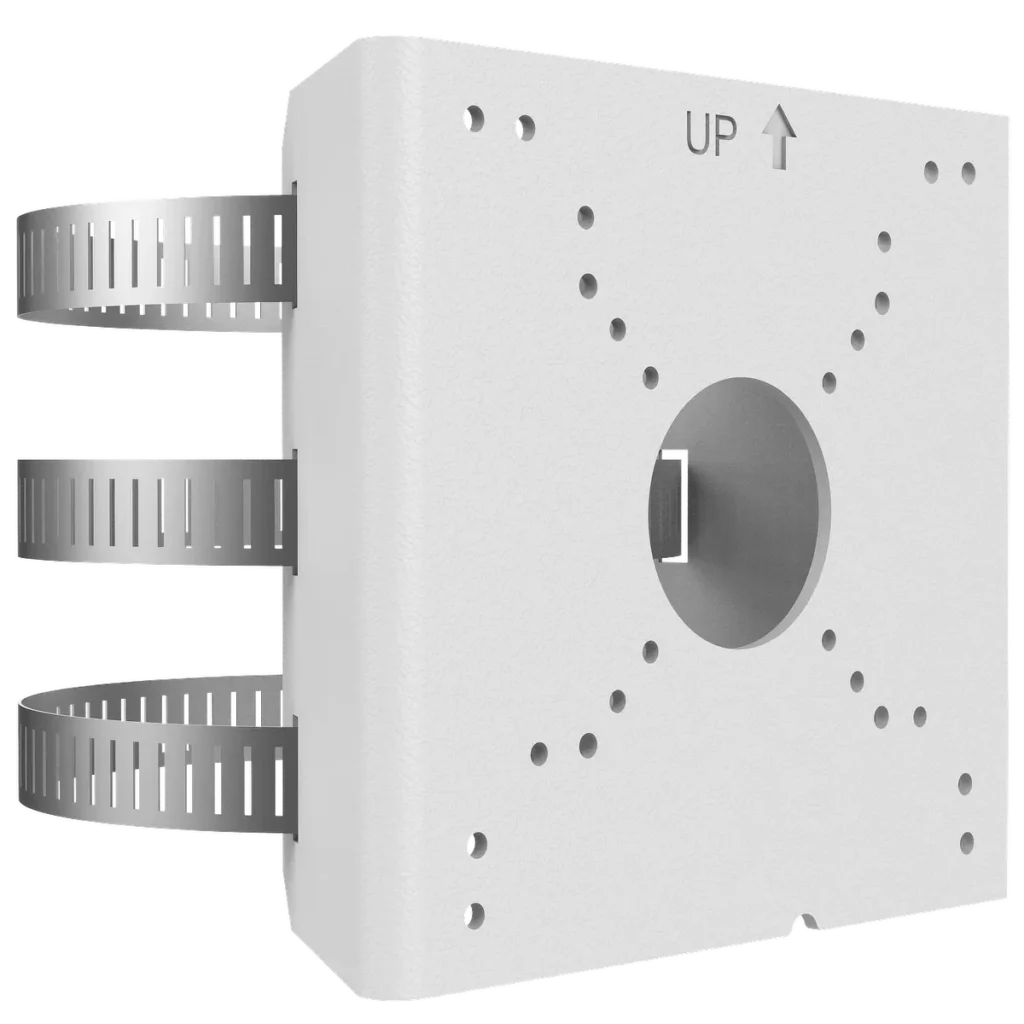

The TR-UP06-C-IN is Uniview’s pole mount for cameras on a junction box: it bolts to the TR-JB07-D-IN, alone or with a TR-WM03-B-IN or TR-WM03-D-IN wall bracket on top. That covers most Uniview bullets and turrets. It replaces the older TR-UP06-IN.

The included metal hoop clamps fit poles 2.6–5 inches across. For a bigger pole, join two rings together or use your own length of hose clamp.

Specifications

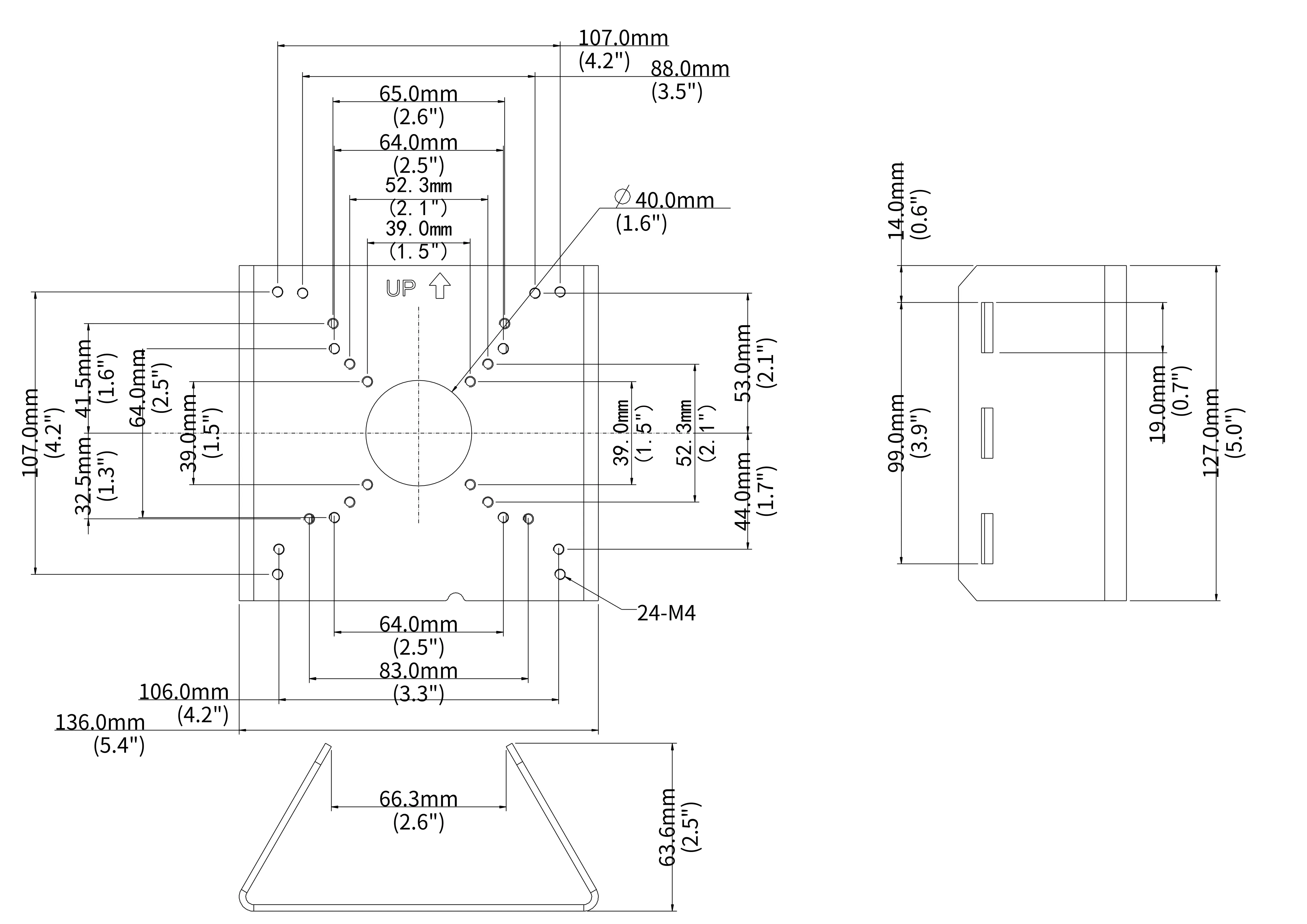

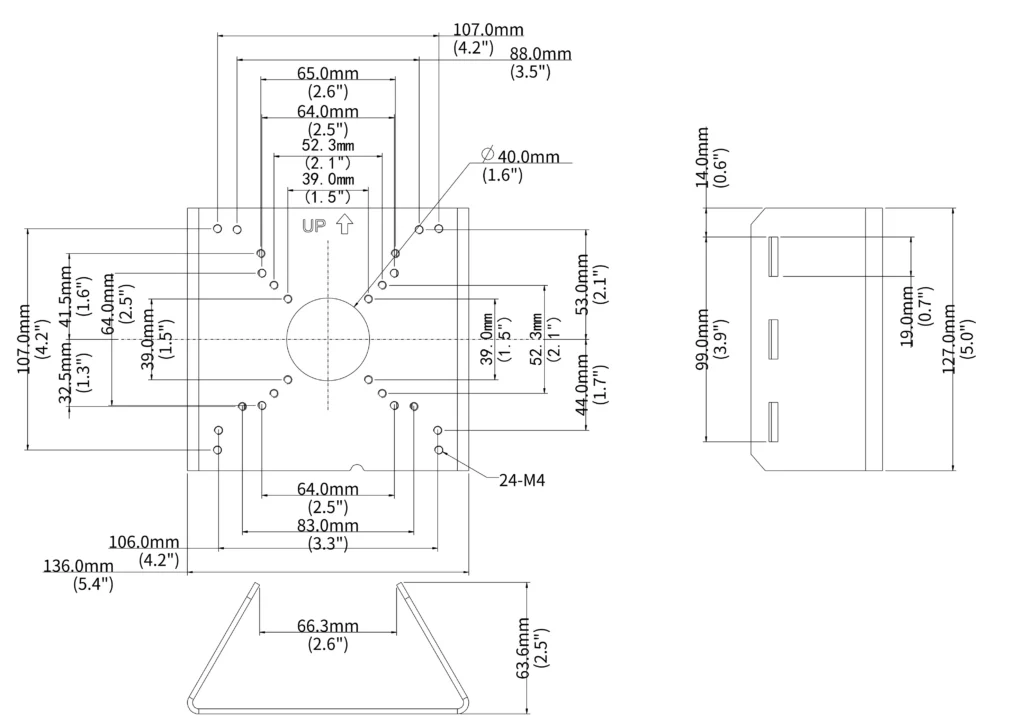

  • Dimensions: 136 × 127 × 63.6 mm (5.4 × 5.0 × 2.5 in)
  • Weight: 0.34 kg (0.75 lb)
  • Material: Aluminum alloy

The Compatible Cameras tab lists the cameras that work with this part.

Not sure which bracket you need? Our Uniview accessories guide explains how the different bracket types fit together, and Uniview’s Bracket Quick Selection Table matches each camera to its brackets.

Specification

TR-UP06-C-IN-V2
Bracket
Application Outdoor, pole or rail installation for bullet camera of IPC23XX OEM, IPC23XX/22X, IPC74X, IPC252/26X, TIC26X, TIC2AX, IPC631X/2X series
Bracket Dimensions 136.0 mm × 127.0 mm × 63.6 mm (5.4” × 5.0” × 2.5”)
Bracket Weight 0.34 kg (0.75 lb)
Bracket Material Aluminum alloy

Compatible Cameras

These Uniview cameras work with this accessory.
