IPC3618SR-ADF40KM-H
8MP Turret IP Camera, IR up to 30m, IP67, MicroSD Slot, Built-in Mic, Fixed 4.0mm lens (No advanced AI detection)
Description

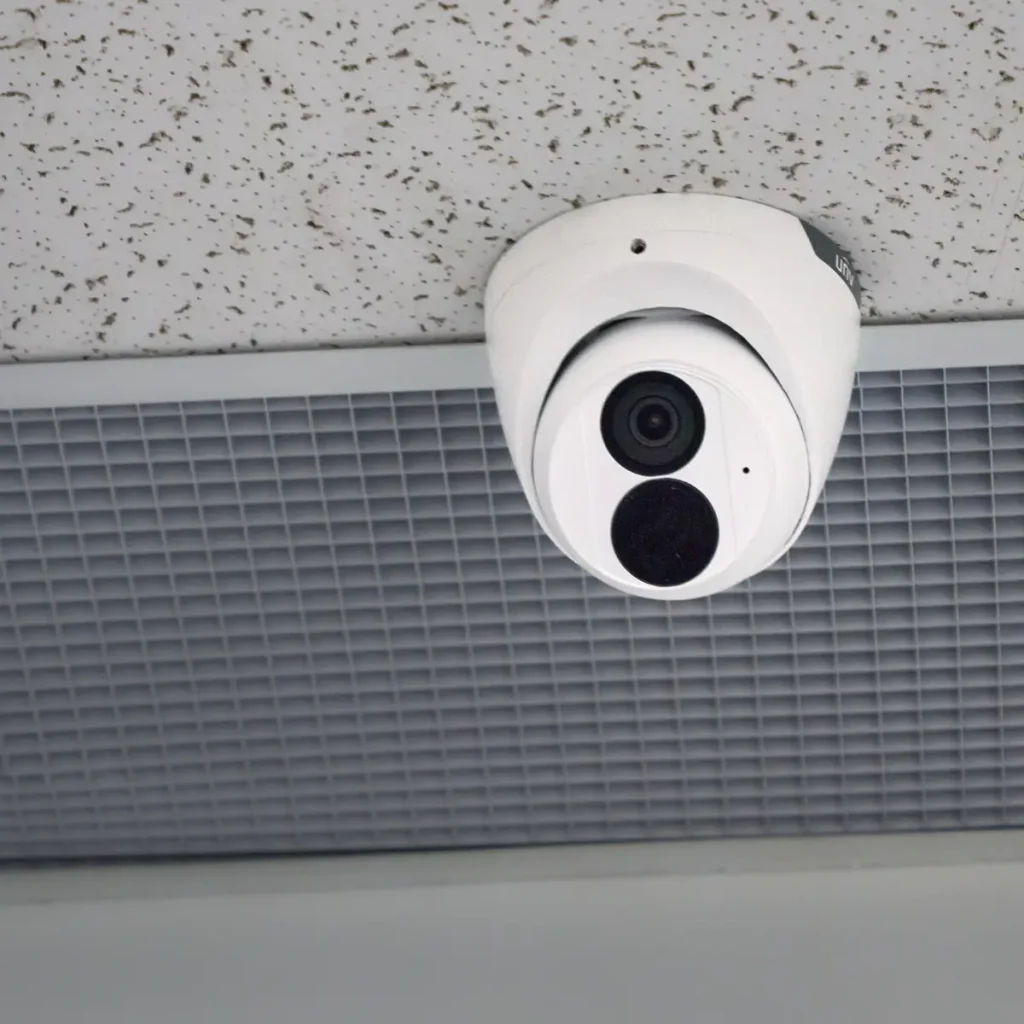

The Uniview 8MP turret is incredibly popular for a few reason. It’s cost-effective, reliable, and performs well in many conditions. It also looks sleek and modern, which makes it suitable for both residential and commercial applications. It has a built-in microphone and IR up to 30m (98ft).
This camera also features human body detection, allowing you to filter events to humans only. This will avoid false alarms caused by rain, leaves, and animals. By avoiding false alarms, you can leave push notifications enabled and search through footage more easily.
This version has a 4.0mm lens which covers a horizontal angle of 83.1°. This allows you to cover a narrower area than a standard 2.8mm lens.
Features – 4K HD IR Fixed Eyeball Network Camera
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Specification
| Camera | Description |
| Max Resolution | 8MP |
| Sensor | 1/2.8″ CMOS |
| Min. Illumination | Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON) 0 Lux with IR on |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Focal Length | IPC3618SR-ADF28KM-H:2.8 mm IPC3618SR-ADF40KM-H:4.0 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | IPC3618SR-ADF28KM-H:98.7° IPC3618SR-ADF40KM-H:83.1° |
| Field of View (V) | IPC3618SR-ADF28KM-H:53.9° IPC3618SR-ADF40KM-H:48.0° |
| Field of View (D) | IPC3618SR-ADF28KM-H:103.6° IPC3618SR-ADF40KM-H:86.5° |
| DORI | Description |
| DORI Distance(Lens) | IPC3618SR-ADF28KM-H:2.8mm IPC3618SR-ADF40KM-H:4.0mm |
| DORI Distance(Detect) | IPC3618SR-ADF28KM-H:86.9m(285.1ft) IPC3618SR-ADF40KM-H:124.1m(407.3ft) |
| DORI Distance(Observe) | IPC3618SR-ADF28KM-H:34.8m(114.0ft) IPC3618SR-ADF40KM-H:49.7m(162.9ft) |
| DORI Distance(Recognize) | IPC3618SR-ADF28KM-H:17.4m(57.0ft) IPC3618SR-ADF40KM-H:24.8m(81.5ft) |
| DORI Distance(Identify) | IPC3618SR-ADF28KM-H:8.7m(28.5ft) IPC3618SR-ADF40KM-H:12.4m(40.7ft) |
| Illuminator | Description |
| Supplemental Light | IR |
| Illumination Distance(IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection) |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | Description |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ111 x 95mm (Φ4.4” x 3.7”) |
| Weight | 0.32kg (0.71lb) |
| Material | Metal |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
