L6

This is a Wi-Fi 6 wireless AP, designed for medium-density projects. It has 4 spatial streams, supports up to 512 simultaneous users, and has a coverage area of 145 m².

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

The Lysora L6 is a Wi-Fi 6 ceiling-mounted access point, designed for medium-density applications. It supports up to 512 users, with a maximum bandwidth of 2974 Mbps between the 2.4 GHz and 5 GHz bands. There are 4 spatial streams with a coverage area of 145 m² (1560 ft²).

This access point can be powered via PoE/PoE+ and consumes up to 18 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

Features – Wi-Fi 6 AX3000 Dual-Band Ceiling Mount Access Point

  • Wi-Fi 6 AX3000 dual-band ceiling mount access point with built-in antennas
  • 1 x 1GE LAN port
  • Dual-band 2.4 GHz/5 GHz
  • Compliant with 802.11ac and 802.11ax (Wi-Fi 5 & Wi-Fi 6)
  • Wireless data rate of up to 2974 Mbps
  • AP mode and routing mode
  • Layer 3 roaming
  • Unified networking and management based on Lysora Cloud App
  • PoE input and local power supply (PoE injector and DC adapter purchased separately)

L6 vs. L6Lite – Which One Do You Need?

The L6 and the L6Lite are both Wi-Fi 6 dual-band ceiling access points with 4 spatial streams and a single Gigabit port. The L6 is the higher-capacity model:

  • Simultaneous users: up to 512 (L6) vs. up to 256 (L6Lite)
  • Coverage area: 145 m² / 1560 ft² (L6) vs. 125 m² / 1345 ft² (L6Lite)
  • Wi-Fi class: AX3000, up to 2974 Mbps (L6) vs. AX1800, up to 1774 Mbps (L6Lite)
  • Power: up to 18 W via PoE/PoE+ (L6) vs. up to 12.95 W via PoE (L6Lite)

Choose the L6 for medium-density sites where many devices connect at once. The L6Lite is the more cost-effective choice for small to medium-density sites with fewer devices.

Need coverage outside? The L6Pro-T is the outdoor Wi-Fi 6 model, with an IP68 rating and up to 512 users.

Specification

Overview

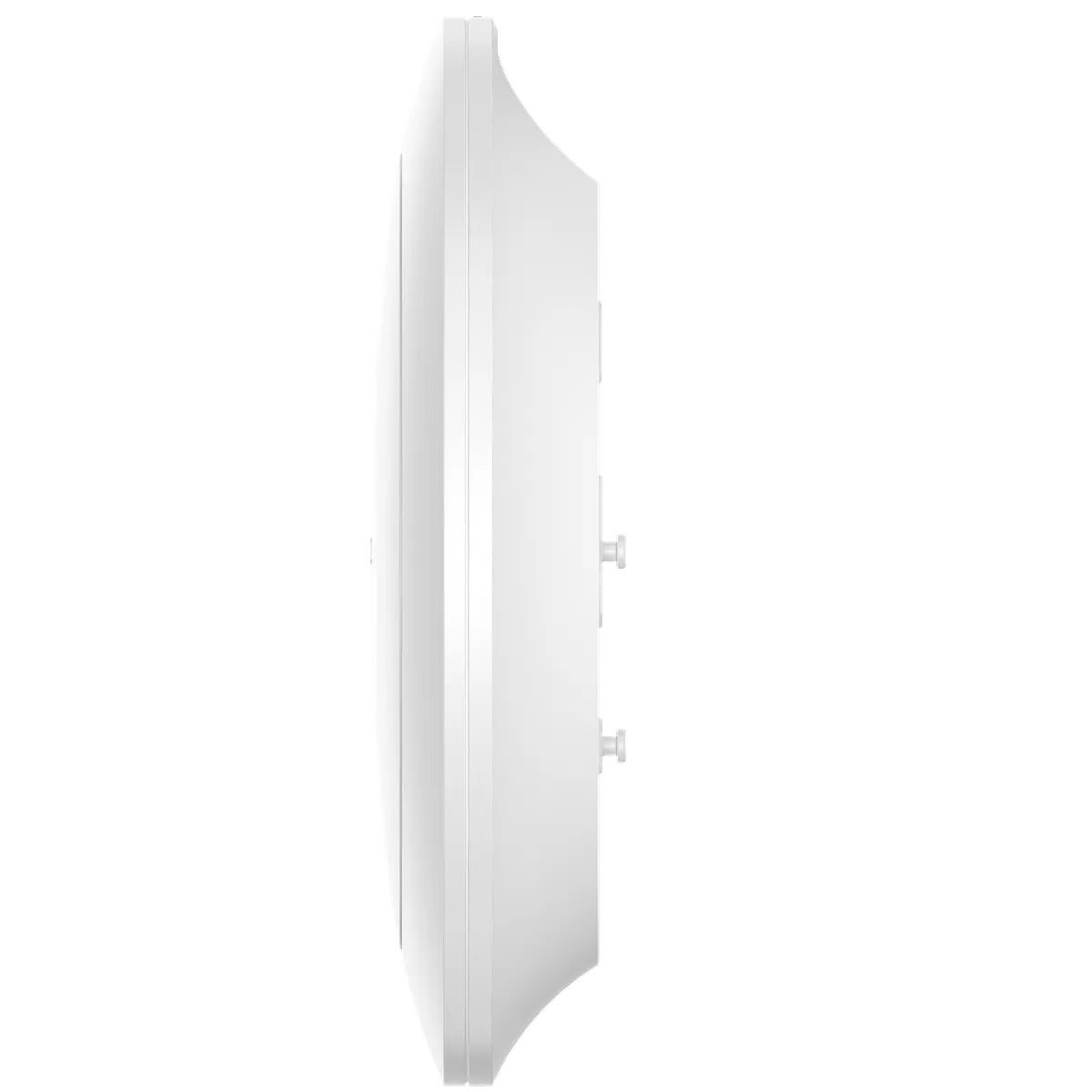

Dimensions Ø220 mm x 52.6 mm (Ø8.66 in. x 2.07 in.) (excluding the mounting bracket)
Weight ≤0.5 kg (1.10 lbs) (without packaging); ≤0.7 kg (1.54 lbs) (with packaging)
Coverage Area 145㎡ (1560.77 square ft.)

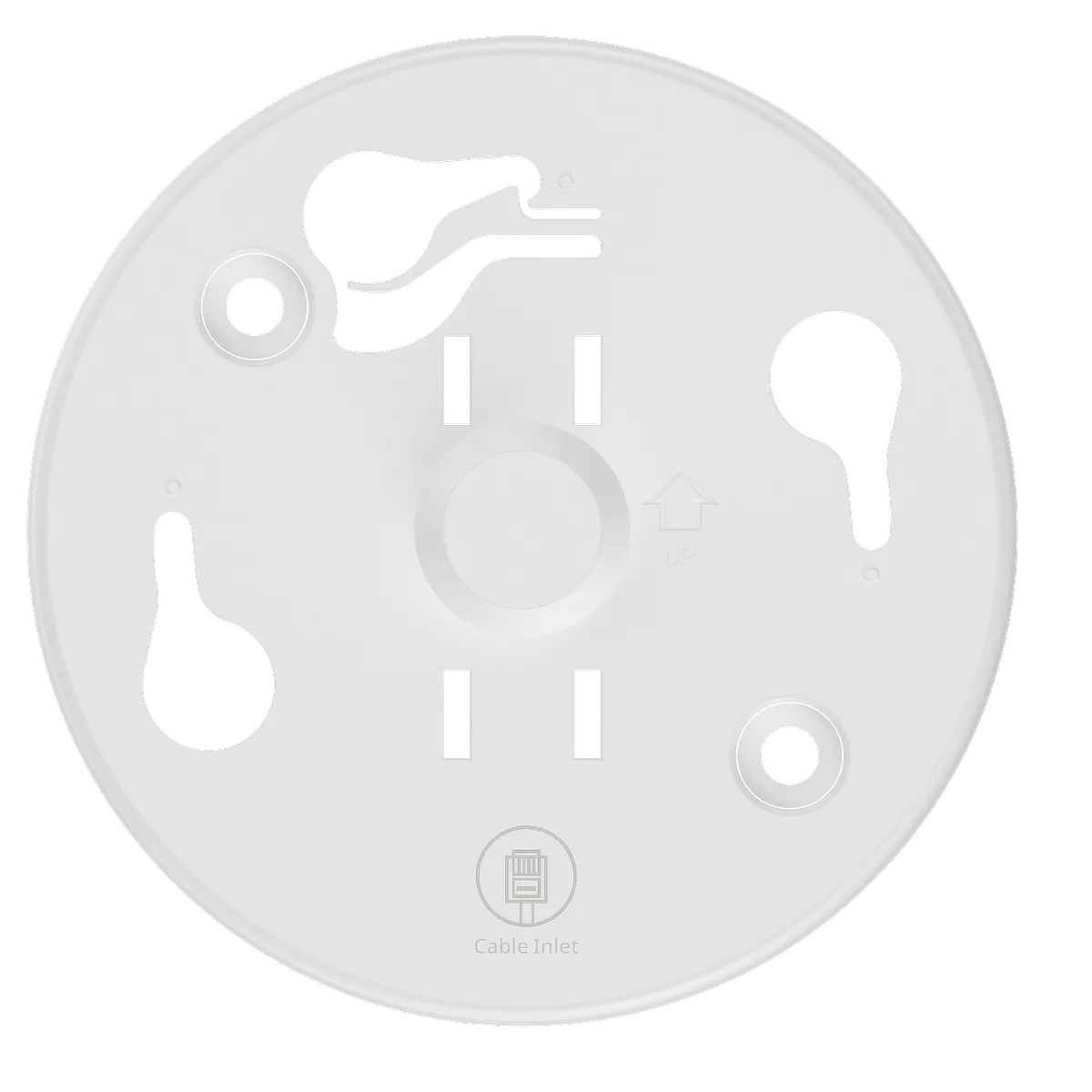

Mounting Type Ceiling Mount, Wall-mounted (Mounts Included)
Hardware & Networking

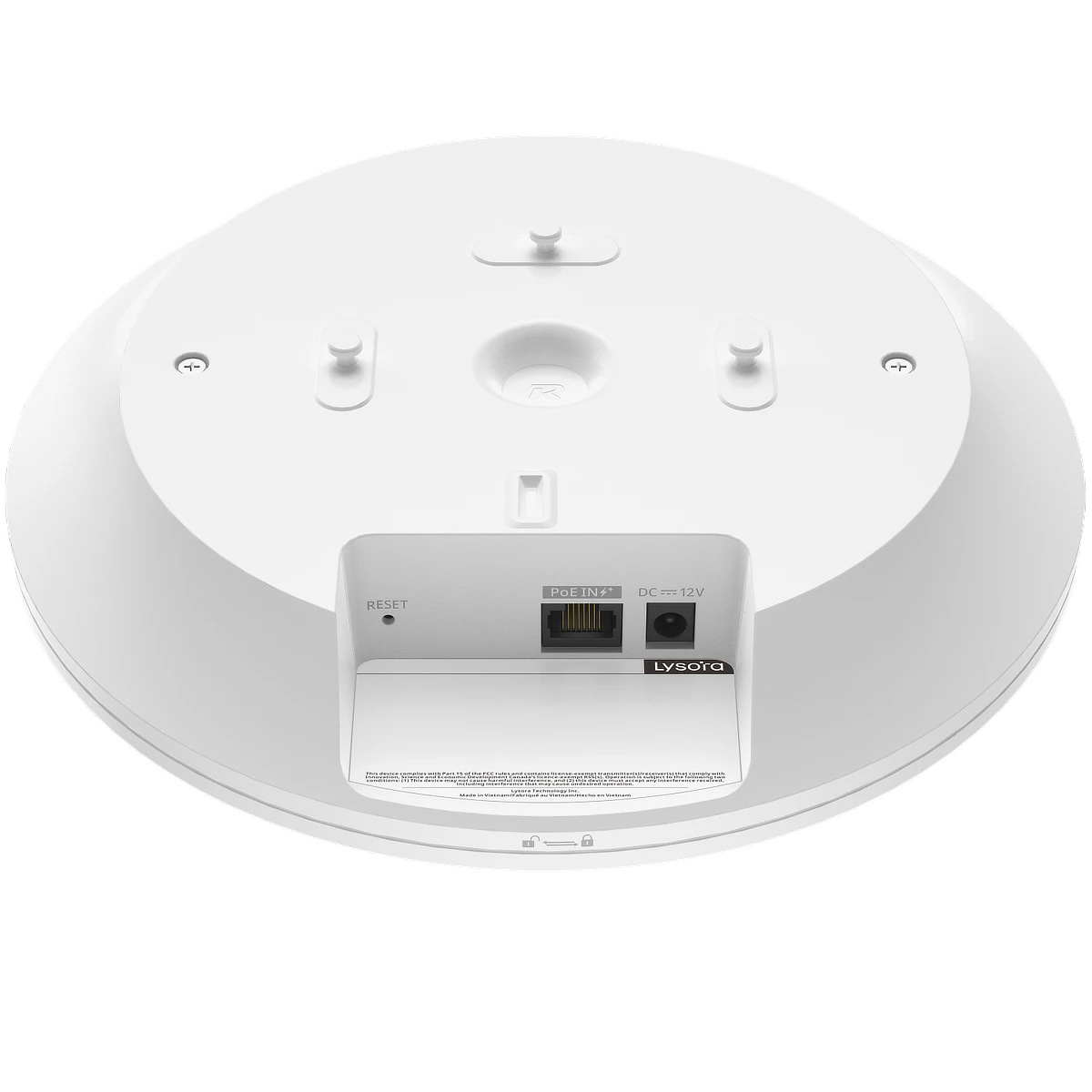

Networking Interface 1 x 1 GE RJ45 port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6)
Antenna Gain 2.4 GHz: 3.53 dBi, 5 GHz: 5.15 dBi
Max. Transmit Power 2.4 GHz: 28 dBm, 5 GHz: 29.7 dBm
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 573 Mbps, 5 GHz: 2401 Mbps
Max. Client Count 512 (2.4 GHz and 5 GHz enabled)
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO
Spatial Streams 4
Power Specifications
Power Consumption < 18 W
Power Method PoE/PoE+ or DC (12 V, 2A) (Adapter not included)
