L6Pro-T

This is an outdoor Wi-Fi 6 AP, designed for medium to high-density projects. It has 4 spatial streams, supports up to 512 simultaneous users, and has a coverage area of 200 m².

Product Overview

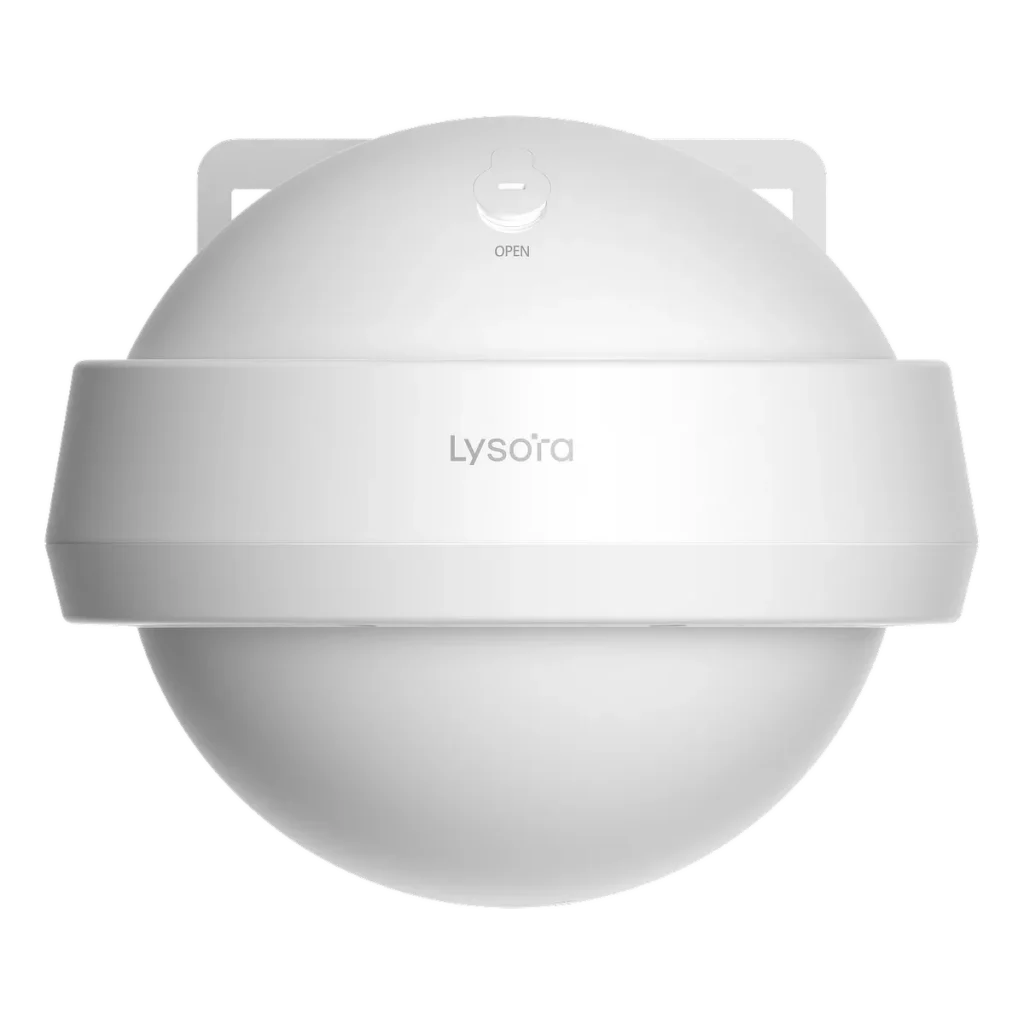

The Lysora L6Pro-T is an outdoor Wi-Fi 6 access point, designed for medium to high-density applications. It supports up to 512 users, with a maximum bandwidth of 2974 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 200 m² (2150 ft²).

This access point should be powered via PoE+ and consumes up to 24 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.

This AP has a weather rating of IP68 and surge protection of 4 kV.

Features – Wi-Fi 6 AX3000 Dual-Band Outdoor Access Point

  • Wi-Fi 6 AX3000 dual-band gigabit outdoor AP
  • IP68 rating
  • 1 x 10/100/1000BASE-T port supporting PoE In and 1 x 1GE SFP port
  • Dual-band 2.4GHz/5GHz
  • In compliance with 802.11a/b/g/n/ac (Wave1/Wave2)/ax
  • AP and routing mode
  • Layer 2 and Layer 3 roaming
  • Unified networking and management based on Lysora Cloud App
  • Local power supply and 802.3at PoE In

Specification

Overview
Dimensions Ø230 mm x 195 mm (Ø9.06 in. x 7.68 in.) (spherical device, excluding the mounting bracket)
Weight ≤1.4 kg (3.09 lbs) (without packaging); ≤4.62 kg (10.19 lbs) (with packaging)
Coverage Area 5 GHz max: 400 m (1312.34 ft.); 2.4 GHz max: 150 m (492.13 ft.); 5 GHz recommended: 200 m (656.17 ft.); 2.4 GHz recommended: 50 m (164.04 ft.)

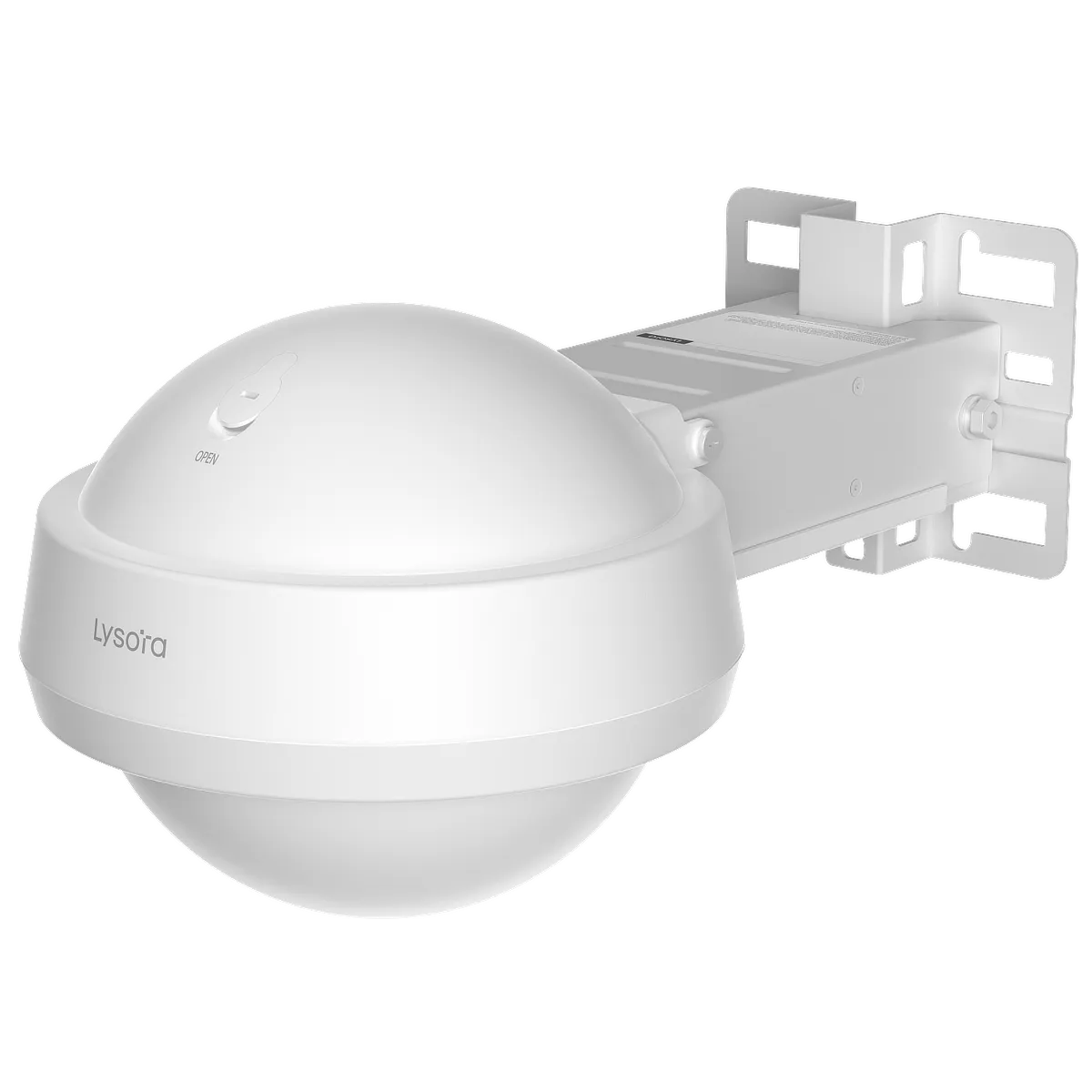

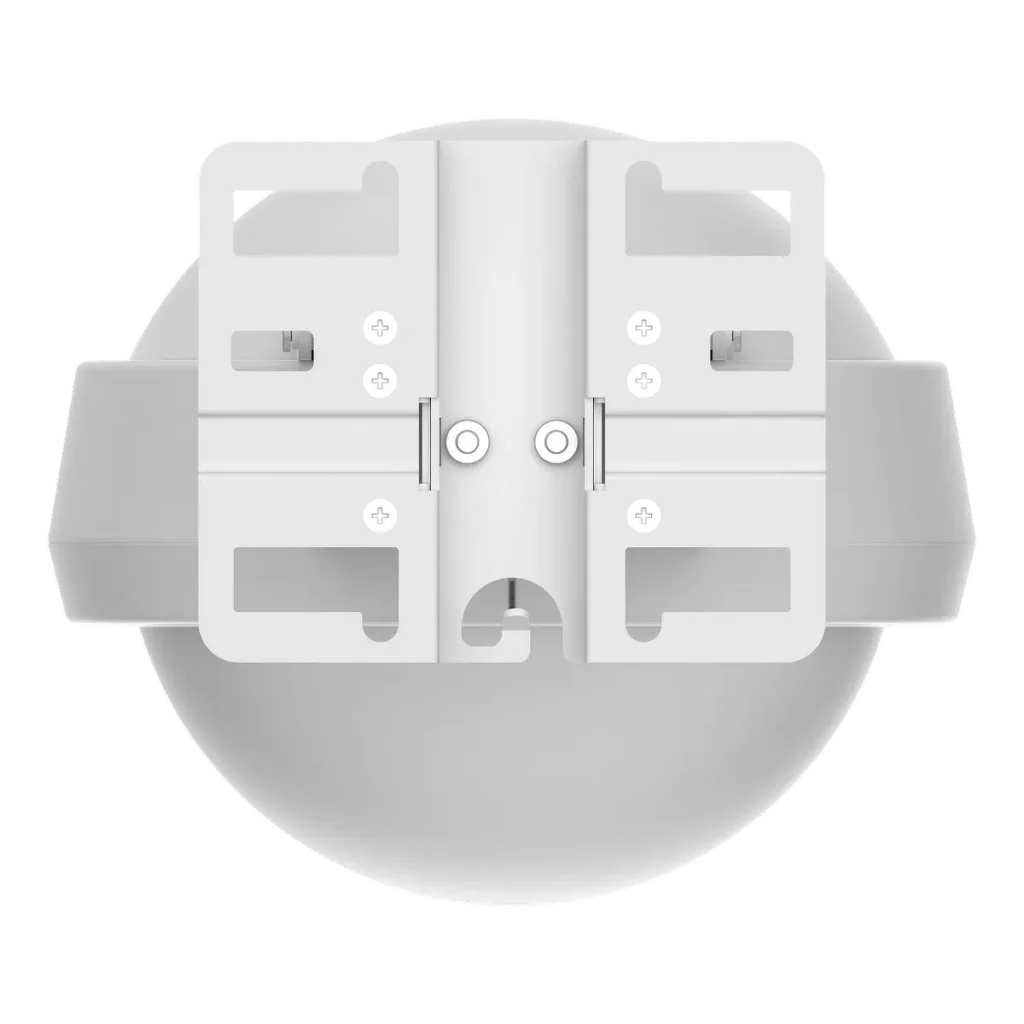

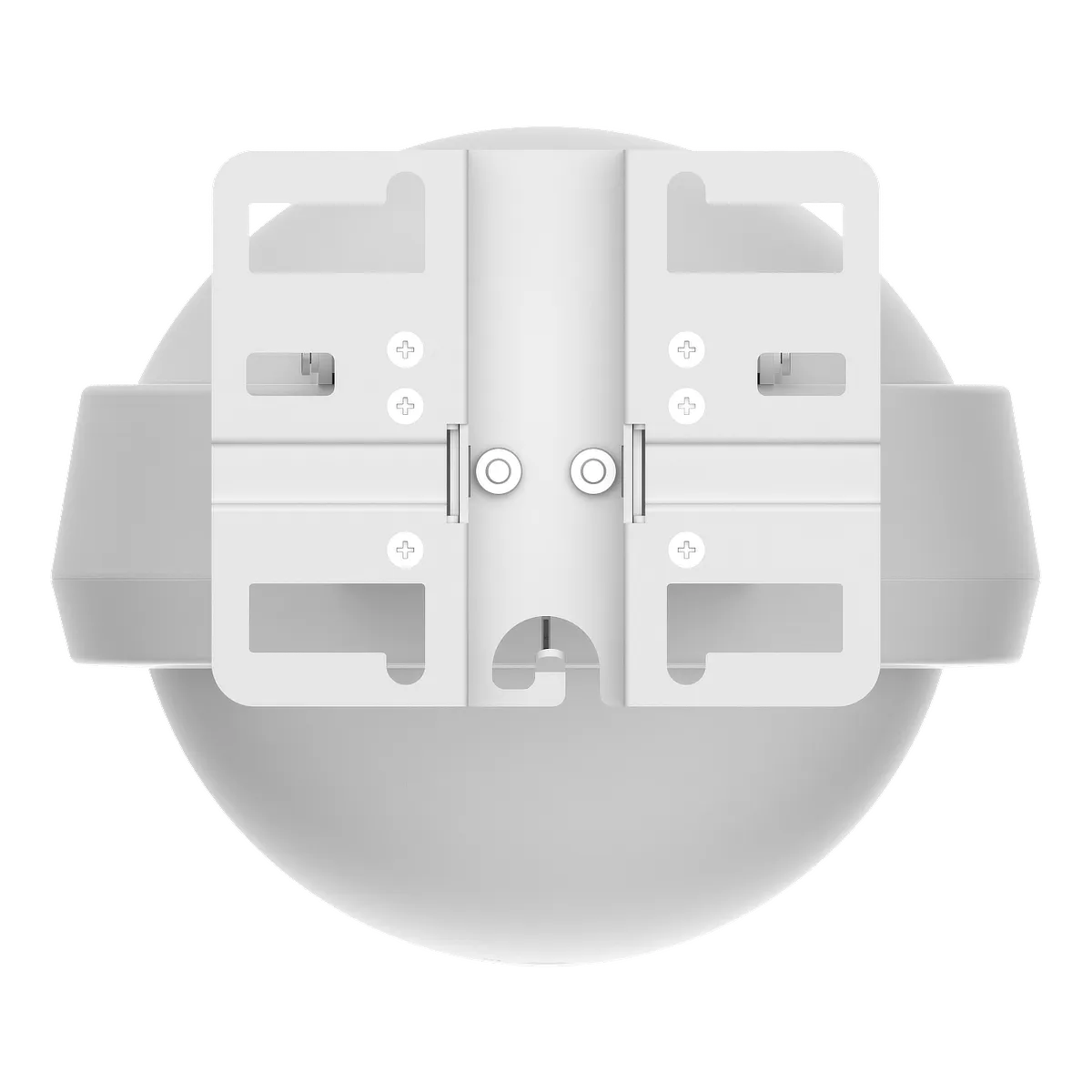

Mounting Type Wall, Pole (Mounts Included)
Hardware & Networking
Networking Interface 1 x 10/100/1000BASE-T port; 1 x 1 GE SFP port
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6)
Antenna Gain 2.4 GHz: 3.00 dBi, 5 GHz: 4.00 dBi
Max. Transmit Power 2.4 GHz: 22.82 dBm, 5 GHz: 20.41 dBm (US/Canada, conducted output power)
LED 1 × System Status LED
Button 1 × Factory Reset Button
Wireless Performance
Max Wireless Data Rate 2.4 GHz: 573 Mbps, 5 GHz: 2401 Mbps
Max. Client Count 512 (2.4 GHz and 5 GHz enabled)
MIMO 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO
Spatial Streams 4
Power Specifications
Power Consumption ≤ 24 W
Power Method IEEE 802.3af (PoE) or IEEE 802.3at (PoE+)
