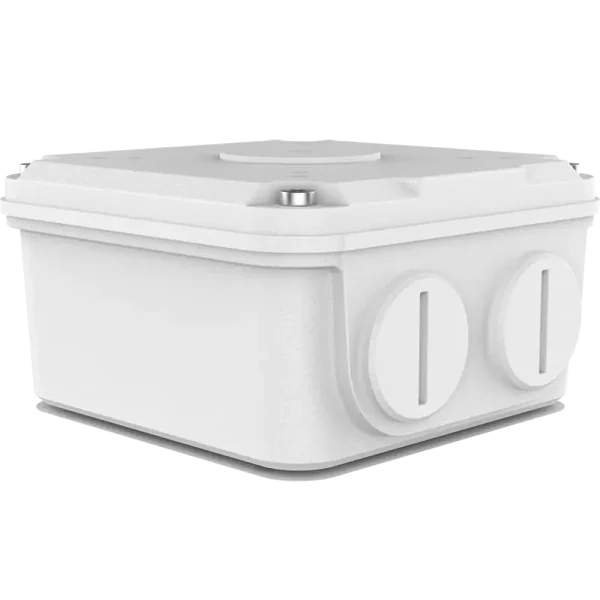

TR-JB06-A-IN

Junction box for IPC2B18SS-ADF28KMC-I1 and IPC232x series varifocal bullet cameras (two conduit outlets).

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

The TR-JB06-A-IN is a junction box for Uniview’s larger bullet cameras, including the Tri-Guard varifocal bullets like the IPC2B18SE-ADZKMC-WP-I1 and the TIC2A32SA thermal bullet. The bullet’s base bolts to the box, and the box holds the RJ45 connection and spare cable.

There are two ¾-inch NPS holes in the base for conduit, plus an extra outlet on the back for cable coming through the wall.

Specifications

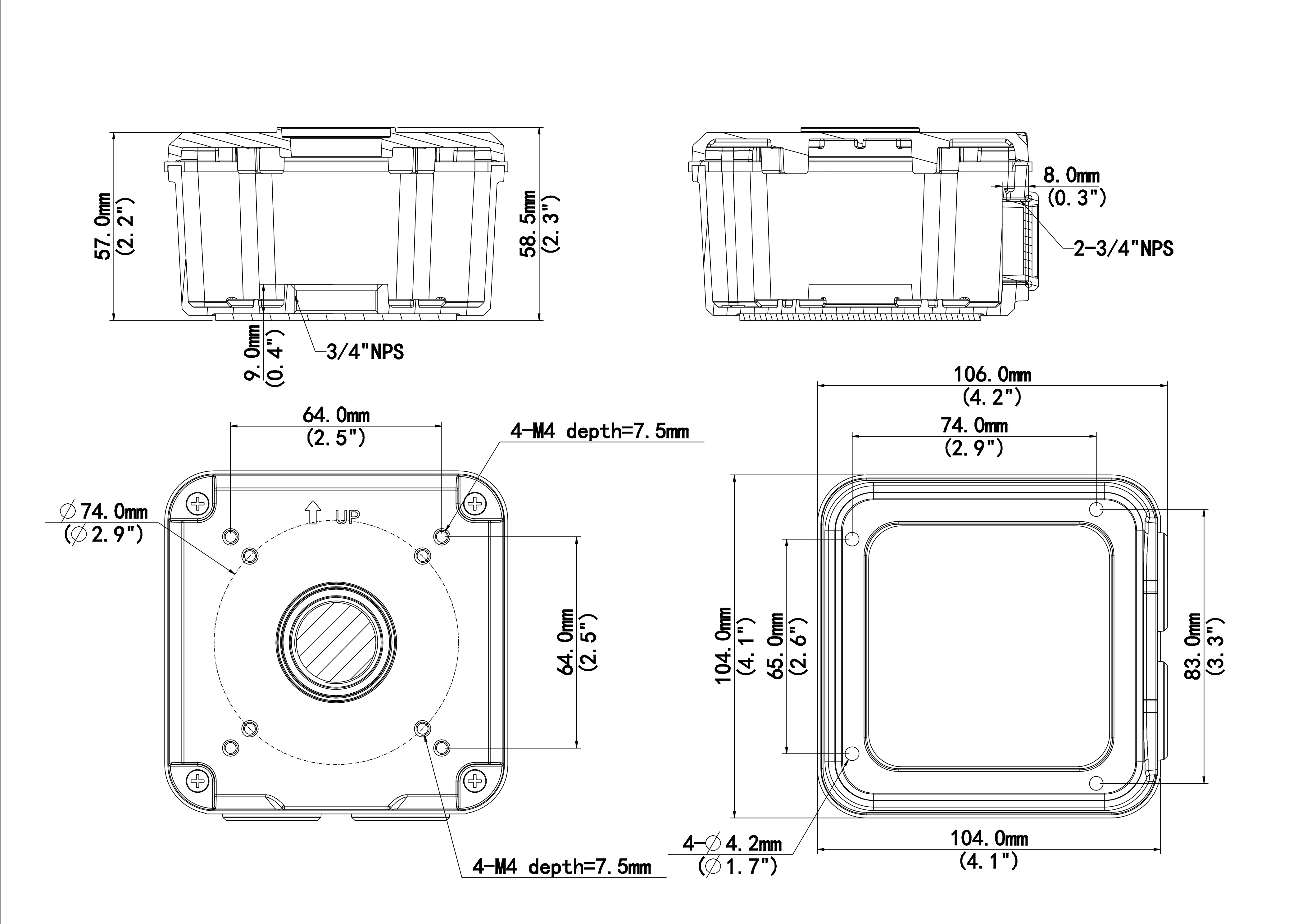

  • Dimensions: 104 × 104 × 55.5 mm (4.09 × 4.09 × 2.19 in)
  • Weight: 0.42 kg (0.93 lb)
  • Material: Aluminum alloy

The Compatible Cameras tab lists the cameras that work with this part.

Not sure which bracket you need? Our Uniview accessories guide explains how the different bracket types fit together, and Uniview’s Bracket Quick Selection Table matches each camera to its brackets.

Specification

TR-JB06-A-IN
Bracket
Application Outdoor or indoor cable junction box for IPC23XX OEM series(Extra back outlet)
Bracket Dimensions Φ104mm*104mm*55.5mm (4.09” x4.09”x2.19”)
Bracket Weight 0.42kg(0.93lb)
Bracket Material Aluminum alloy

Compatible Cameras

These Uniview cameras work with this accessory.
