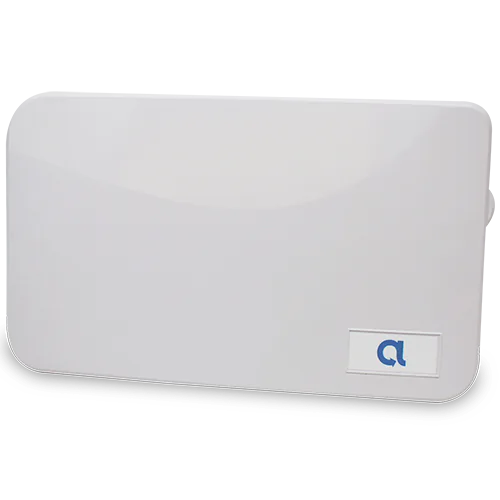

BAT-CONNECT-A

Universal Alarm Panel Communicator, works with Interlogix/GE, Honeywell, DSC, and Napco alarm panels, allows for easy takeovers and upgrading old panels

Description

Features – Alula BAT-Connect™ Communicator

  • Three network connectivity paths: cellular, ethernet, and Wi-Fi™
  • Provides interactive services, home automation, and the ability to update the user interface on existing panels without panel replacement
  • Full interactive support of Honeywell® Vista™, DSC® PowerSeries®, Interlogix™ NX, Interlogix Concord, and Napco™ panels
  • Telco event capture and reporting on most legacy panels using phone line emulation
  • Keyswitch arming for remote control of most legacy panels
  • Supports connected panel’s 2-way voice alarm verification
  • Optional remote control is available via the Alula Security app from the APP STORE™ or GOOGLE PLAY™
  • Alarm event reporting support for multiple partitions
  • Virtual keypad support for Honeywell, DSC, Interlogix NX, and Interlogix Concord
  • Support for native panel downloader using uDownloader for Honeywell Vista panels and DSC panels (requires PC-Link)

Specification

Physical
Housing Dimensions

Weight

Mounting Fasteners

Cover Securing Screw

8.5 x 5.0 x 1.3 inches (21.6 x 12.7 x 3.3 cm)

10.0 ounces (283.5 g)

#6 screws and wall anchors (included)

#4 screw (included)

Device Specification
Reported Indications

Current Draw

Input Voltage

Cover Tamper, Wall Tamper

Standby: 100mA, Maximum: 300mA

9 – 14 VDC

Environmental
Operating Temperature

Maximum Humidity

32°F to 120°F (0°C to 48.9°C)

85% non-condensing relative humidity

Accessories
RE048

RE036

RE036-0

RE046

ANTENNA-CBL-5

RE049

Antenna, LTE, MMCX/M R/A, 90mm Cable

Antenna, LTE, MMCX, 2.5m Cable

Antenna, LTE, MMCX, 0.3m Cable

Antenna Assembly, LTE, Sidemount, 1-piece bag

Cellular External Antenna Cable, 5 pieces

BAT-Connect, DSC PC-Link Cable

Models
BAT-CONNECT-V

BAT-CONNECT-A

BAT-CONNECT-A-INTL

BAT-Connect, Verizon™

BAT-Connect, AT&T™

BAT-Connect, AT&T, for markets outside of North America
