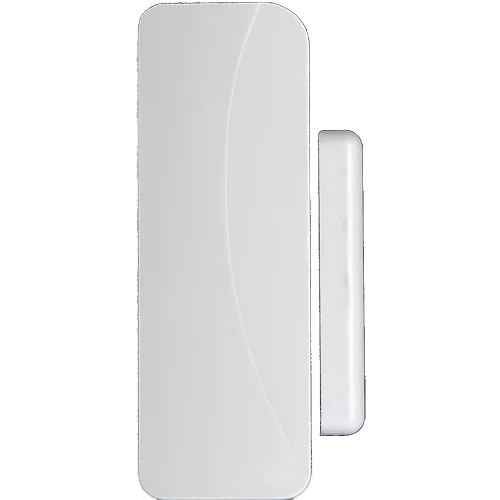

DWS-LL
Wireless Door/Windows Contact, Quick Peel & Press Mounting, Low-Profile Design, ~10 Year Battery Life
Description
Features – LongLife Door/Window Sensor, Connect+™ Encrypted
- Ten year battery life
- Quick peel and press mounting
- Secure encrypted wireless transmissions
Specification
| Physical | |
| Housing Dimensions
Weight with Battery Mounting Fastener |
2.90 x 1.04 x 0.39 inches (7.4 x 2.6 x 1.0 cm)
0.79 ounces (22.5 grams) High Bond Tape |
| Environmental | |
| Operating Temperature
Maximum Humidity |
32°F to 120°F (0°C to 49°C)
85% non-condensing relative humidity |
| Sensor Specifications | |
| Frequency
Replacement Battery Nominal Battery Life Battery Voltage Current Draw Transmitted Indications |
433.92 MHz
One Panasonic® CR2032 10 years 3.0 VDC (Nominal) 20 mA (Maximum), 0.5uA (Quiescent) Cover Tamper, Low Battery, Supervision |
| Certifications | |
| DWS-LL | FCC, IC |
