IPC3614SR3-ADF28KM-G

4MP Turret IP Camera, IR up to 30m, IP67, MicroSD Slot, Built-in Mic, Fixed 2.8mm lens

Description

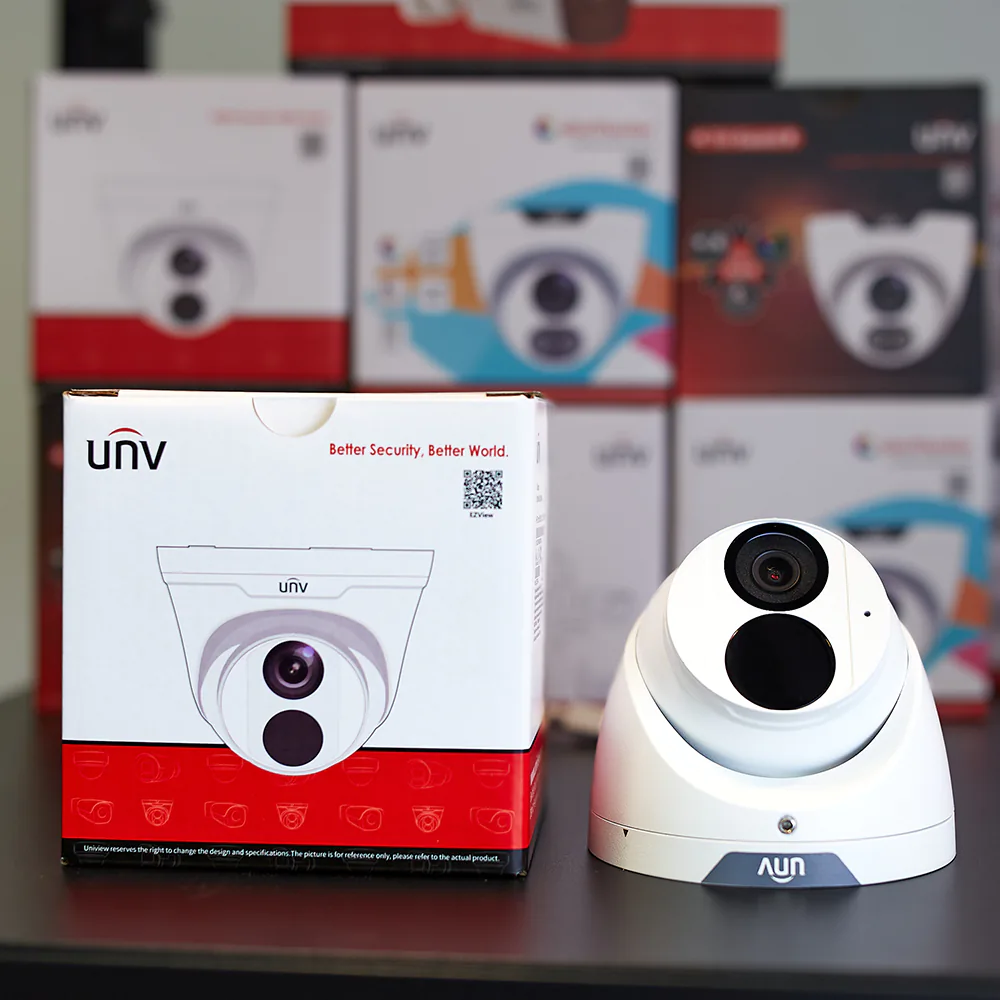

One of our most popular cameras is this Uniview 4MP Turret with a metal housing and built-in microphone. It has a 16:9 aspect ratio sensor that produces over four million pixels (2688×1520 resolution). Plug & play technology allows you to connect this to your Uniview NVR and see the live view within 60 seconds.

IPC3614SR3-ADF28KM-G has a fixed 2.8mm lens. This provides a wider field of view with a slightly lower pixel density.

Video Quality at Night

Features – 4MP HD IR Fixed Eyeball Network Camera

  • High quality image with 4MP, 1/3″CMOS sensor
  • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Lighthunter technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Specification

IPC3614SR3-ADF28K-G IPC3614SR3-ADF40K-G
Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Angle Of View (H) 101.1° 83.7°
Angle Of View (V) 55.3° 44.9°
Angle Of View (O) 111.1° 89.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Smart
Behavior Detection Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation EZView EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications UL: UL60950-1 FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions (Ø x H) Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight 0.43kg (0.95lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A
