IPC3234SB-ADZKM-DL-I1

This 4MP varifocal dome uses dual light illumination, combining infrared with white light so the camera can switch to full colour when it detects activity. The motorized 2.7-13.5mm lens gives a wide adjustment range, and the vandal-resistant IK10 housing suits exposed locations.

Product Overview

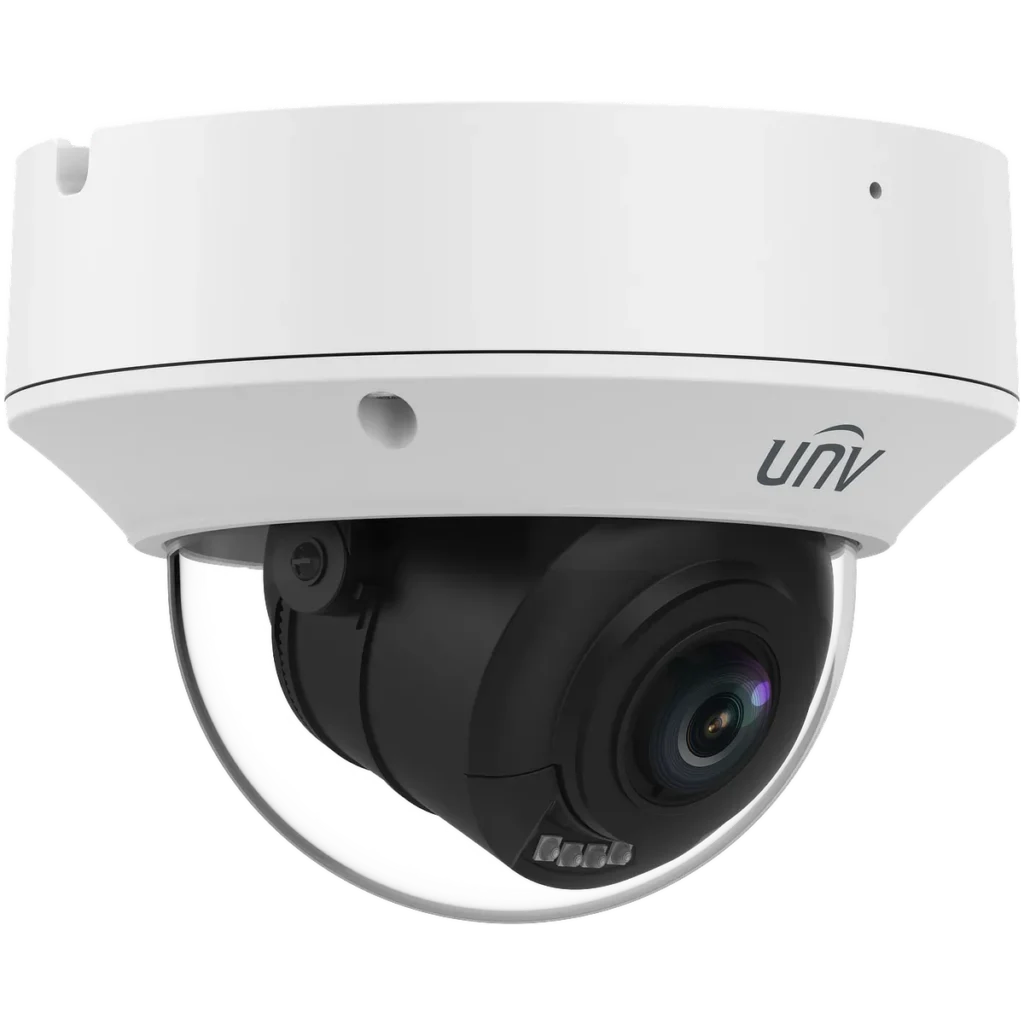

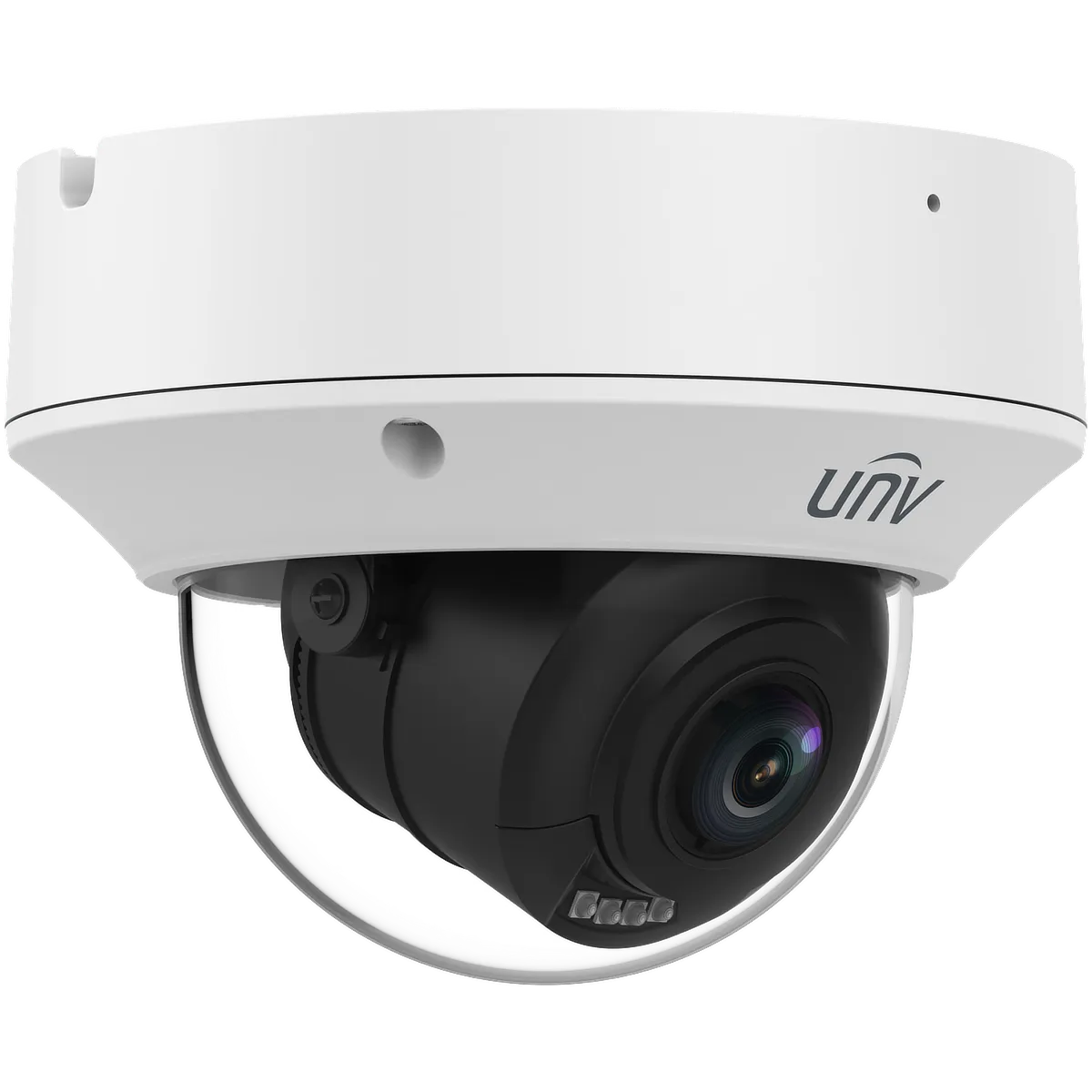

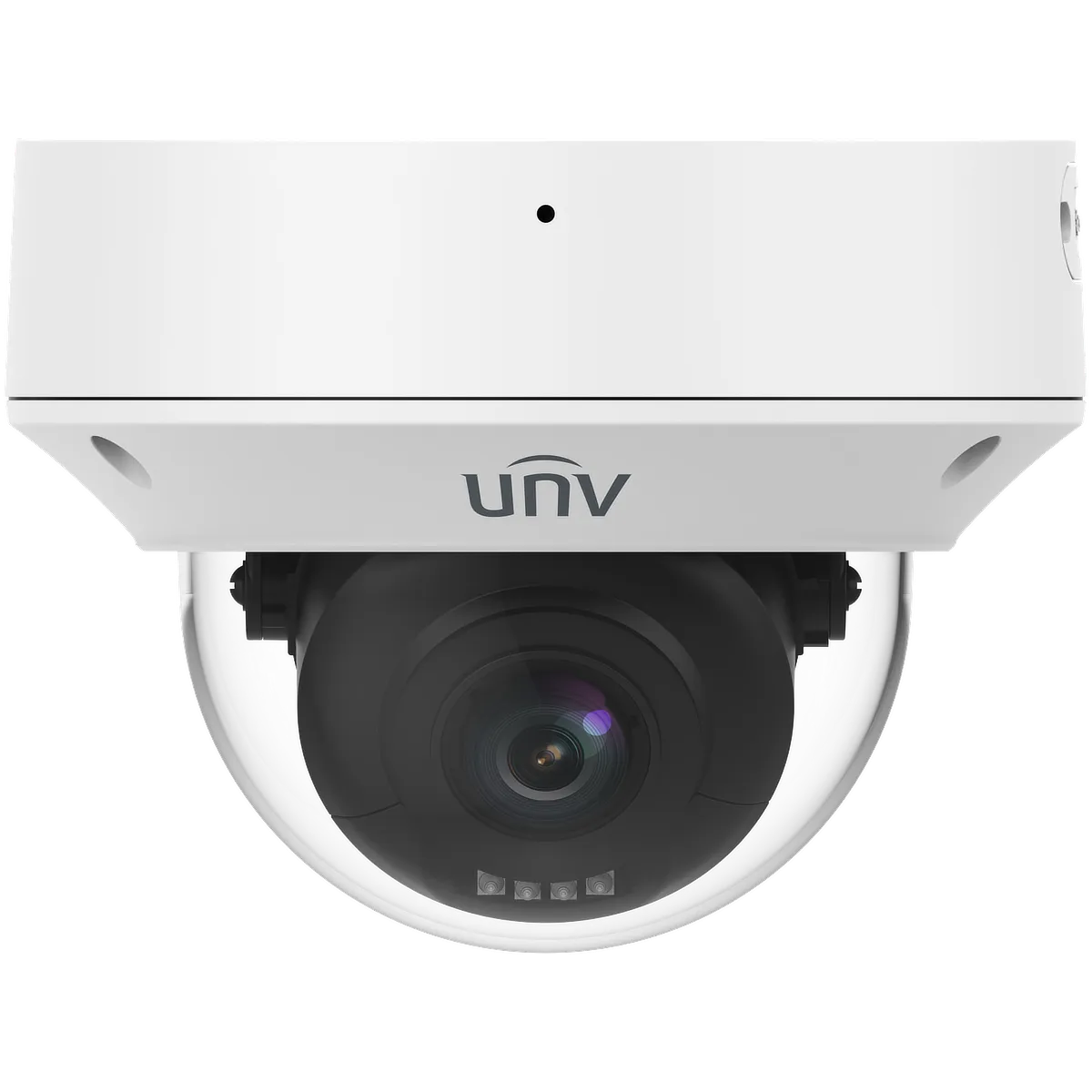

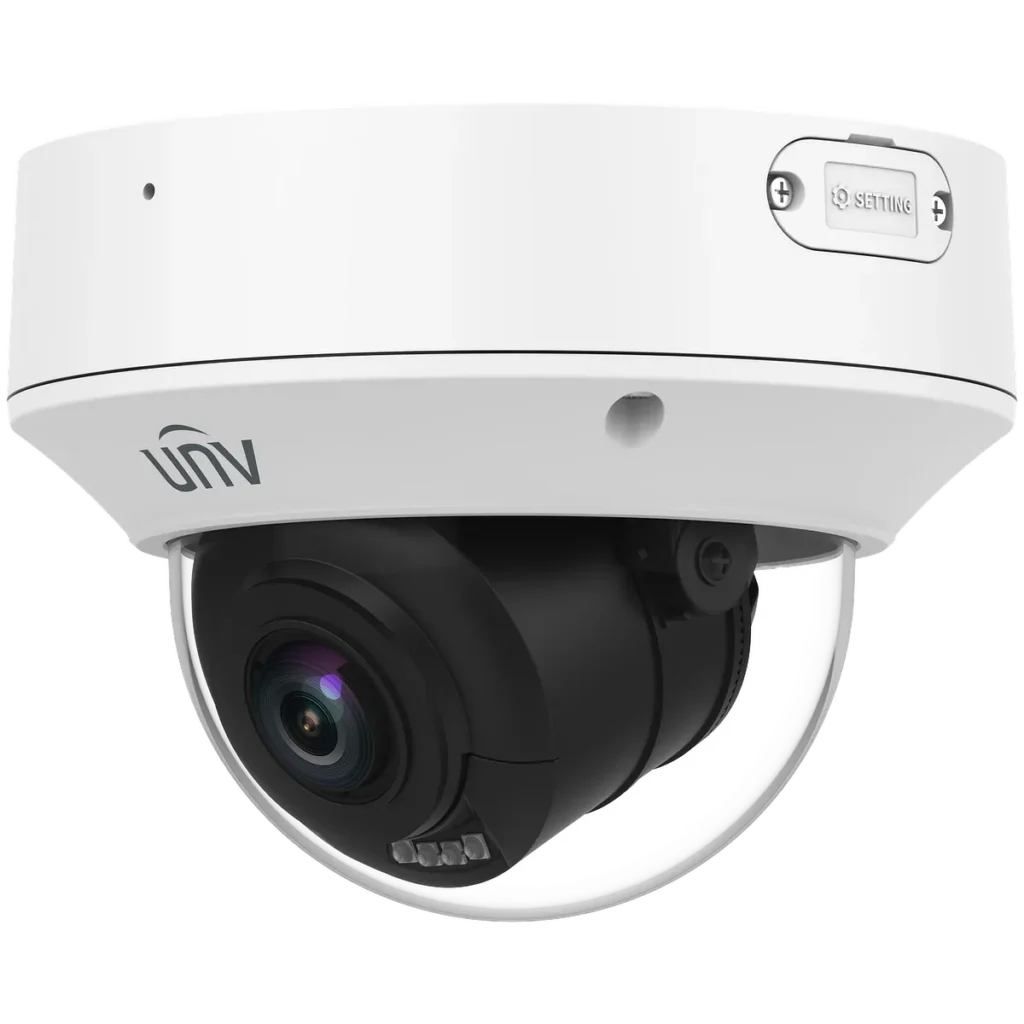

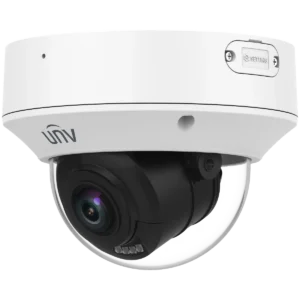

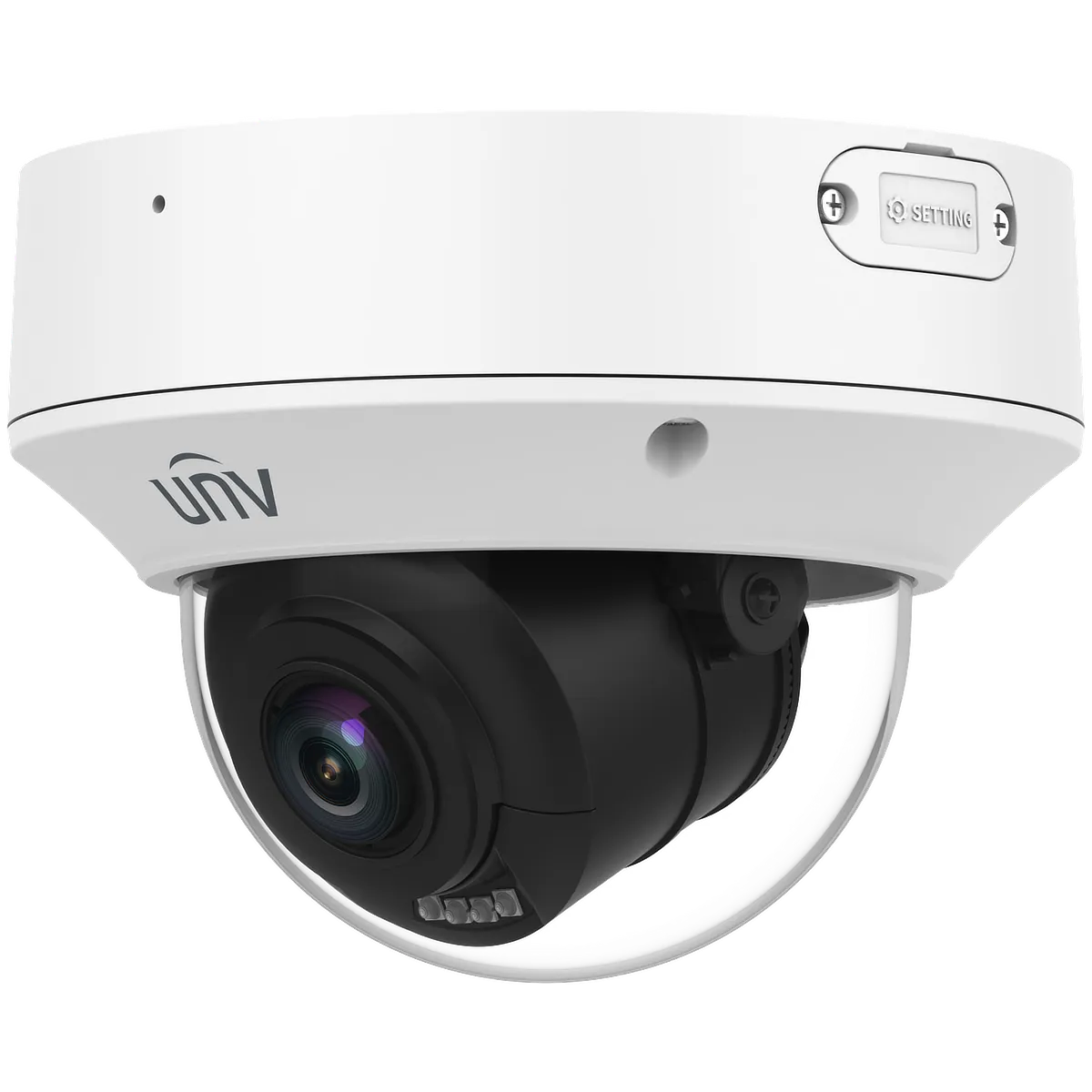

The IPC3234SB-ADZKM-DL-I1 is a 4MP motorized varifocal dome with a 5x zoom range. Dual light illumination pairs infrared with white LEDs, allowing the camera to record discreetly in infrared and switch to full colour when something needs identifying. The IK10-rated housing and IP67 sealing make it suitable for exposed and public-facing installations.

4MP Dual Light Varifocal Dome Network Camera

  • High quality image with 4MP, 1/2.7″ CMOS sensor
  • 4MP (2688×1520) @ 20fps; (2560×1440) @ 30fps
  • Ultra H.265, H.264, MJPEG
  • Dual light: white light + IR, up to 40m (131ft)
  • 120dB true WDR
  • 2.7-13.5mm motorized varifocal lens @F1.2
  • Smart functions (human and vehicle detection)
  • Built-in microphone
  • Alarm in/out 1/1, audio in/out 1/1, full harness
  • 0.002 lux minimum illumination
  • MicroSD card slot
  • IP67 and IK10 protection
  • Supports PoE power supply
  • Operating temperature -30°C ~ 60°C

Specification

Camera Description
Resolution 4MP
Sensor 1/2.7″ CMOS
Min. Illumination 0.002 lux
WDR 120dB
Video Compression Ultra H.265, H.264, MJPEG
Frame Rate 2688×1520: 20fps / 2560×1440: 30fps
Lens Description
Lens Type Motorized varifocal, 2.7-13.5mm
Iris F1.2
Illuminator Description
Type Dual light (white light + IR)
Range Up to 40m (131ft)
General Description
Audio Built-in microphone, audio in/out 1/1
Alarm Alarm in/out 1/1
Storage MicroSD card slot
Power DC12V & PoE
Protection IP67 & IK10
Operating Temperature -30°C ~ 60°C
