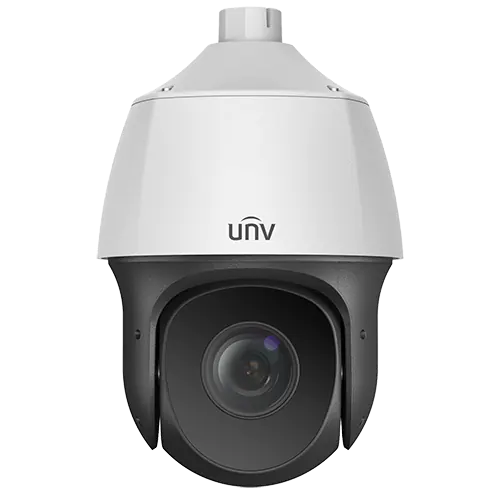

IPC6612SR-X33-VG

2MP LightHunter PTZ Dome Camera, IR up to 150m, IP66, MicroSD Slot, Varifocal 4.5-148.5mm lens (33x Zoom)

Category: Tags: , , ,

Description

Features – 2MP 33x Lighthunter Network PTZ Dome Camera

  • High quality image with 2MP,1/2.8’’ CMOS sensor
  • 1920*1080@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • 33X optical zoom allows for closer viewing of subjects
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • DC12V or PoE+(IEEE 802.3at) power supply
  • Audio 1 in and 1 out, Alarm 2 in and 1 out
  • Micro SD, up to 256GB
  • Smart IR, up to 150m (492 ft) IR distance
  • IP66 ingress protection

Specification

IPC6612SR-X33-VG
Camera
Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Min. Illumination Colour: 0.001 Lux (F1.5, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto, 1 ~ 1/100000s
WDR 120dB
S/N >52dB
Lens
Lens type 4.5~ 148.5mm, AF automatic focusing and motorized zoom lens
Optical Zoom 33
Iris Autol; F1.5 ~ F4.0
Angle of View (H) 56.23° ~ 2.57°
Angle of View (V) 33.46° ~ 1.44°
Angle of View (O) 69.16° ~ 3.03°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.5 72.9(239.3ft) 29.2(95.7ft) 14.6(47.9ft) 7.3(23.9ft)
148.5 2187.9(7178.3ft) 875.2(2871.3ft) 437.6(1435.7ft) 218.8(717.8ft)
Illuminator
IR Range Up to 150m (492 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 2MP(1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 2°/s ~ 75°/s
Preset speed: 180°/s
Tilt Range –15° ~ 90° (auto reverse)
Tilt Speed 2°/s ~ 75°/s
Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze Support
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 60950-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General

Power
DC12V±10% , PoE+ (IEEE802.3 at)
Power consumption: Max 25W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Ø220 x 370mm (Ø8.7” x 14.6”)
Weight 3.4kg(7.48lb)
Working Environment -40℃~65℃(-40°F ~ 149°F) , Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Reset button Support
Protection Ingress Protection: IP66
Vandal Resistant: N/A
