Product Overview
The TR-WE45-A-IN is Uniview’s standard wall bracket for their PTZ cameras. It’s an aluminum arm that holds the PTZ out from the wall so it can pan freely, with the cable running inside.

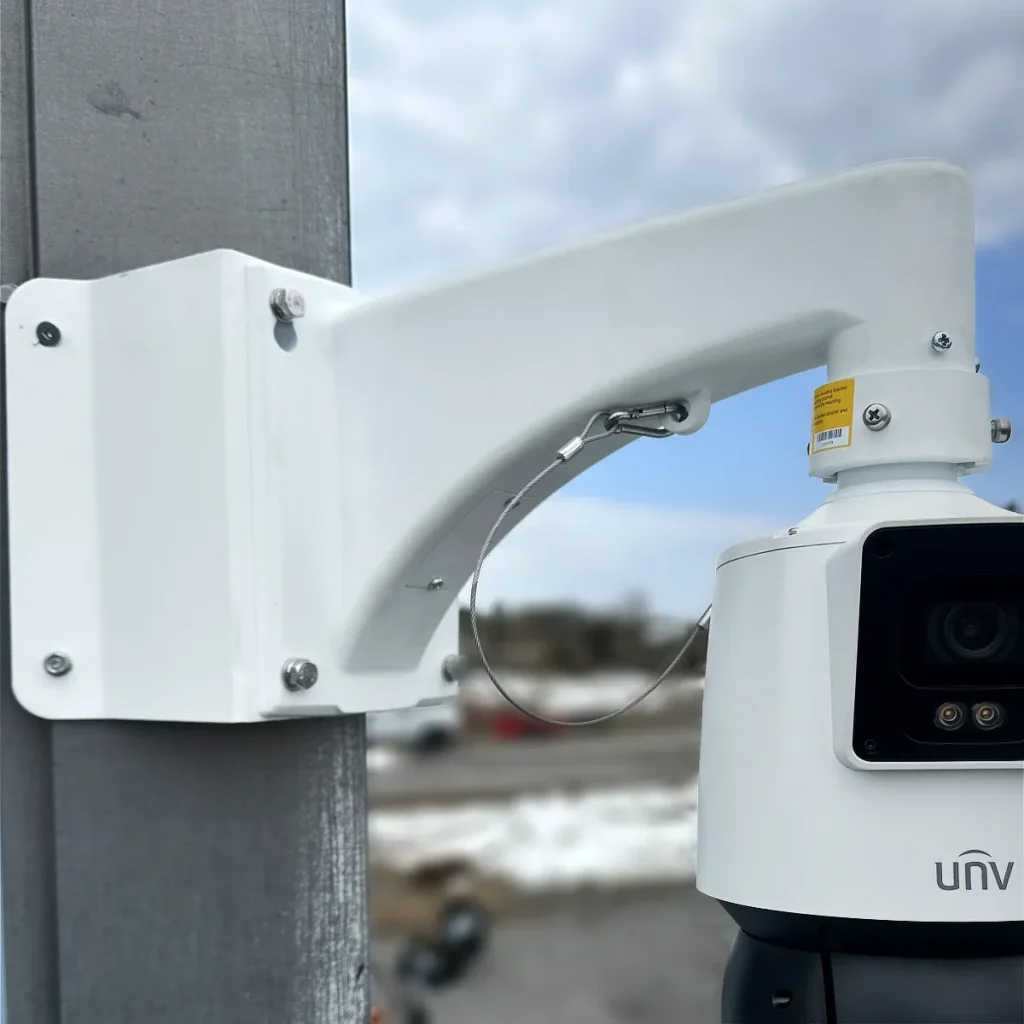

It’s also the base for other PTZ mounts: add the TR-UP08-A-IN for a pole or the TR-UC08-A-IN for a building corner. With a plate adapter such as the TR-UF45-H-IN, it can hold a fisheye or a 4-inch varifocal dome too.
Specifications

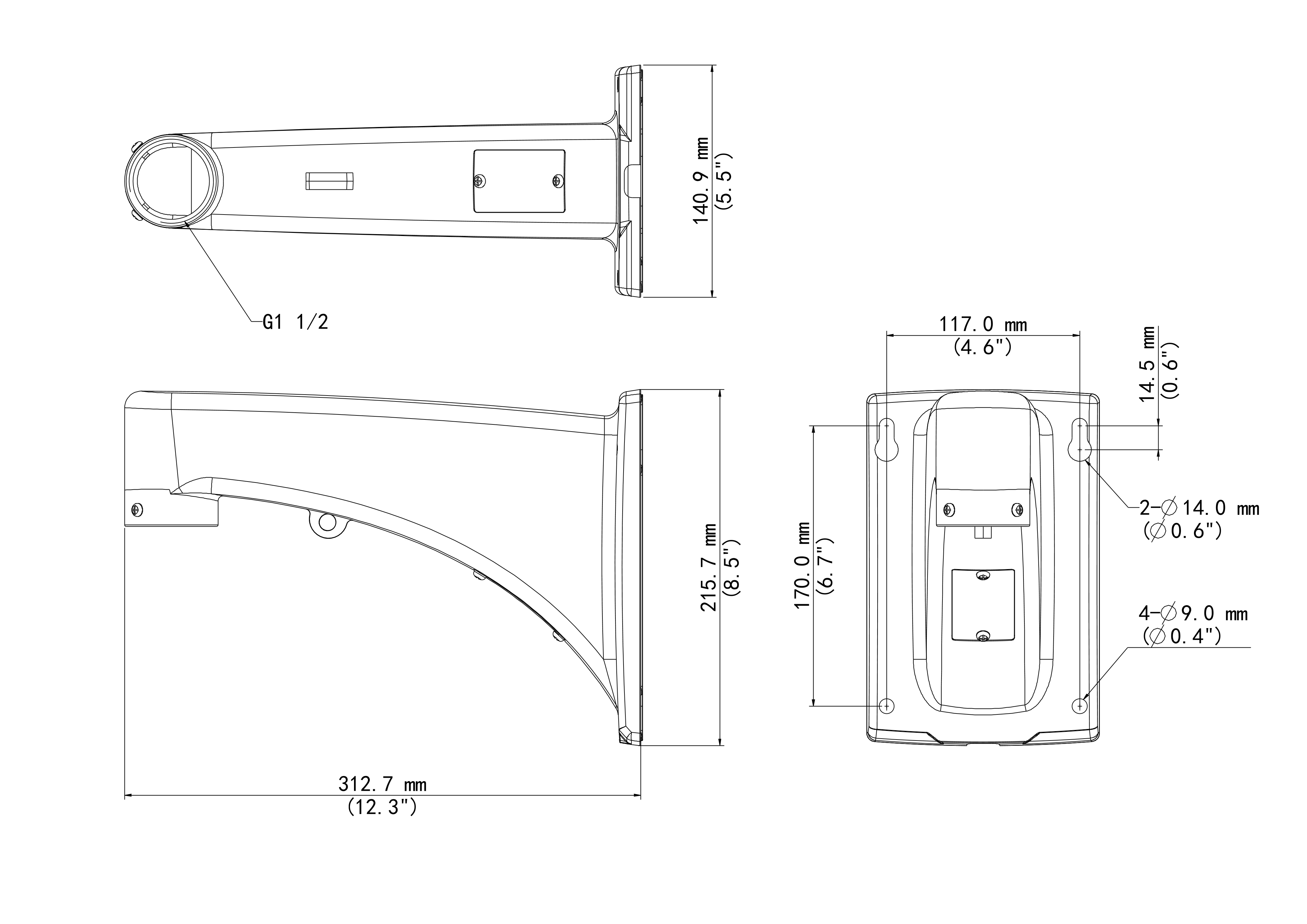

- Dimensions: 216 × 141 × 314 mm (8.5 × 5.6 × 12.4 in)
- Weight: 1.0 kg (2.2 lb)
- Material: Aluminum alloy
The Compatible Cameras tab lists the cameras that work with this part.
Not sure which bracket you need? Our Uniview accessories guide explains how the different bracket types fit together, and Uniview’s Bracket Quick Selection Table matches each camera to its brackets.
