IPC98344ER-GX42-E8-W-VH3

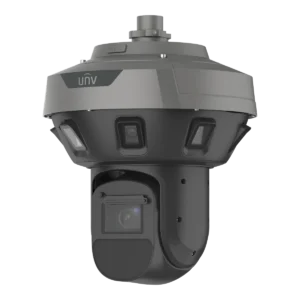

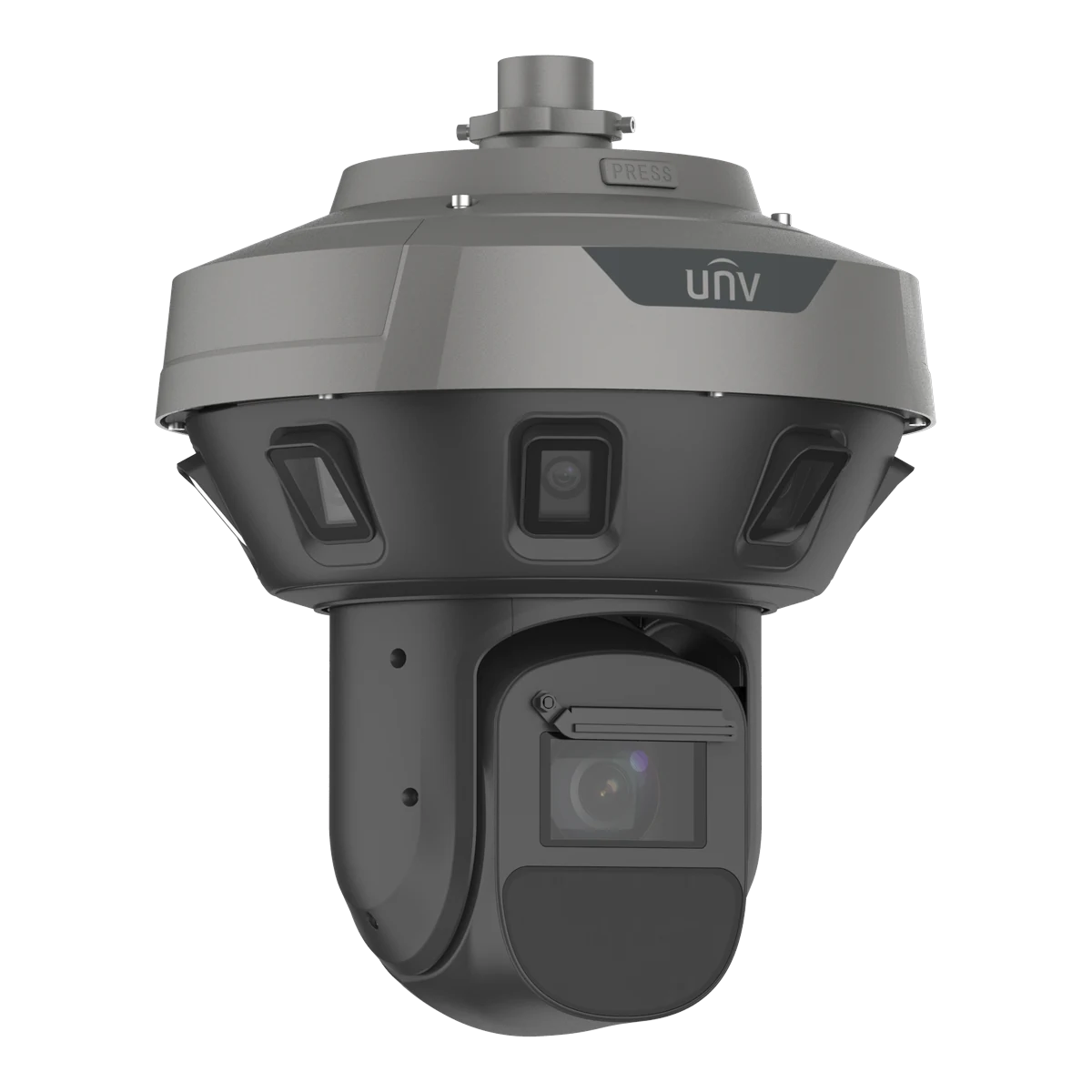

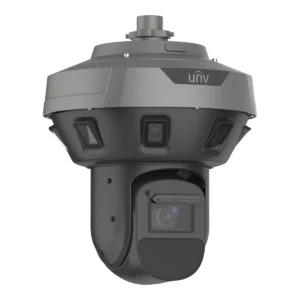

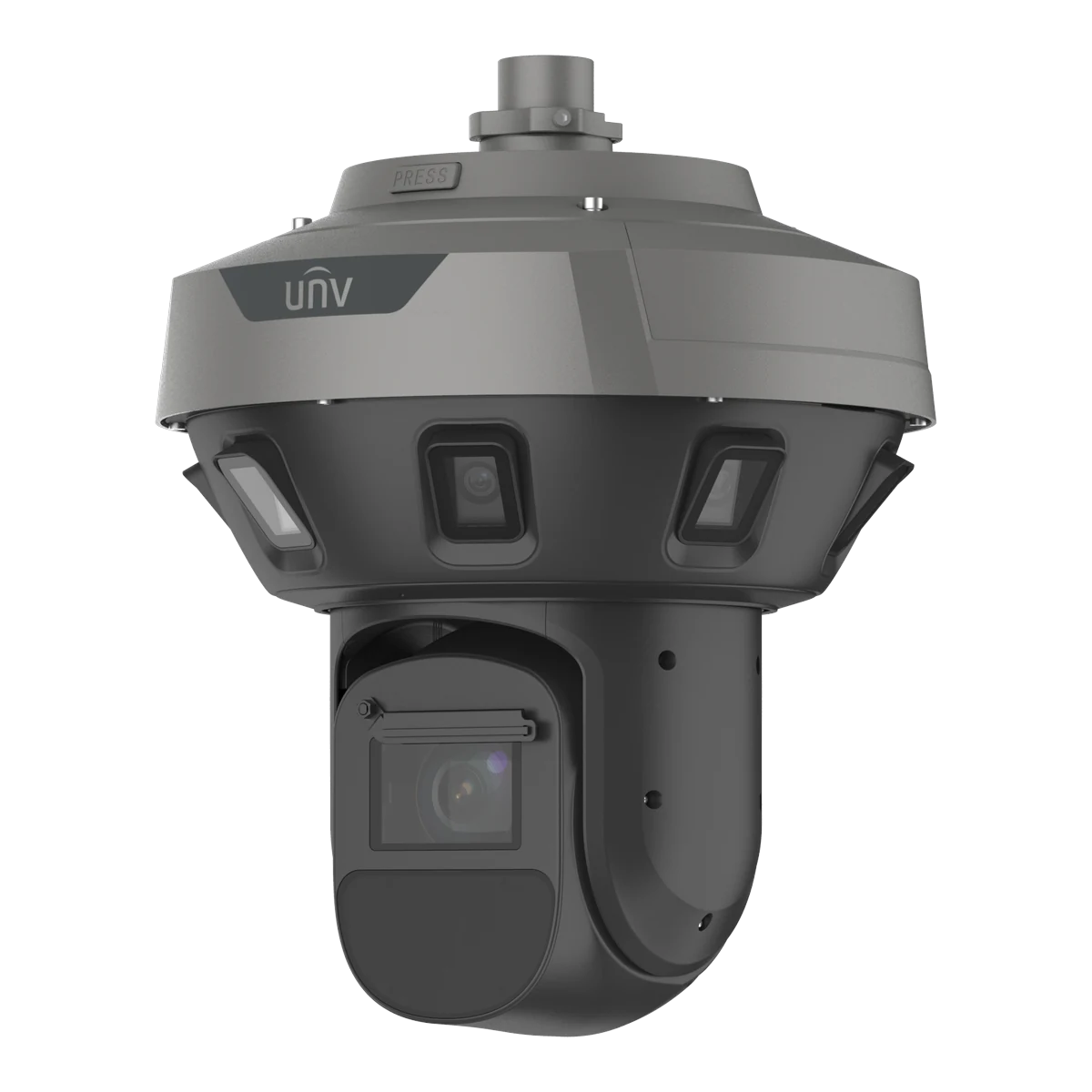

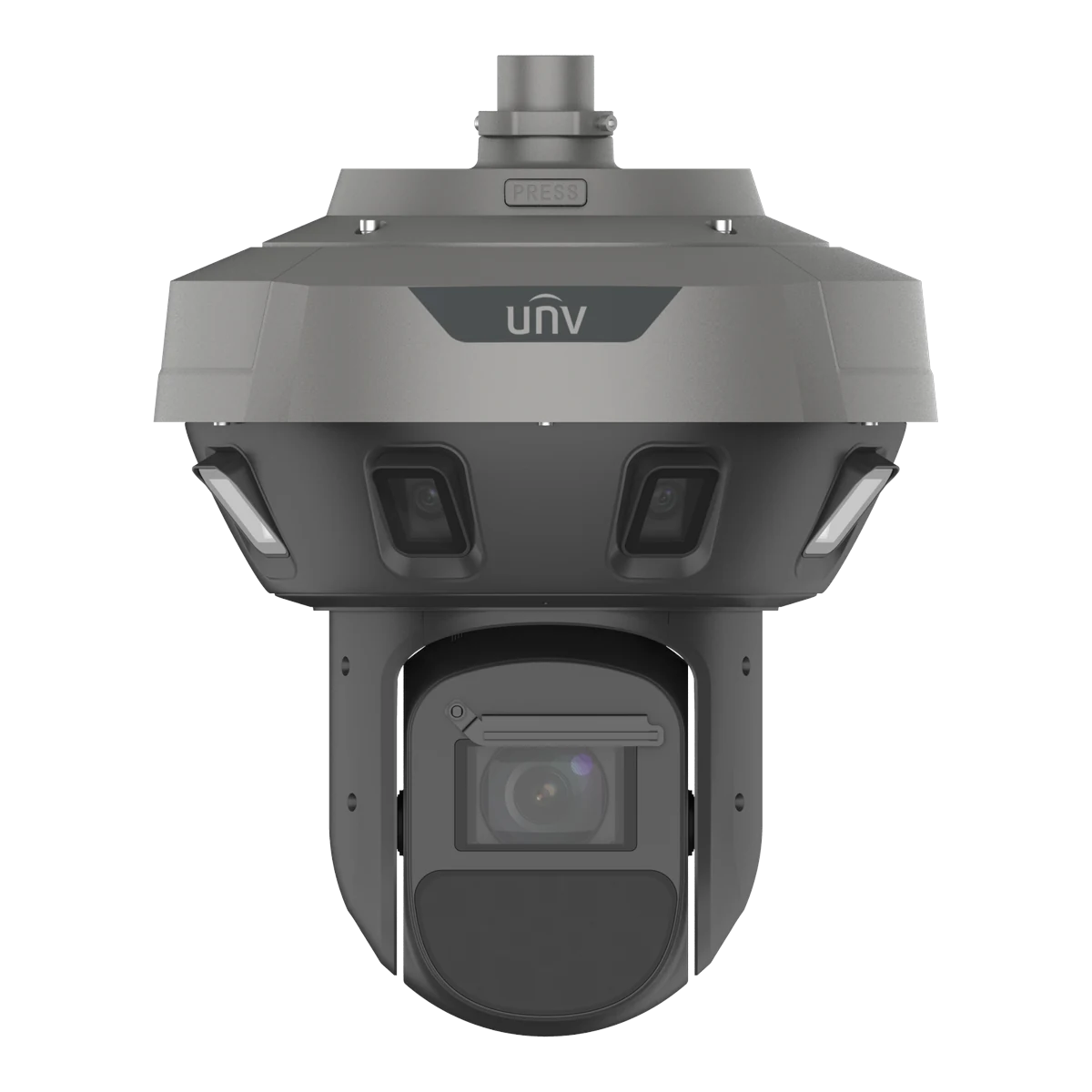

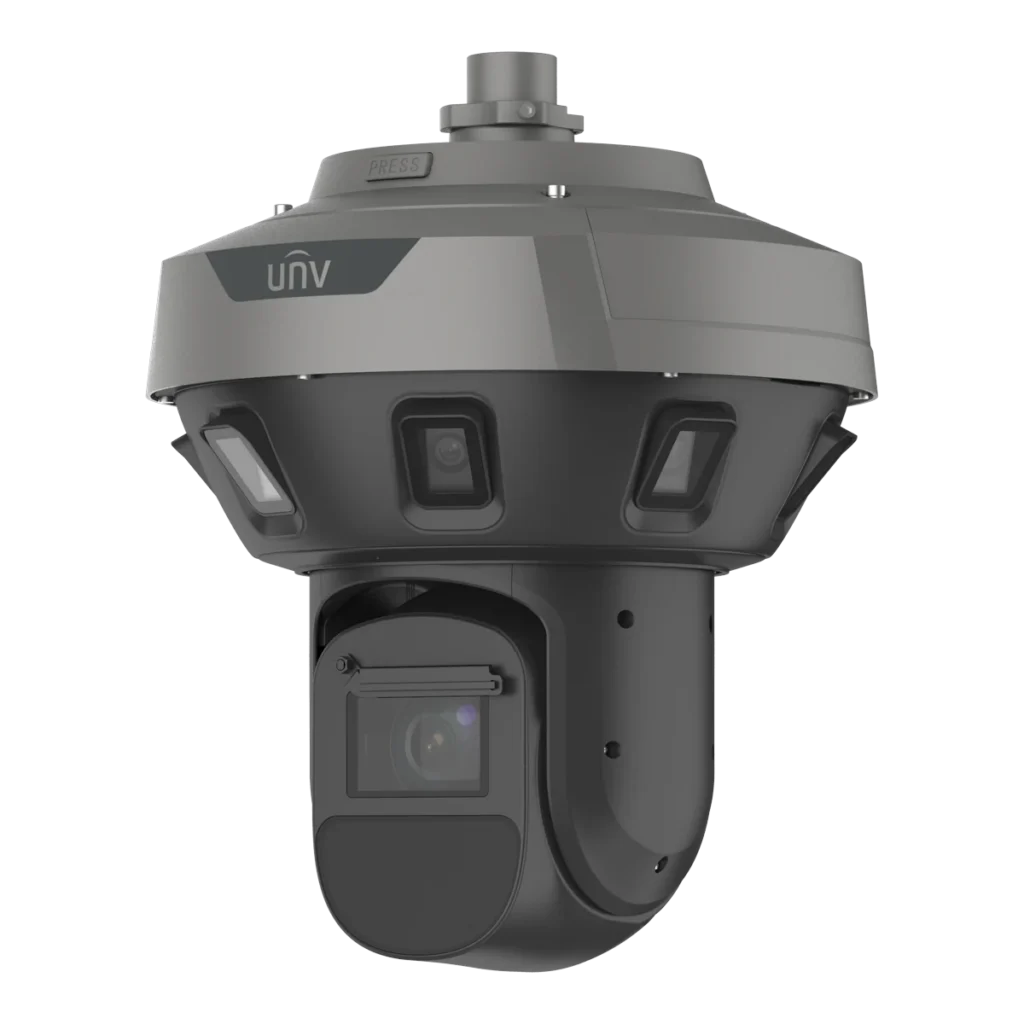

This is a Uniview Skyview panoramic camera with a PTZ built in. Eight sensors are stitched together into one 32MP, 360° panoramic view, while the 4MP PTZ camera underneath zooms up to 42x optically (6–252 mm) for tracking people and vehicles from extremely long distances.

Special orderWe can special order this item from our suppliers. Please contact us for lead time.

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

2-year Uniview warrantyWarranty & returns
Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

Uniview’s IPC98344ER-GX42-E8-W-VH3 combines two cameras on a single IP address. The upper housing holds eight 1/1.8″ sensors that are stitched into a 360° panorama at up to 32MP (11520 × 2700) @ 30fps. Below it, a 4MP PTZ camera with a 6–252 mm lens zooms 42x optically and has up to 500 metres (1640 ft) of IR. Because the panorama covers 110° vertically, there is no blind spot under the camera at a 6 m mounting height.

You can pick any target in the panoramic view, or draw a box around an area in the web interface, and the PTZ turns and zooms in on it automatically. Gyroscopic image stabilization, optical defog and heat haze reduction keep the zoomed image steady and clear at long range. The PTZ channel also supports face recognition, with up to 16 face libraries holding 100,000 faces.

This camera is weatherproof sealed with an IP67 rating and works from -40°C to 70°C. It is powered by 24 V or 36 V DC (up to 124 W), not PoE, and has both a Gigabit RJ45 port and an SFP fibre port. Uniview’s mounting brackets for it are the TR-WE45-S-IN (wall), TR-CE45-S-IN (pendant) and TR-UP08M-A-IN (pole).

Features – Skyview Panoramic 32MP + 4MP PTZ Camera

  • 8-sensor stitching for a full 360° panoramic view, with flexible 180°, 270° or 360° coverage
  • Panorama up to 11520 × 2700 @ 30fps; PTZ channel up to 2688 × 1520 @ 60fps
  • Panorama and PTZ on one IP address, with simultaneous live view of both
  • 1/1.8″ sensors for starlight-level low-light images; Wise-ISP on the PTZ channel
  • 42x optical and 8x digital zoom (6–252 mm), IR up to 500 m (1640 ft)
  • Dynamic stitching adjusts the seams in real time as the scene changes
  • Linked tracking: select a target in the panorama and the PTZ follows it, with handover tracking after it leaves the panorama
  • Smart intrusion prevention (cross line, intrusion, enter area, leave area) with human, vehicle and non-motor vehicle classification
  • People counting and crowd density detection
  • Face detection and face recognition: up to 16 face libraries, 100,000 faces
  • Gyroscopic image stabilization, optical defog, heat haze reduction and adaptive glare suppression
  • High-precision encoder (±0.04°), pan speed up to 300°/s, 1024 presets
  • Ultra 265, H.265, H.264, MJPEG
  • Alarm I/O 7/3, audio I/O 2/2, RS485, Gigabit RJ45 + SFP fibre port
  • Power supply: DC 24 V or DC 36 V (±25%), max 124 W
  • IP67 and IK10 (except the front window), -40°C to 70°C
  • NDAA compliant

Specification

Model IPC98344ER-GX42-E8-W-VH3
Channel Channel 1 (Panorama) Channel 2 (Detail)
Camera
Sensor 1/1.8″ CMOS
Max Resolution 32MP 4MP
Min. Illumination Color: 0.0003 Lux (F1.0, AGC ON) Color: 0.0005 Lux (F1.2, AGC ON)
IR: 0.0003 Lux (F1.2, AGC ON)
Shutter Auto/Manual, 1 to 1/100000 s
WDR N/A 120 dB
S/N > 56 dB
Lens
Optical Zoom N/A 42X
Digital Zoom N/A 8X
Field of View (H) 360° 59.47° to 2.20°
Field of View (V) 110° 35.62° to 1.24°
DORI
DORI Distance (Lens) 2mm 6.0mm to 252.0mm
Detect 31.0 m (101.8 ft) 93.1 m to 3724.1 m (305.5 ft to 12218.3 ft)
Observe 12.4 m (40.7 ft) 37.2 m to 1489.7 m (122.2 ft to 4887.3 ft)
Recognize 6.2 m (20.4 ft) 18.6 m to 774.8 m (61.1 ft to 2443.7 ft)
Identify 3.1 m (10.2 ft) 9.3 m to 372.4 m (30.5 ft to 1221.8 ft)
Illuminator
Light On/Off Control N/A Auto/Manual
Illumination Distance (IR) N/A 500 m (1640.4 ft)
Defog N/A Optical defog, Digital defog
White Balance Sodium lamp, Area white balance, Outdoor, Locked, Fine tune, Auto2, Auto
Flip N/A Flip vertical, 180°, Flip horizontal, Normal
HLC Support
BLC Support
Heatwave Reduction N/A Support
Wiper N/A Manual
Video
Video Compression H.265, H.264, MJPEG, Ultra 265
Frame Rate – Main Stream 32MP (11520 × 2700), 16MP (8192 × 1800), 6144 × 1200, 4096 × 900: max. 30 fps
4MP (2688 × 1520), 4MP (2560 × 1440), 1080P, 720P, D1: max. 60 fps
640 × 360: max. 30 fps
Frame Rate – Sub Stream 3072 × 676: max. 30 fps
1080P, 720P, D1, 640 × 360: max. 60 fps
Frame Rate – Third Stream 2048 × 450: max. 30 fps
720 × 576, 640 × 360, 704 × 288, 352 × 288: max. 60 fps
Video Bit Rate 128 Kbps to 16 Mbps
Video Stream Triple streams
Privacy Mask Up to 8 areas (8 blacks / 8 mosaics) 24 areas, up to 8 areas per scene
3D Privacy Mask N/A Support
U-code Support
ROI Up to 8 areas
OSD Up to 10 OSDs
Live View – Maximum Bitstream 20
Live View – Maximum Bandwidth 50 Mbps
Audio
Audio Compression G.711A, G.711U
Audio Bitrate 128 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz, 16 kHz
Intelligent
Linkage Function Support. Triggered by fixed lens via smart intrusion prevention function to track target
People Counting Support people flow counting and crowd density detection
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Auto Tracking N/A Support, target filtering: human, non-motor vehicle and vehicle
Recognition N/A Face Recognition: max. 16 face libraries, max. 100,000 faces in face library
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object left behind
General Function Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
PTZ
Pan Range N/A 0° to 360°
Pan Speed N/A 0.1°/s to 300°/s
Tilt Range N/A -15° to 90°
Tilt Speed N/A 0.1°/s to 180°/s
Number of Presets N/A 1024
Preset Patrol N/A 16 patrols, up to 64 presets for each patrol
Preset Image Freeze N/A Support
Home Position N/A Support
3D Positioning N/A Support
Snow Removal Mode N/A Support
Patrol Recording N/A Support
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, HTTPS, FTP
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security TLS 1.3, Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Alarm I/O 7/3
Audio I/O 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]
2 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Serial Port 1 × RS485
Network 1 × RJ45 10M/100M/1000M Base-TX Ethernet + 1 × 100M/1000M SFP
Certification
EMC CE EMC (EN 55032; EN 50130-4; EN IEC 61000-3-2; EN 61000-3-3)
FCC SDoC (47 CFR Part 15, Subpart B)
Safety UL (UL 62368-1)
CUL (CAN/CSA C22.2 No. 62368-1)
CE-LVD (EN IEC 62368-1)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863)
WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
IK10 (IEC 62262, Anti-Vandalism Except for the Front Window)
General
Power DC 24 V (±25%), DC 36 V (±25%)
Power Consumption ≤ 124 W
Power Interface Wires with cold-pressed terminal
Dimensions Φ380 × 475.9 mm
Weight 13.5 kg
Working Environment -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV
Reset Button Support
Web Client Language 22 languages
