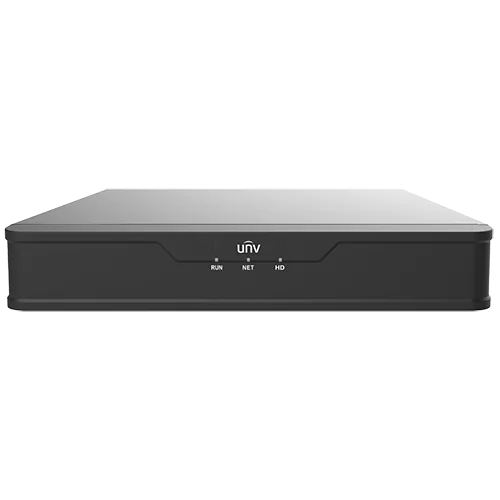

NVR301-04X-P4

4 CH | 4 PoE | 1xSATA | H.265/H.264 | P2P | HDMI/VGA Output | Up to 8MP

Discontinued: Replaced by updated model NVR501-04B-P4

Category: Tags: , ,

Description

Features – 4-ch 1-SATA Ultra 265/H.265/H.264 NVR

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 6 TB
  • Support cloud upgrade

Specification

Model NVR301-04X-P4
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “)
Weight (without HDD) 1kg (2.20 lb)
