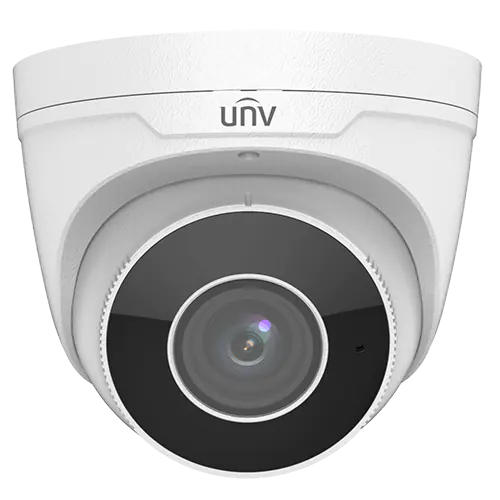

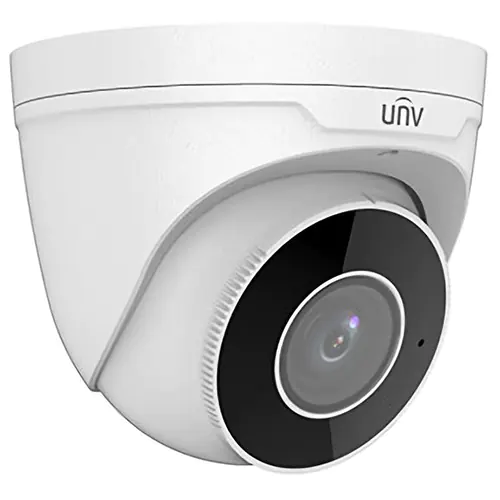

IPC3634SR3-ADZK-G
4MP Turret IP Camera, IR up to 30m, IP67, MicroSD Slot, Built-in Mic, Varifocal 2.8-12mm lens
Description
Uniview IPC3634SR3-ADZK-G is a motorized varifocal camera with a 4x zoom ratio. This eyeball turret camera provides sharp, clear images of a scene. It has a built-in microphone for capturing audio in the scene, providing valuable information during playback. Additionally, built-in IR provides illumination up to 30m in very dark environments.
The varifocal 2.8-12mm lens provides an adjustable field of view for capturing the best angle of any scene.
Features – 4MP WDR VF Eyeball Network IR Camera
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Specification
IPC3634SR3-ADZK-G | ||||||||||
Camera | ||||||||||
Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | |||||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||
DORI Distance | > Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||||
12 | 180 | 72 | 36 | 18 | ||||||
Angle of View (H) | 102.79°~ 30.86° | |||||||||
Angle of View (V) | 54.50°~ 17.49° | |||||||||
Angle of View (O) | 106.94°~35.49° | |||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR |
|||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
Digital Noise Reduction | 2D/3D DNR | |||||||||
S/N | >56dB | |||||||||
IR Range | Up to 40m (131ft) IR range | |||||||||
Wavelength | 850nm | |||||||||
IR On/Off Control | Auto/Manual | |||||||||
Defog | Digital Defog | |||||||||
WDR | 120dB | |||||||||
Video | ||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
9:16 Corridor Mode | Supported | |||||||||
OSD | Up to 4 OSDs | |||||||||
Privacy Mask | Up to 4 areas | |||||||||
ROI | Up to 8 areas | |||||||||
Motion Detection | Up to 4 areas | |||||||||
Image | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
Digital Noise Reduction | 2D/3D DNR | |||||||||
Smart IR | Supported | |||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
Dewarping | N/A | |||||||||
HLC | Supported | |||||||||
BLC | Supported | |||||||||
Audio | ||||||||||
Audio Compression | G.711 | |||||||||
Suppression | Supported | |||||||||
Sampling Rate | 8KHZ | |||||||||
Storage | ||||||||||
Edge Storage | Micro SD, up to 256GB | |||||||||
Network Storage | ANR, NAS(NFS) | |||||||||
Smart | ||||||||||
Behavior Detection | Cross line, intrusion(based on human body detection) | |||||||||
motion detection, tampering alarm, audio detection | ||||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||||
Network | ||||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP | |||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
Client | EZStation EZView EZLive | |||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
Interface | ||||||||||
Network | 10M/100M Base-TX Ethernet | |||||||||
Built-in Mic | Supported | |||||||||
Certifications | ||||||||||
Certifications | UL: UL60950-1 FCC: FCC Part 15 | |||||||||
General | ||||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
Power consumption: Max 8.0W | ||||||||||
Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | |||||||||
Net Weight | 0.67kg (1.48lb) | |||||||||
Material | Metal | |||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Surge Protection | 6KV | |||||||||
Ingress Protection | IP67 | |||||||||
Reset Button | Supported |
