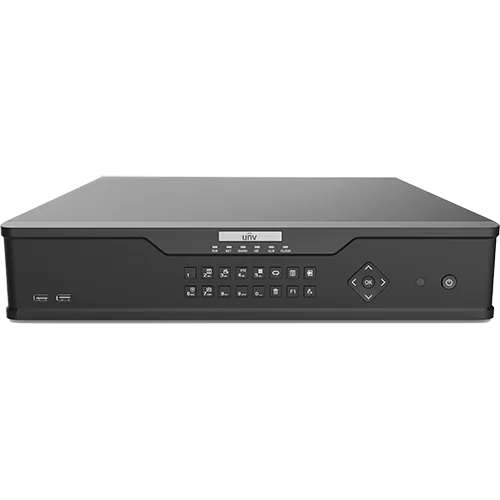

NVR308-64X

Discontinued – Replaced by NVR508-64E-R

64 CH | No PoE | 8xSATA w/RAID Support | H.265/H.264 | P2P | 2xHDMI/VGA w/Independent Layouts | 16/4 Alarm In/Out | Dual NIC | Up to 12MP

Category: Tags: , ,

Description

Features – 64 Ch Network Video Recorder

  • Support Ultra H.265/H.265/H.264 video formats
  • 16/32/64-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
  • HDMI1, HDMI2, VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support RAID 0, 1, 5, 6, 10
  • 8 SATA HDDs, Up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Support N+1 Hot spare
  • Support for 12V Power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Specification

Model NVR308-16X NVR308-32X NVR308-64X
Video/Audio Input
IP Video Input 16-ch 32-ch 64-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI1/HDMI2(HDMI audio output is not supported):
4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
Disk Array
Array Type RAID 0, 1, 5, 6, 10
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100~240 VAC
Power Consumption: ≤ 25 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 442mm ×426mm× 89mm (17.4″ × 16.8″× 3.5″)
Weight (without HDD) ≤ 5.7Kg (12.57lb)
