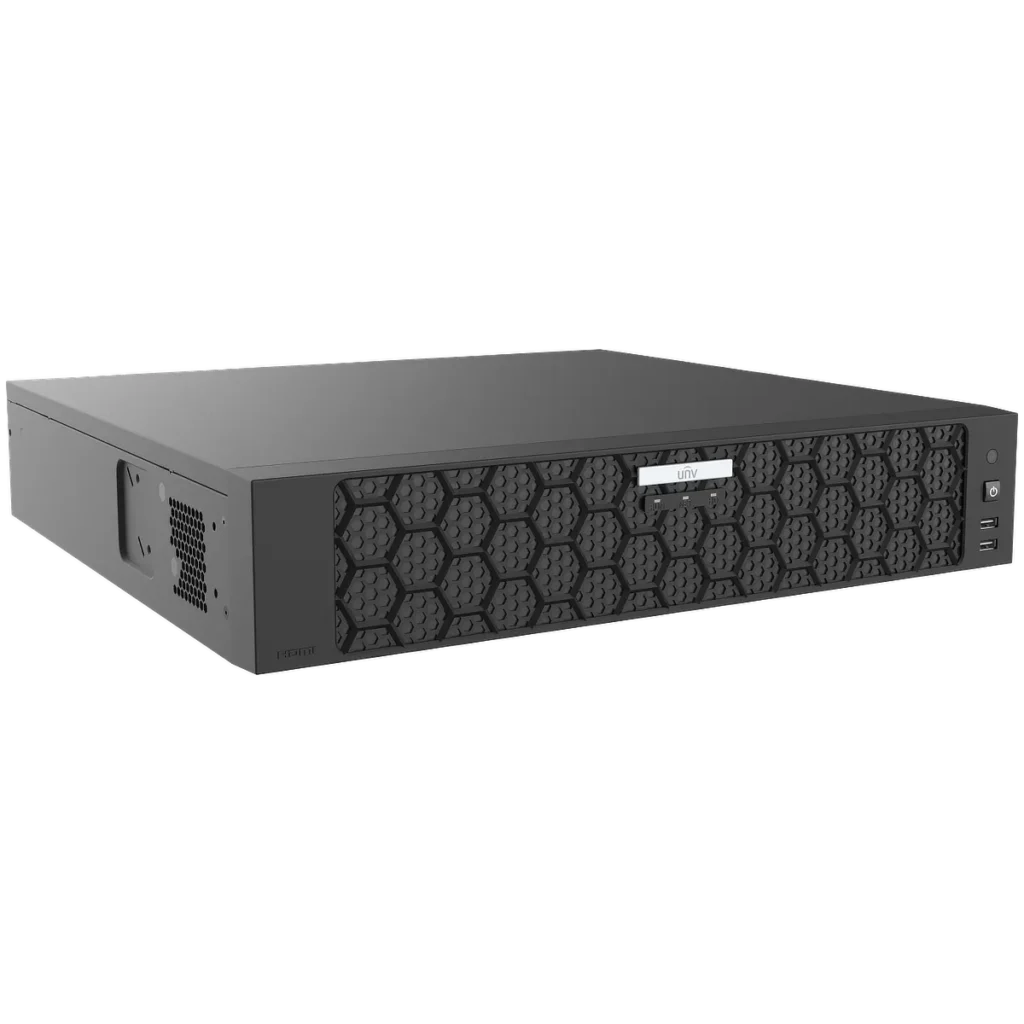

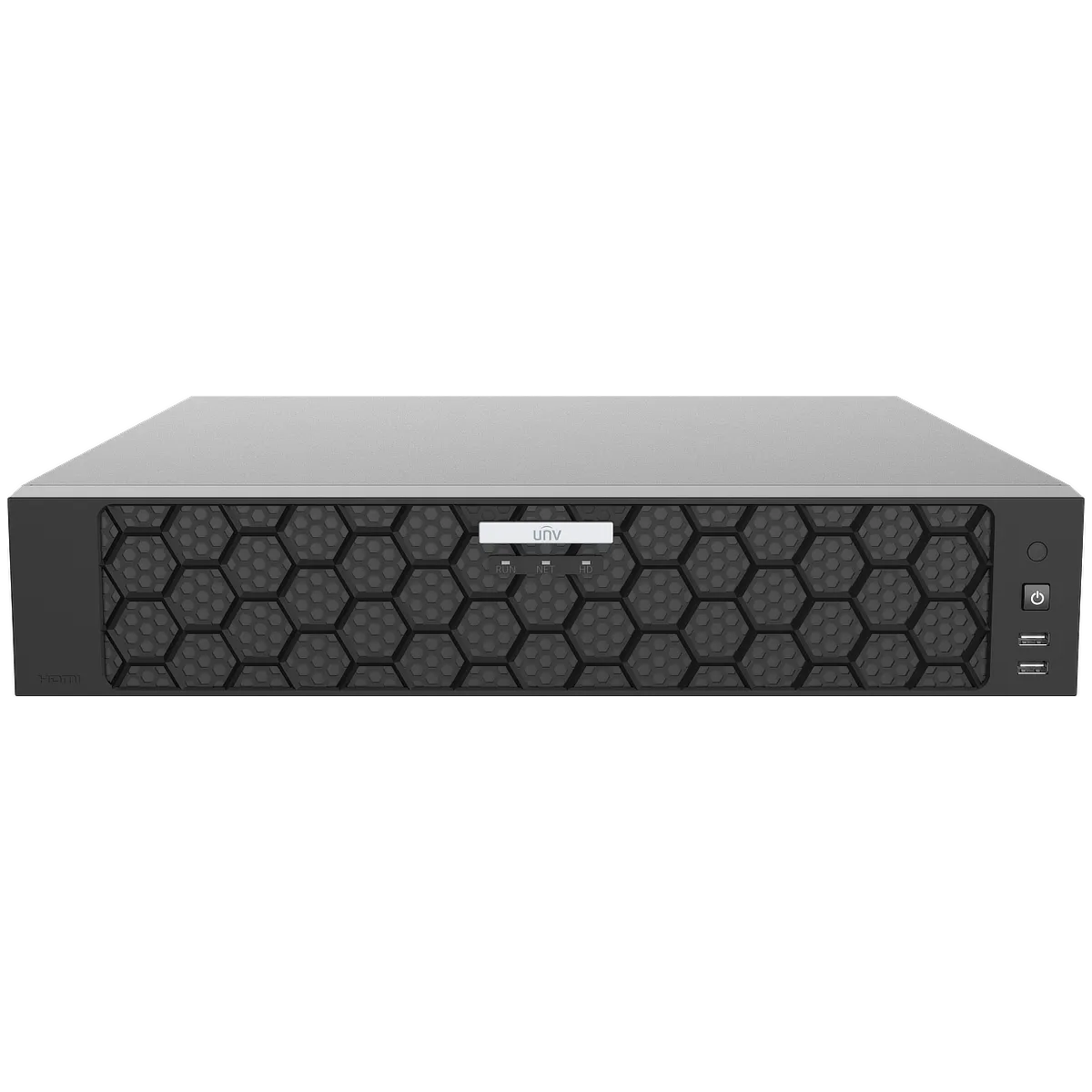

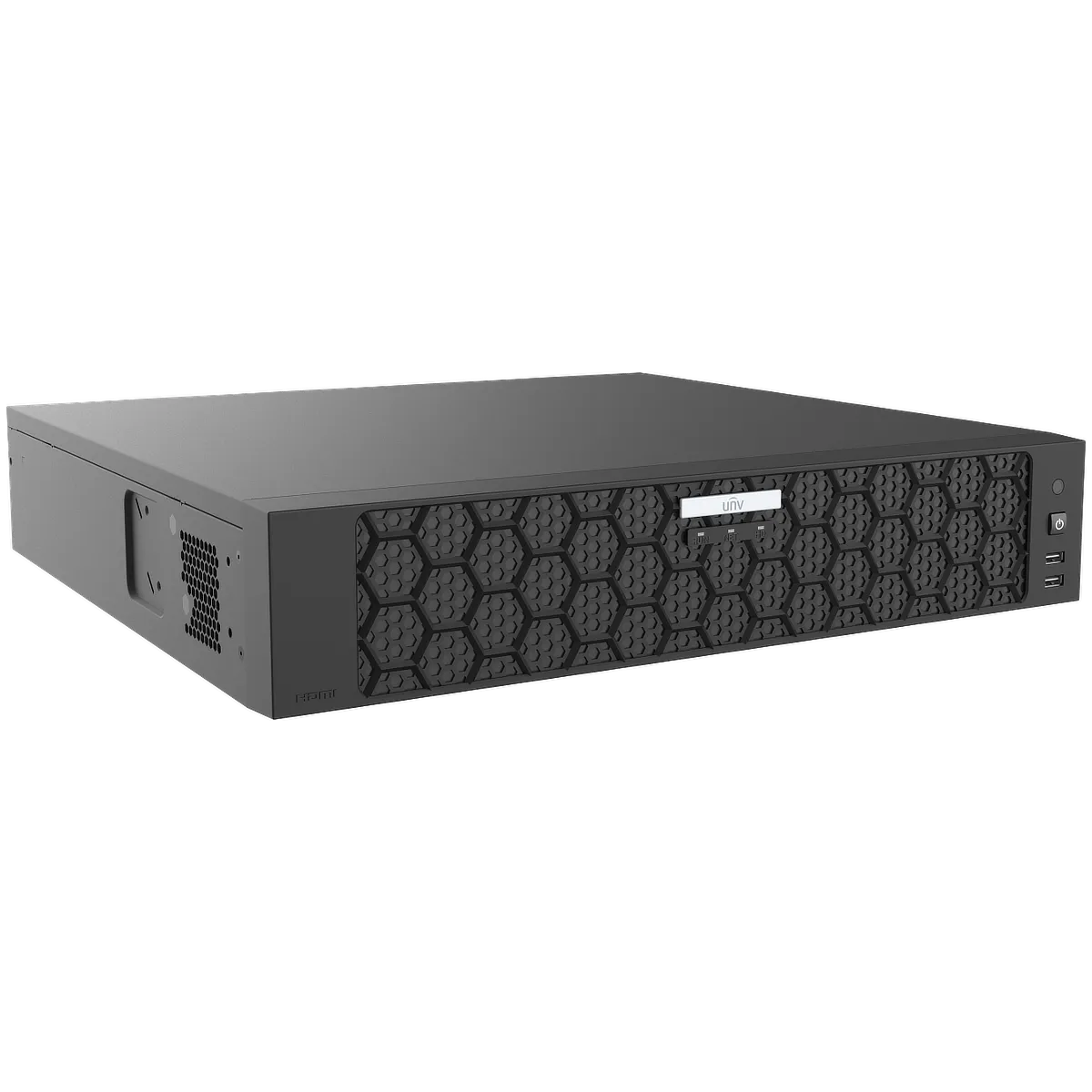

NVR504-32E-IQ

This is a professional 32-ch NVR from Uniview with advanced AI features, such as AcuSearch/AcuTrack and support for AI detection with third-party cameras. You can install up to four HDDs inside this NVR, and it supports RAID 0, 1, and 5. There are also two Ethernet ports, and the NVR takes up 2U of rack space.

Product Overview

The NVR504-32E-IQ is a professional, enterprise NVR from Uniview that supports up to 32 channels and has support for 32MP cameras. It comes with 4 HDD slots, with support for RAID 0, 1, and 5.

This NVR has two Ethernet ports, which can be set to either Multi-address, Load Balance, or Net Fault-tolerance mode. Since there are no PoE ports on this NVR, we recommend pairing it with one of our PoE switches – then connecting LAN 2 to the switch. You can connect LAN 1 to the modem for internet and cloud connectivity.

This NVR is NDAA Compliant, which can be verified on Uniview’s website:
https://global.uniview.com/News/News/NDAA/

Features – 4 HDDs 32-ch 2U Network Video Recorder

  • Support Ultra 265/H.265/H.264 video formats
  • Support 16/32/64-channel input
  • Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
  • Support ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Specification

Model NVR504-16E-IQ NVR504-32E-IQ NVR504-64E-IQ
Decoding
Decoding Format Ultra 265,H.265,H.264
Decoding Capability Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 16 x 3MP@30, 16 x 1080P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 16 x 1080P@30, 16 x 720P@30		 Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30		 Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30, 64 x D1
Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth Smart Off：384Mbps
Smart On：200Mbps
Outgoing Bandwidth Smart Off：384Mbps
Smart On：200Mbps
Max Remote Users 128
Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin) Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 16-ch 32-ch 64-ch
RCA Audio Input 1-ch
Peripheral Input
Ip Speaker 32-ch 32-ch 64-ch
POS All channels
Video/Audio Output
HDMI Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 2-ch
Liveview Display 1/4/6/8/9/16 HDMI1 and VGA1: 1/4/6/8/9/16/25/32;
HDMI2 and VGA2: 1/4/6/8/9/16		 HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64;
HDMI2 and VGA2: 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16 HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio 1-ch,RCA(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback 32-ch
Synchronous Playback in Local 16-ch
Smart Function
Smart by IPC All channels (up to 16 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting
Smart by NVR Face Detection, Face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode Mixed Mode (+AcuSearch/AcuTrack), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode can active at a time.
VCA Search AcuSearch, AcuTrack, , Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch
Acu Search Performance All channels with UNV SIP/UMD Camera
AcuTrack
Acu Track Performance All channels with UNV SIP/UMD Camera
face detection
face detection by NVR Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
Search by Image Support
SIP
SIP by NVR with normal cameras Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K)
UMD
UMD by NVR with normal cameras Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)
Plate Comparison
Vehicle Number Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
Capacity of Smart Snapshots
Capacity of Snapshot Records 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 4 SATA Interfaces
Capacity Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5
External Interface
Network Interface 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Network Working Mode Muli-access,load balance,network fault-tolerance
USB Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485 1
RS232 1
Alarm In 16-ch
Alarm Out 10-ch
eSATA 1
Power Output 12 V
Power Supply AC 100~240V
Working Environment
Working Temperature -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity ≤ 90% RH (non-condensing)
Power Consumption (without HDD) ≤ 35W
Dimensions
Weight (without HDD) ≤ 5.5Kg (12.1lb)
Height 2U
Dimensions 442mm × 432mm × 86mm (17.4″×17.0″×3.4″)
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
Compliance
NDAA Compliant Support
