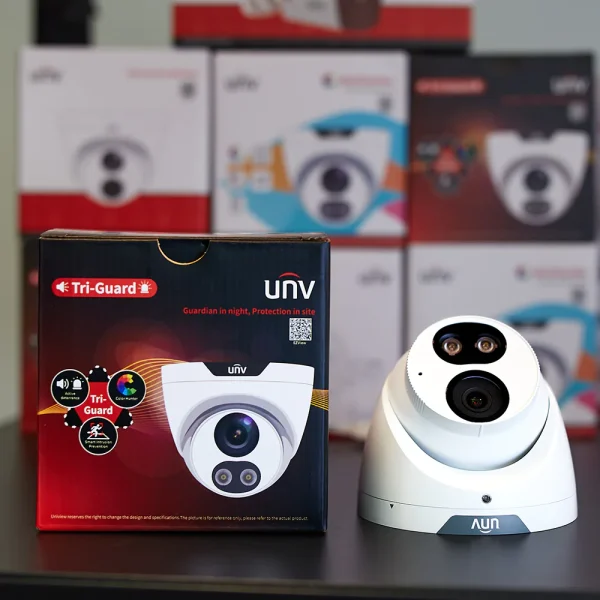

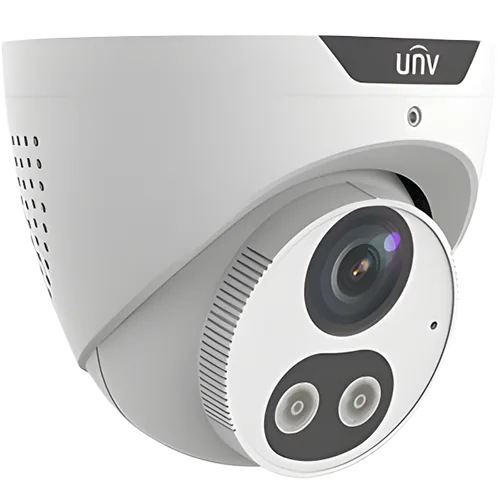

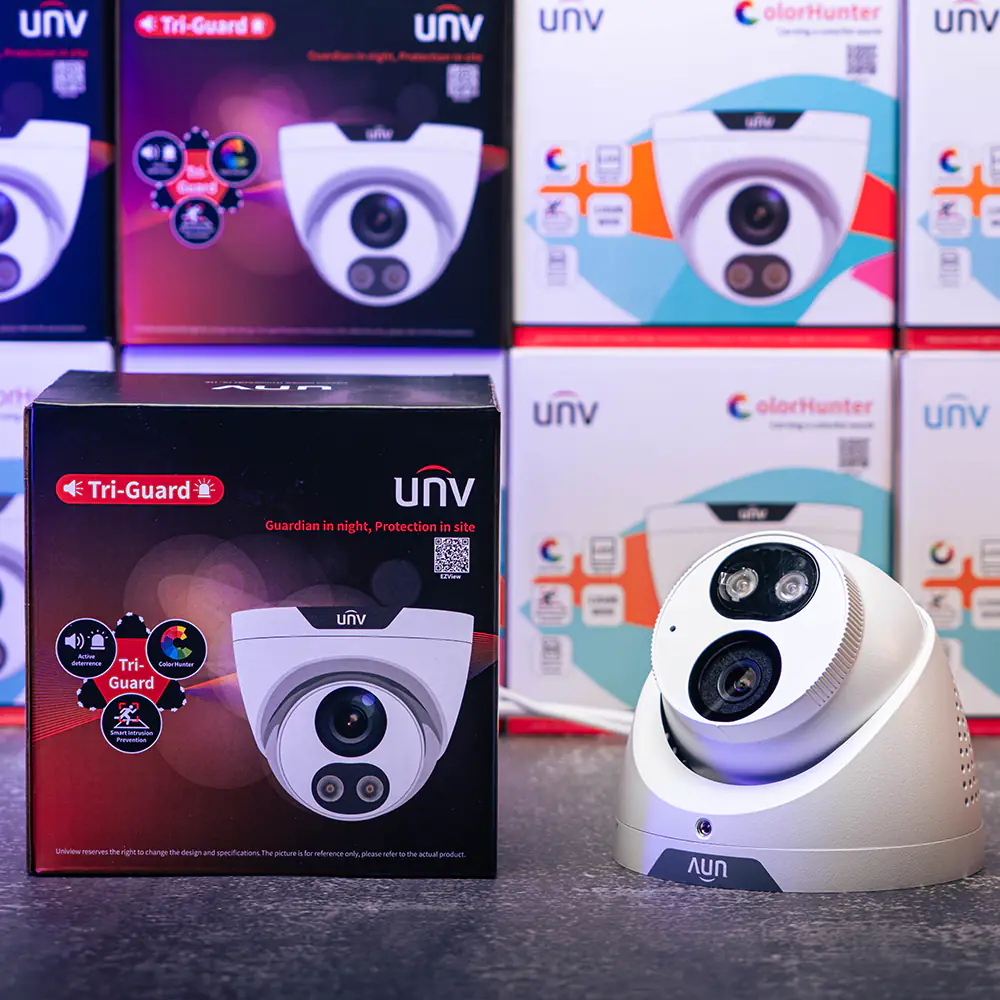

IPC3615SB-ADF28KMC-I0
5MP Tri-Guard Series Turret IP Camera, White Light up to 30m, IP67, MicroSD Slot, Built-in Mic + Speaker, Fixed 2.8mm lens
Description
Uniview IPC3615SB-ADF28KMC-I0 is a Tri-Guard series deterrence camera. A built-in speaker allows for warning messages to sound when a person enters the scene, while powerful warm LED lights illuminate the surrounding area. Featuring LightHunter Technology, the superior image sensor and wide aperture lens allows for clear image in low-light scenes. Additionally, built-in IR provides illumination up to 30m in very dark environments.
The 2.8mm lens provides a wider field of view with a slightly lower pixel density.
Features – 5MP HD Light and Audible Warning Fixed Eyeball
- High quality image with 5MP, 1/2.7″CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic and Speaker
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
Specification
| IPC3615SB-ADF28KMC-I0 | IPC3615SB-ADF40KMC-I0 | ||||||||
| Camera | |||||||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >56dB | ||||||||
| Lens | |||||||||
| Lens type | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| Angle of view(H) | 101.1° | 83.7° | |||||||
| Angle of View (V) | 55.3° | 44.9° | |||||||
| Angle of View (O) | 111.1° | 89.2° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
| Illuminator | |||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Support | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Triple streams | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Defog | Digital Defog | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way audio | Supported | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T) , API,SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive |
||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| RS485 | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | Support | ||||||||
| WIFI | N/A | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Certifications | |||||||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
||||||||
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
||||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 7.5W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (Ø x H) | Φ111 x 95mm (Φ4.4” x 3.7”) | ||||||||
| Weight | 0.43kg (0.948lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Storage Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | N/A | ||||||||
| Protection | Ingression protection: IP67 | ||||||||
