NVR824-256R

256 CH | No PoE | 24xSATA w/RAID Support | H.265/H.264 | P2P | 2xHDMI/VGA w/Independent Layouts | 24/8 Alarm In/Out | Quad NIC | Up to 12MP

In stock

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

3-year Uniview warrantyWarranty & returns
Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5
Categories: Uniview NVRTags: 128CH+, IP NVR, ProSeries

Product Overview

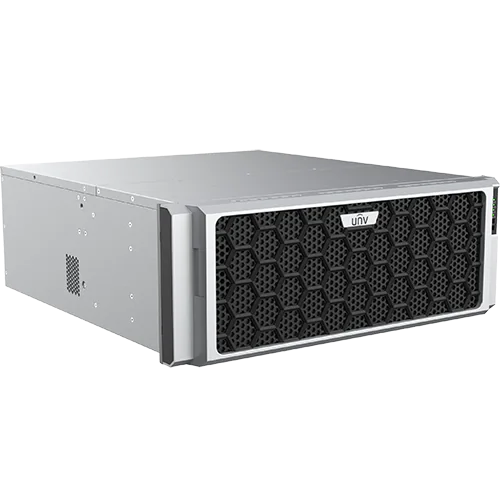

The NVR824-256R is one of the most powerful video recording servers made by Uniview. Capable of recording up to 256 IP Cameras simultaneously, this NVR is built for commercial projects and condominium buildings. Additionally, this unit has four separate Gigabit NIC ports for supporting a massive network of security cameras.

Up to 24 hard drives can be installed in this NVR; they can be hot-swapped via the removable front cover.

Features – 256 Channel 24 HDDs RAID NVR

  • 256-channel IP video input, up to 12MP recording resolution
  • Ultra 265, H.265 and H.264 video formats
  • 2 HDMI (up to 4K) and 1 VGA, all with independent output
  • 24 SATA bays, up to 16 TB per drive, hot-swappable
  • RAID 0, 1, 5, 6, 10, 50 and 60, with N+1 hot spare
  • 2 miniSAS interfaces for expansion disk enclosures
  • 4 Gigabit network ports, 768 Mbps incoming bandwidth and up to 128 remote users
  • 24 alarm inputs, 8 alarm outputs, eSATA and 12 V power output
  • Optional redundant power supply
  • ANR technology to protect recordings when the network is disconnected
  • ONVIF compatible and NDAA compliant

NVR824-256R vs. NVR516-128E-R – Which Enterprise NVR Do You Need?

The NVR824-256R and the NVR516-128E-R both have hot-swappable drives, RAID 0 to 60, N+1 hot spare and an optional redundant power supply. The main differences are capacity and resolution:

  • Camera channels: 256 (NVR824) vs. 128 (NVR516)
  • Max recording resolution: 12MP (NVR824) vs. 32MP (NVR516)
  • Hard drive bays: 24, up to 384 TB total, plus 2 miniSAS ports for expansion enclosures (NVR824) vs. 16, up to 256 TB total (NVR516)
  • Network ports: 4 Gigabit (NVR824) vs. 2 Gigabit (NVR516)
  • Incoming bandwidth: 768 Mbps (NVR824) vs. 640 Mbps (NVR516)
  • HDMI outputs: 2, up to 4K (NVR824) vs. 2, with HDMI1 up to 8K (NVR516)
  • Size: 484.6 × 533 × 175.5 mm, 4U (NVR824) vs. 482 × 533 × 131 mm, 3U (NVR516)

Choose the NVR824-256R for the largest projects, with up to 256 cameras and room to add disk enclosures. Choose the NVR516-128E-R for up to 128 cameras, or when you need to record 16MP and 32MP cameras.

Specification

Decoding Description
DecodingFormat Ultra 265, H.265, H.264
DecodingCapability 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
AudioCompression G.711A, G.711U
Network Description
IncomingBandwidth 768Mbps
OutgoingBandwidth 768Mbps
RemoteUsers 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput Description
IPVideoInput NVR824‑128R:128‑ch NVR824‑256R:256‑ch
RCAAudioInput 1‑ch
Video/AudioOutput Description
HDMIOutput HDMI1/HDMI2:4K(3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGAOutput VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
RCAAudioOutput 1‑ch
LiveviewDisplay VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
CorridorModeScreen 3/4/5/7/9/10/12/16/32
Two-wayAudio Description
Two-wayAudio 1‑ch, RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/EventSnapshot 128‑ch snapshot, up to 4K resolution
Recording Description
RecordingResolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal 16‑ch
Smart Description
VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
SmartbyNVR In the Smart Card datasheet
VCASearch Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC All channels (up to 64 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VehiclePictureLibrary Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIPbyNVR In the Smart Card datasheet
CapacityofSnapshotRecords 5 millions records for face snapshot; 5 millions records for vehicle snapshot;2 millions records for SIP
Alarm Description
GeneralAlarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded
HardDisk Description
SATA 24 SATA interfaces
Capacity Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskArrayType RAID 0, 1, 5, 6, 10, 50, 60
HotSwap Support
ExternalInterface Description
NetworkInterface 4 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
RS485 1
RS232 1
AlarmIn 24‑ch
AlarmOut 8‑ch
eSATA 1
miniSAS 2
Extensionboard 4
PowerOutput 12V
PowerSupply AC 100 ～ 240 V
PowerSwitch Support
RedundantPowerSupply Support
WorkingEnvironment Description
WorkingTemperature ‑10 °C ~ 50 °C (14 °F ~ 122 °F)
WorkingHumidity ≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD) ≤ 70W
Dimensions Description
Weight(withoutHDD) ≤ 12.5Kg (27.56lb)
Dimensions 484.6mm × 533mm × 175.5mm (19.1″×21.0″×6.9″)
Certification Description
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B
